Reassembly

AA80E AUTOMATIC TRANSMISSION / TRANSAXLE: SHIFT LEVER: REASSEMBLY

REASSEMBLY

1. INSTALL SHIFT LOCK CONTROL ECU SUB-ASSEMBLY

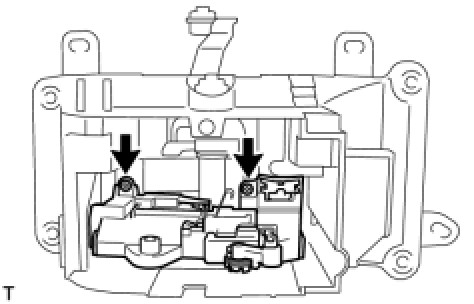

(a) Install the shift lock control ECU sub-assembly with the 2 screws.

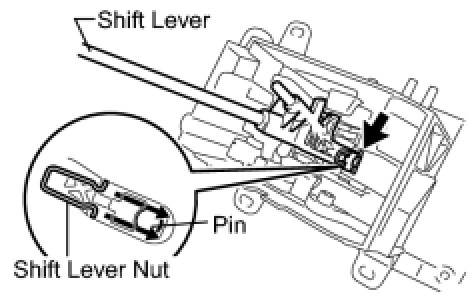

(b) Install the shift lever with the pin and shift lever nut.
2. INSTALL TRANSMISSION CONTROL SWITCH Installation
3. INSTALL SHIFT POSITION INDICATOR





(a) Install the shift position indicator to the console panel upper with the 4 screws.
