Problem Symptoms Table

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE
HINT:
- Use the following table to help determine the cause of a problem. The likely causes of the problem are indicated in descending order. Check each suspected area in order. Repair or replace faulty parts or perform adjustments as necessary.
- Inspect the fuses and relays related to this system before inspecting the suspected areas below.

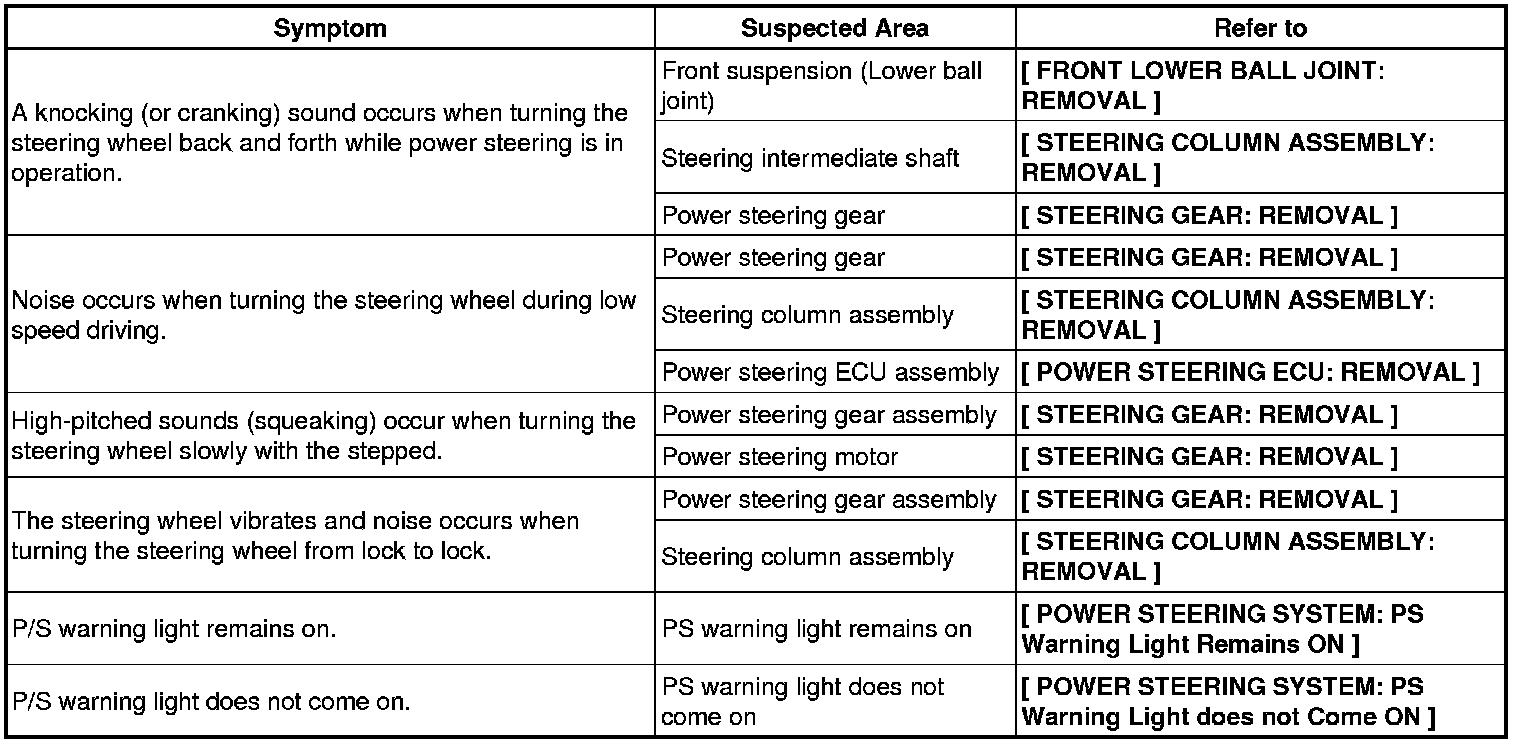

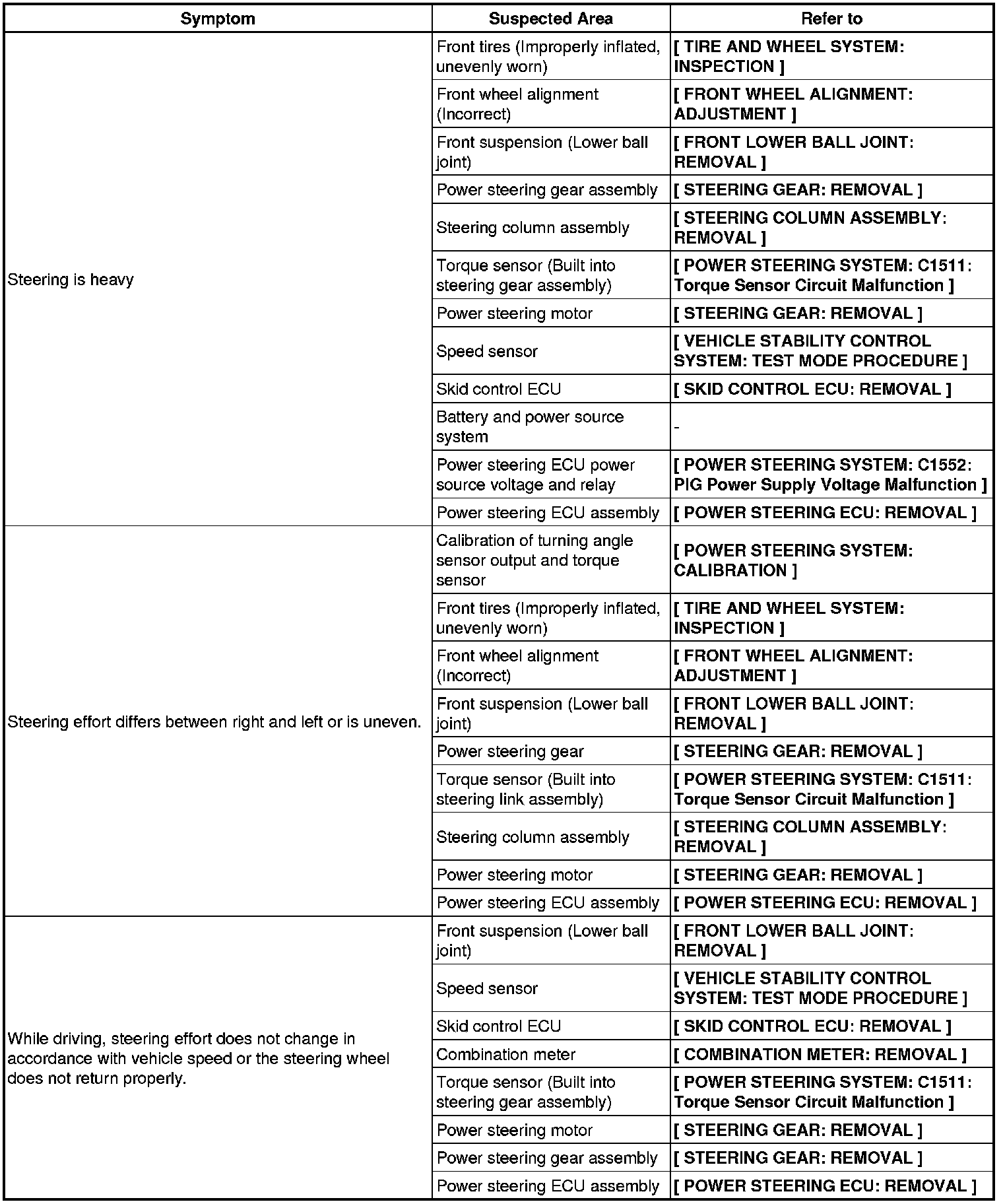

Power Steering System
