Freeze Frame Data

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: FREEZE FRAME DATA

FREEZE FRAME DATA

1. FREEZE FRAME DATA
(a) Turn the engine switch off.
(b) Connect the Techstream to the DLC3.
(c) Turn the engine switch on (IG).
(d) Turn the Techstream on.
(e) Check the freeze frame data. Enter the following menus: Chassis / Tilt&Telescopic / Trouble Codes.

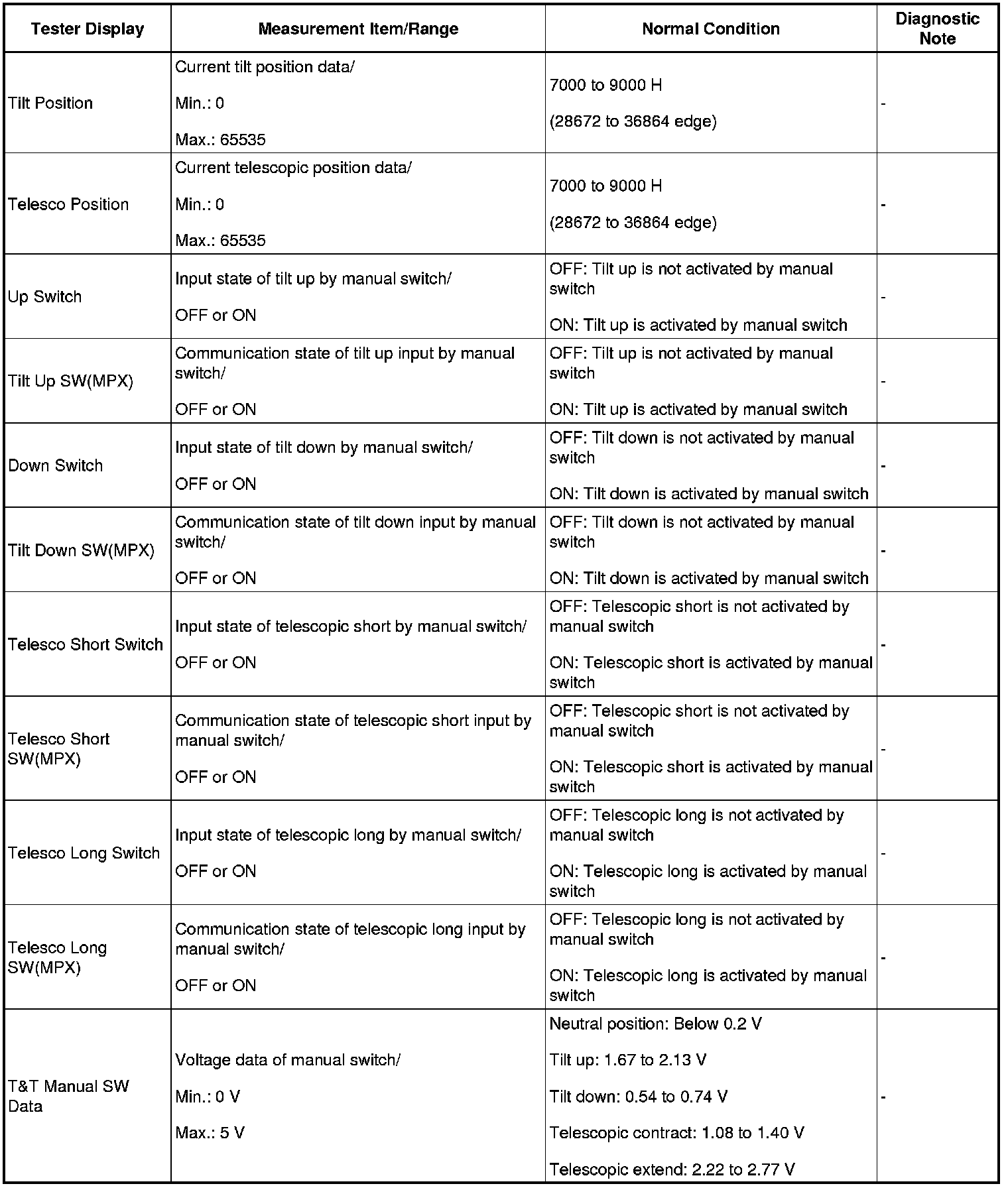

Tilt&Telescopic
