How To Proceed With Troubleshooting

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT: *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.

2. CHECK MULTIPLEX COMMUNICATION SYSTEM
NEXT -- Continue to next step.

3. CHECK AND CLEAR DTCS*
(a) Refer to DTC Check / Clear Reading and Clearing Diagnostic Trouble Codes.
NEXT -- Continue to next step.

4. PROBLEM SYMPTOM CONFIRMATION

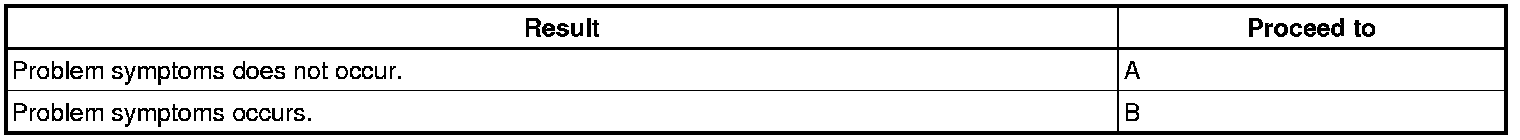

Result:






B -- Go to step 6
A -- Continue to next step.

5. SYMPTOM SIMULATION
NEXT -- Continue to next step.

6. CHECK FOR DTCs*
(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

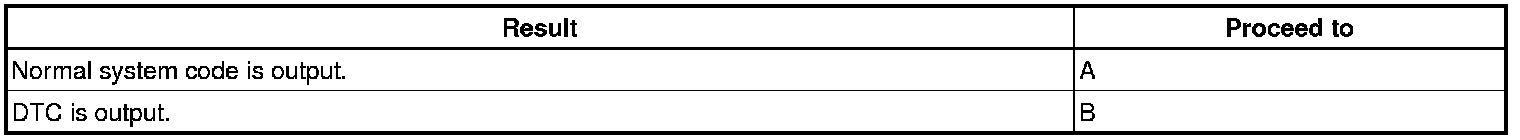

Result:






B -- Go to step 8
A -- Continue to next step.

7. PROBLEM SYMPTOMS TABLE
-- Go to step 9
8. DTC CHART
NEXT -- Continue to next step.

9. CIRCUIT INSPECTION*
NEXT -- Continue to next step.

10. IDENTIFICATION OF PROBLEM
NEXT -- Continue to next step.

11. REPAIR
NEXT -- Continue to next step.

12. CONFIRMATION TEST*
NEXT -- END
