Pinout Values and Diagnostic Parameters

STEERING COLUMN: STEERING LOCK SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

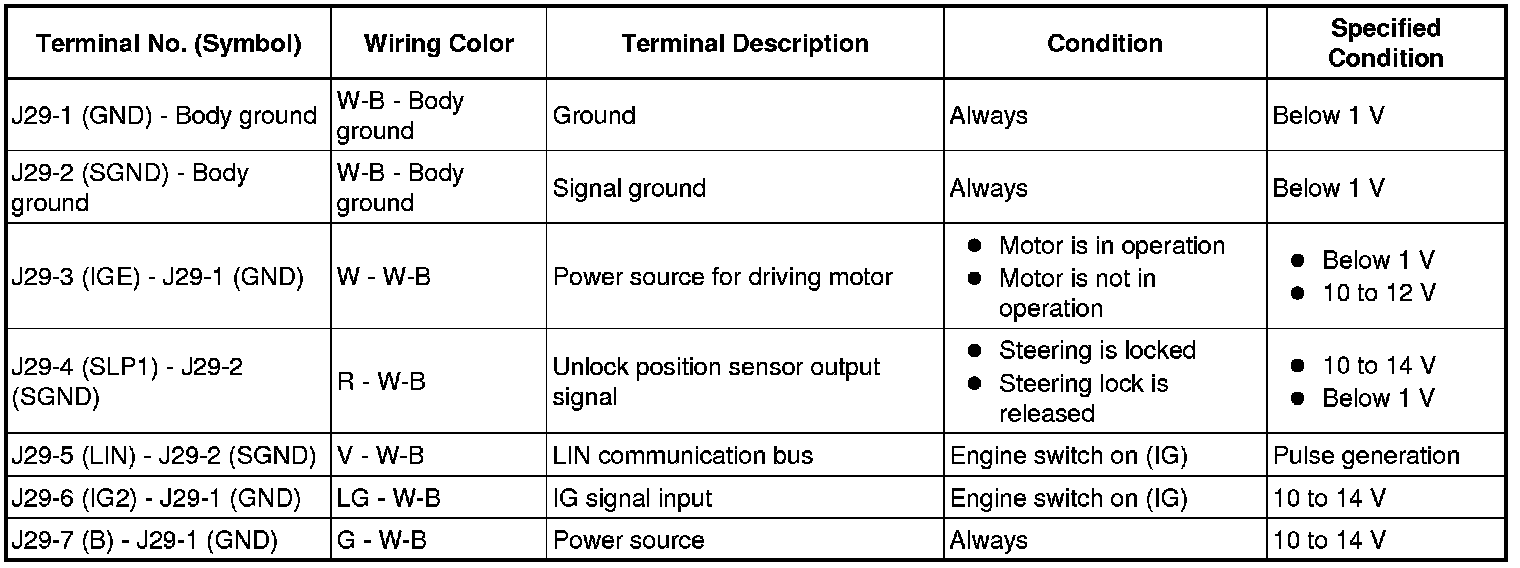

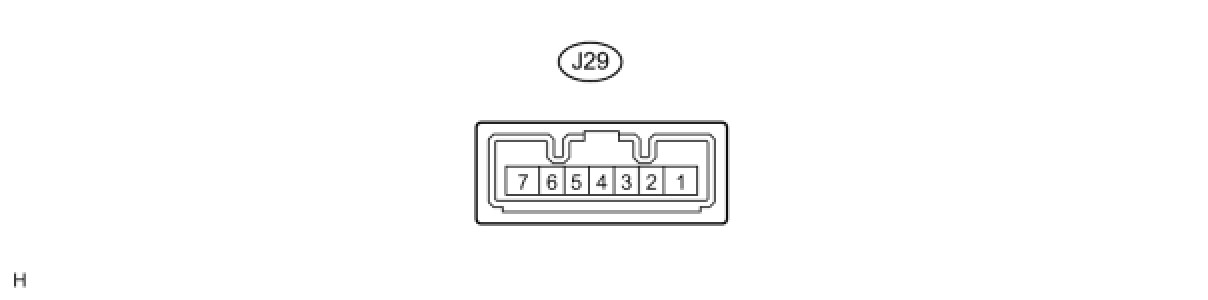

1. STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)
