Reassembly








STEERING COLUMN: STEERING COLUMN ASSEMBLY: REASSEMBLY

REASSEMBLY

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU Installation
2. INSTALL STEERING LOCK ACTUATOR ASSEMBLY

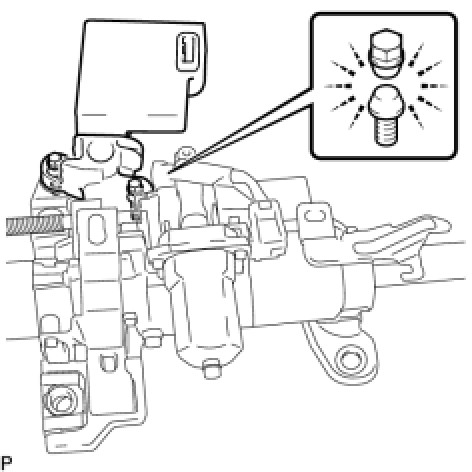

(a) Temporarily install the steering lock actuator assembly to the steering column assembly with 2 new tapered-head bolts.
(b) Tighten the 2 tapered-head bolts until the bolt heads break off.
