Starting System: Description and Operation

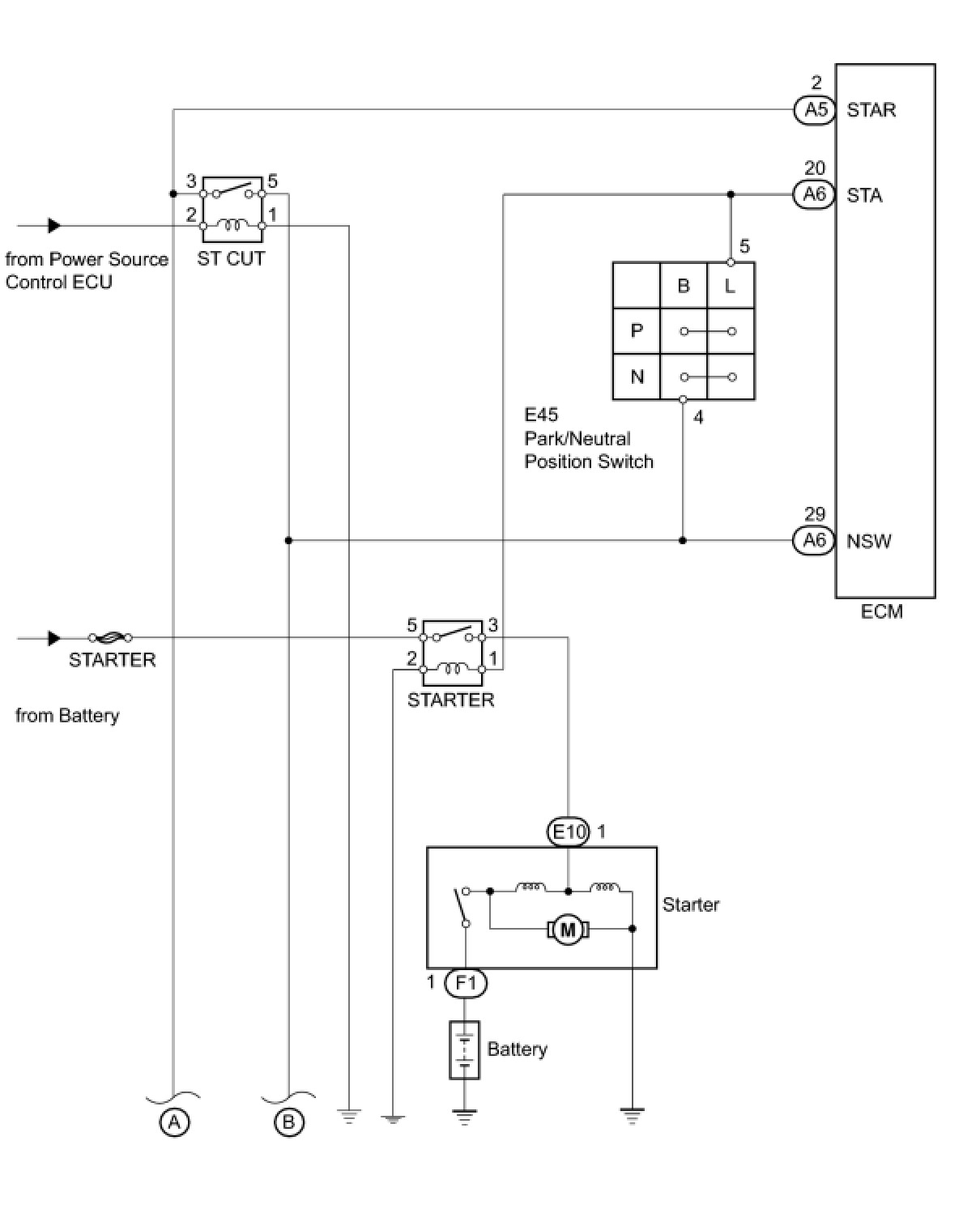

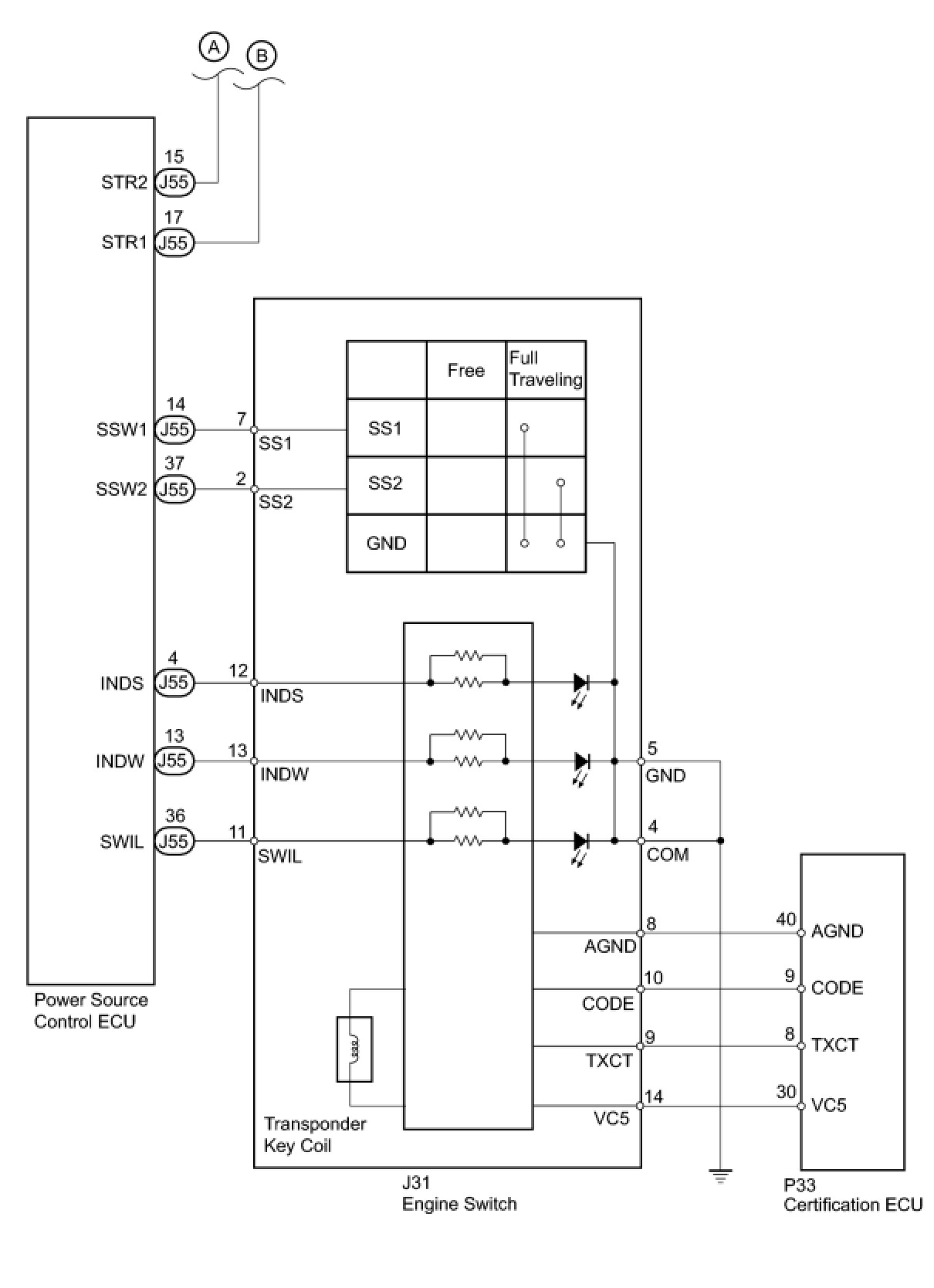

2UR-GSE STARTING: STARTING SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
