Fuse: Application and ID

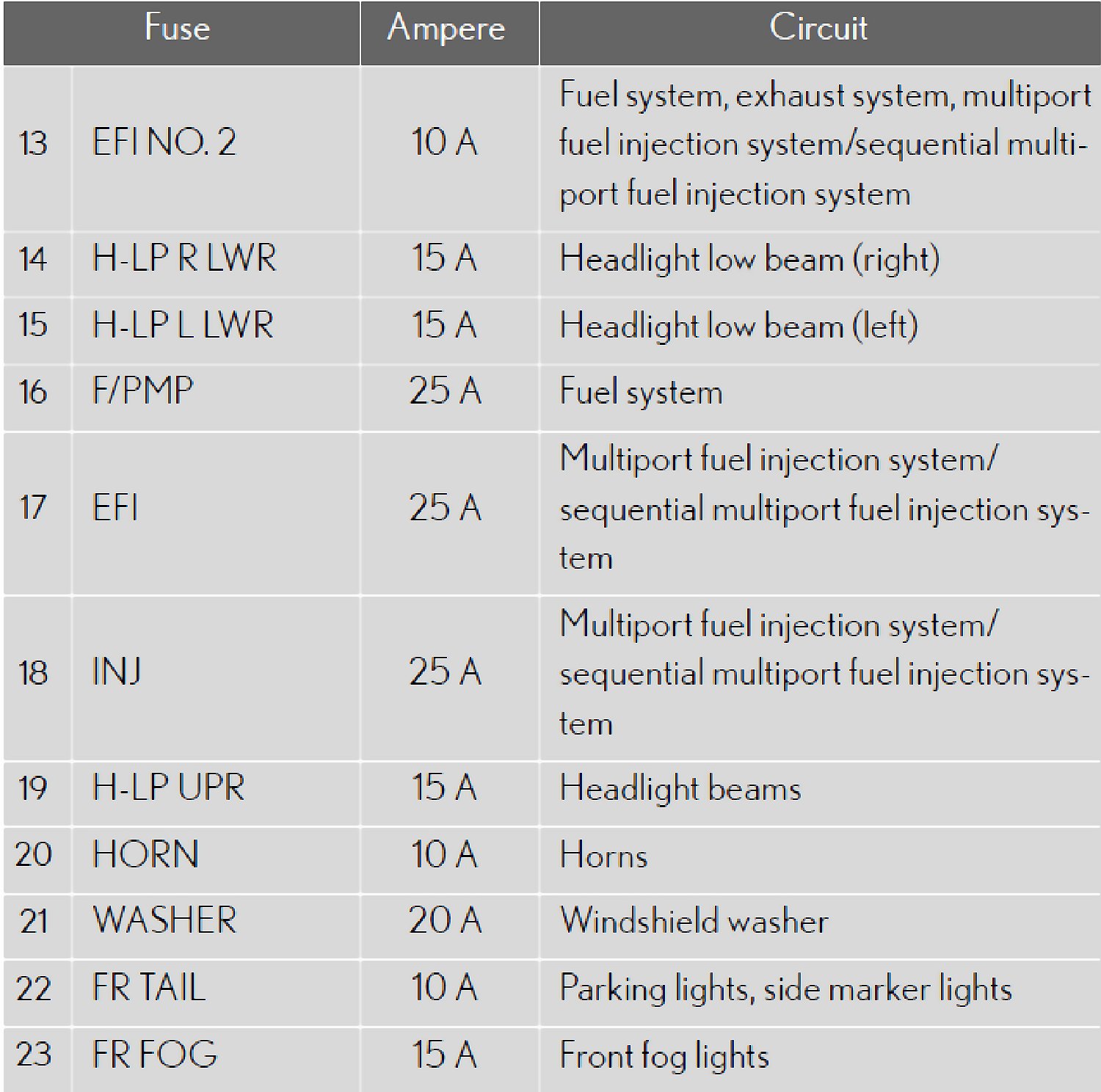

Fuse Layout and Amperage Ratings

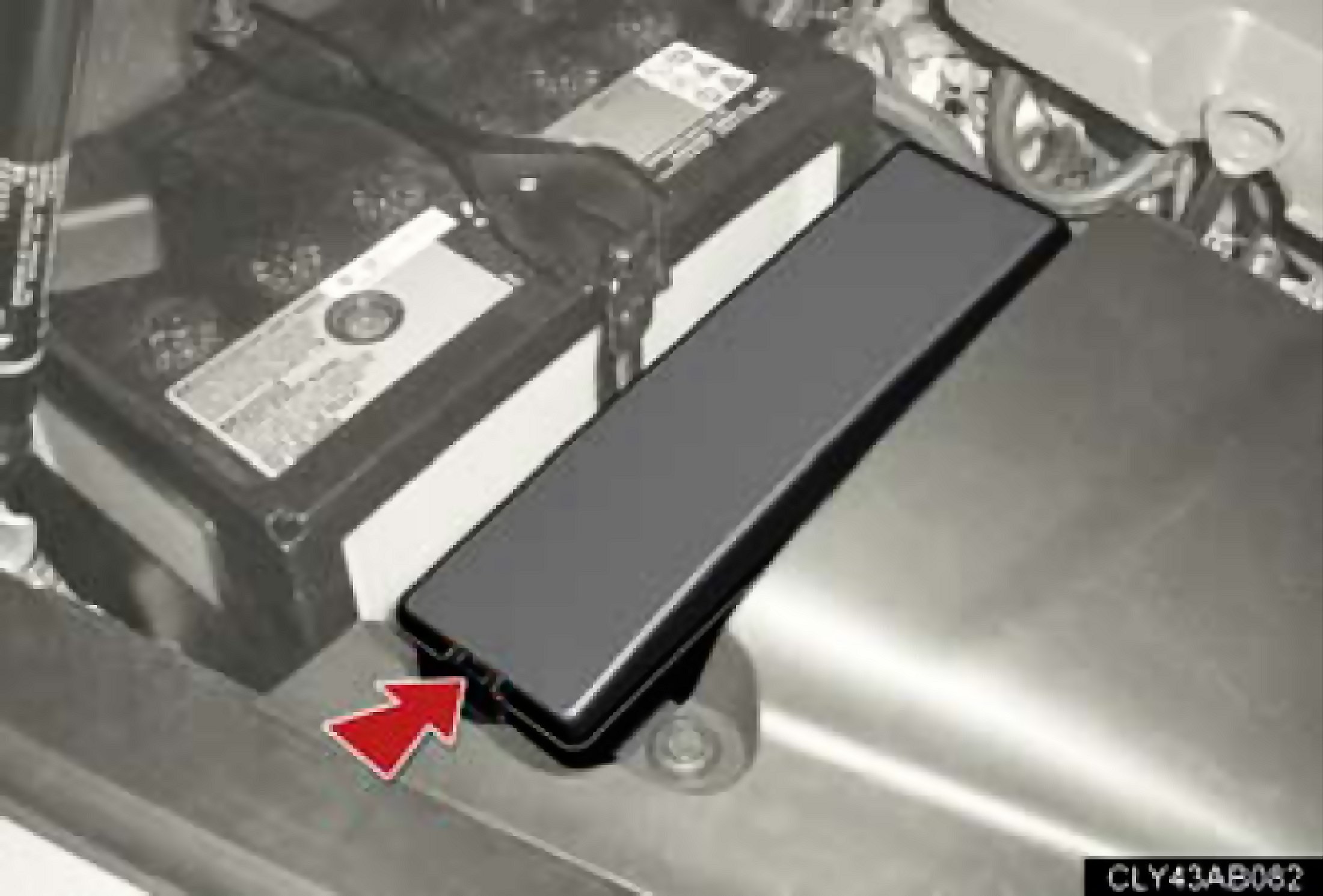

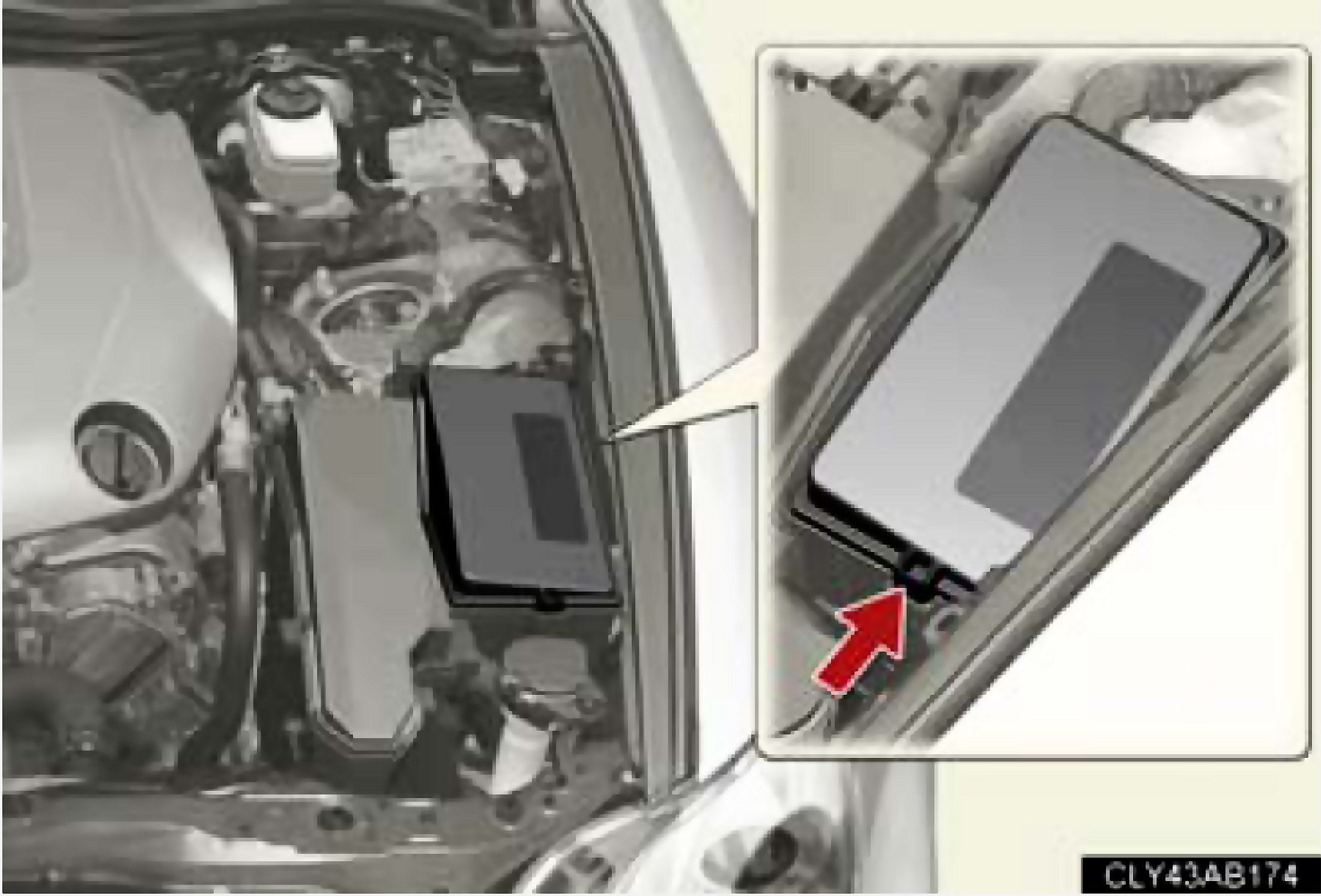

Fuse Block Location - Engine Compartment (Type A):

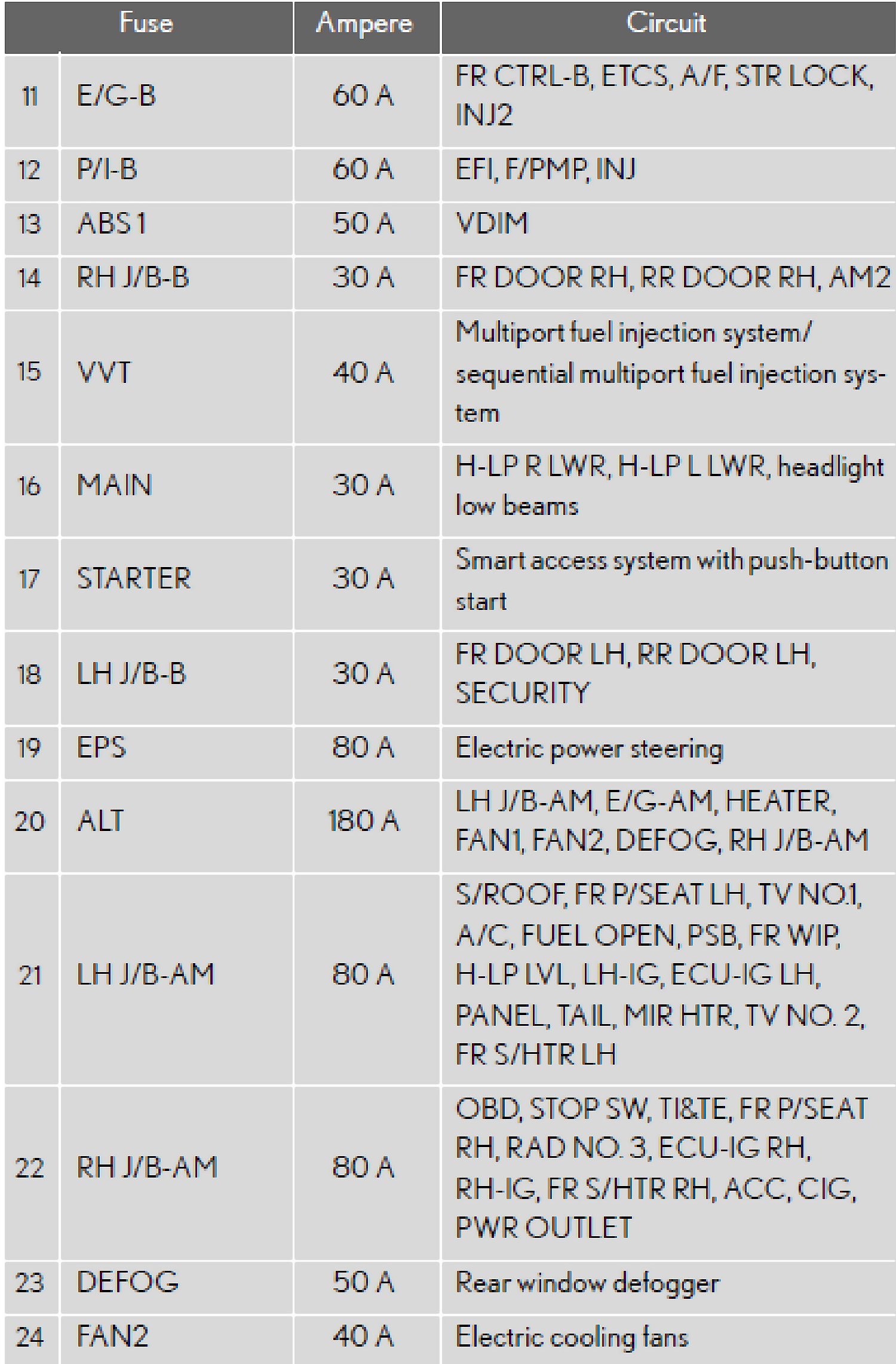

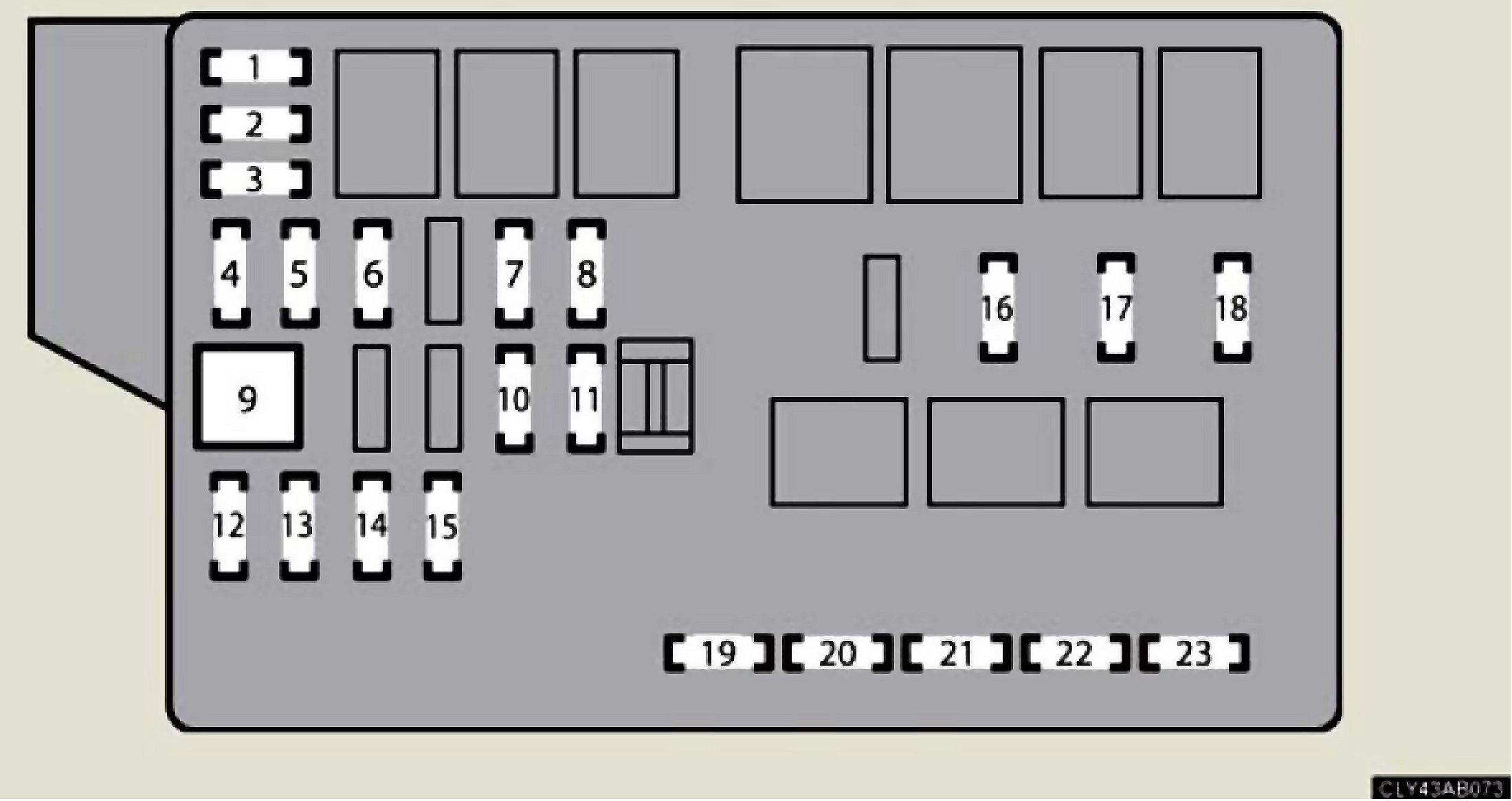

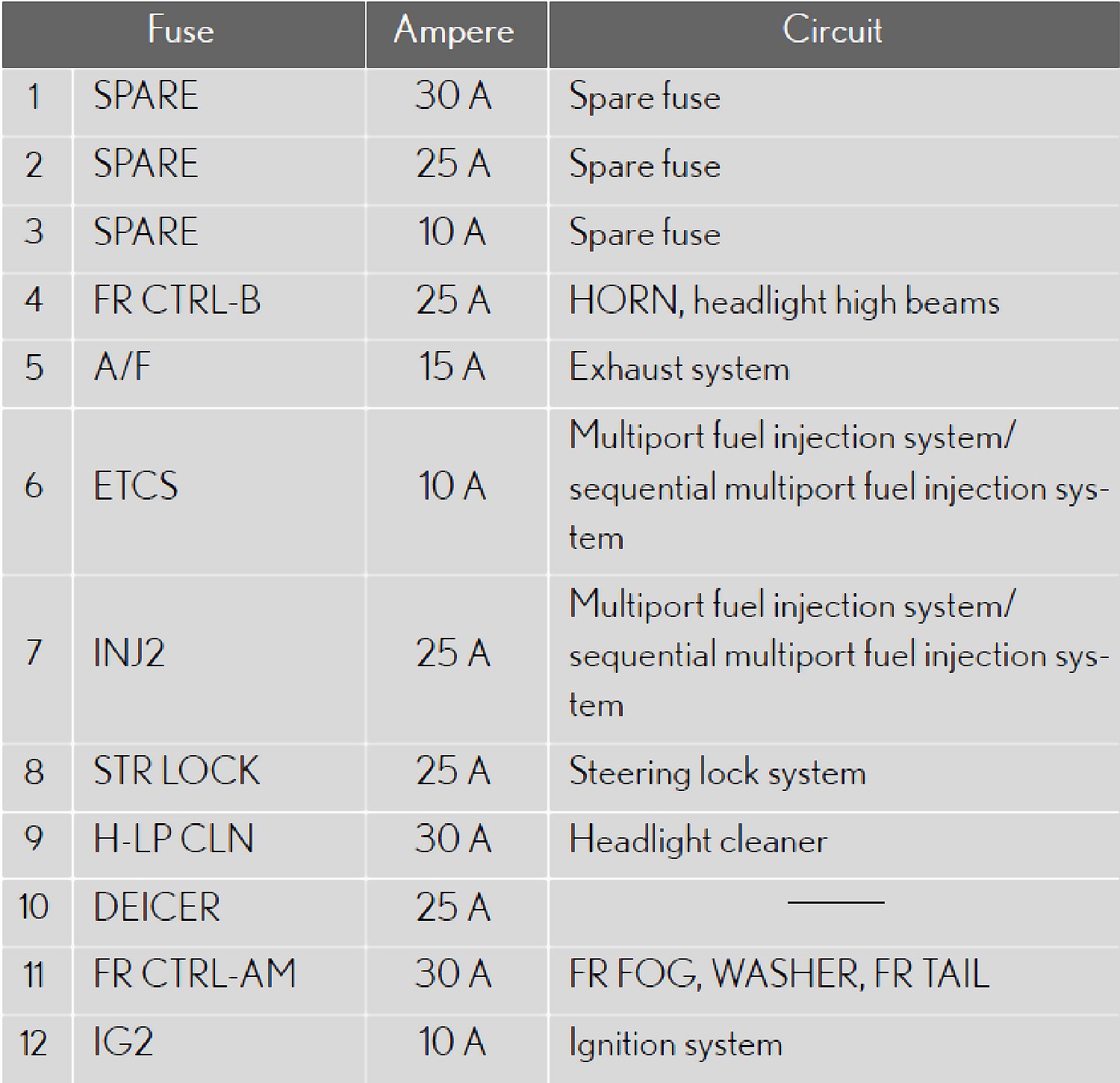

Fuse Location - Engine Compartment (Type A):


















Fuse Block Location - Engine Compartment (Type B):

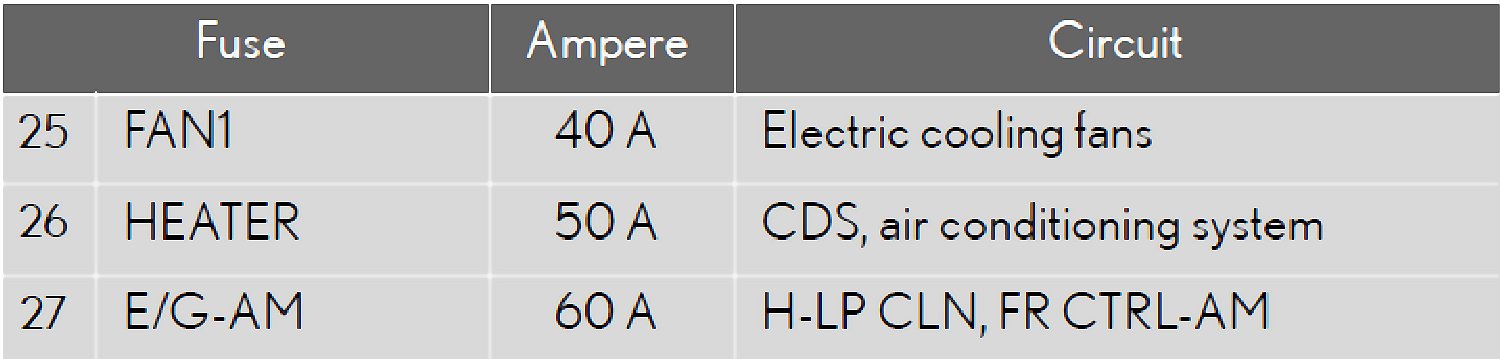

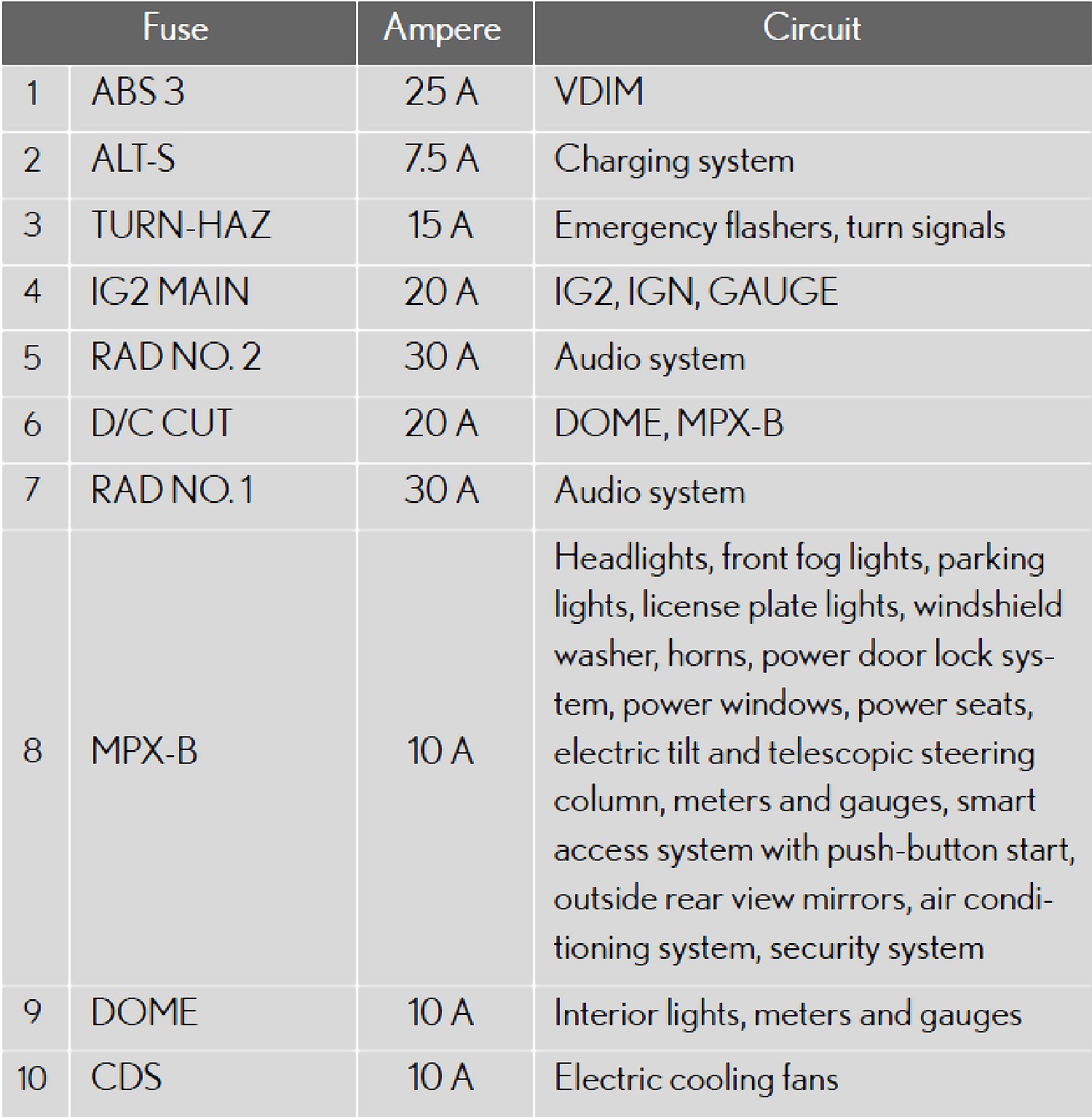

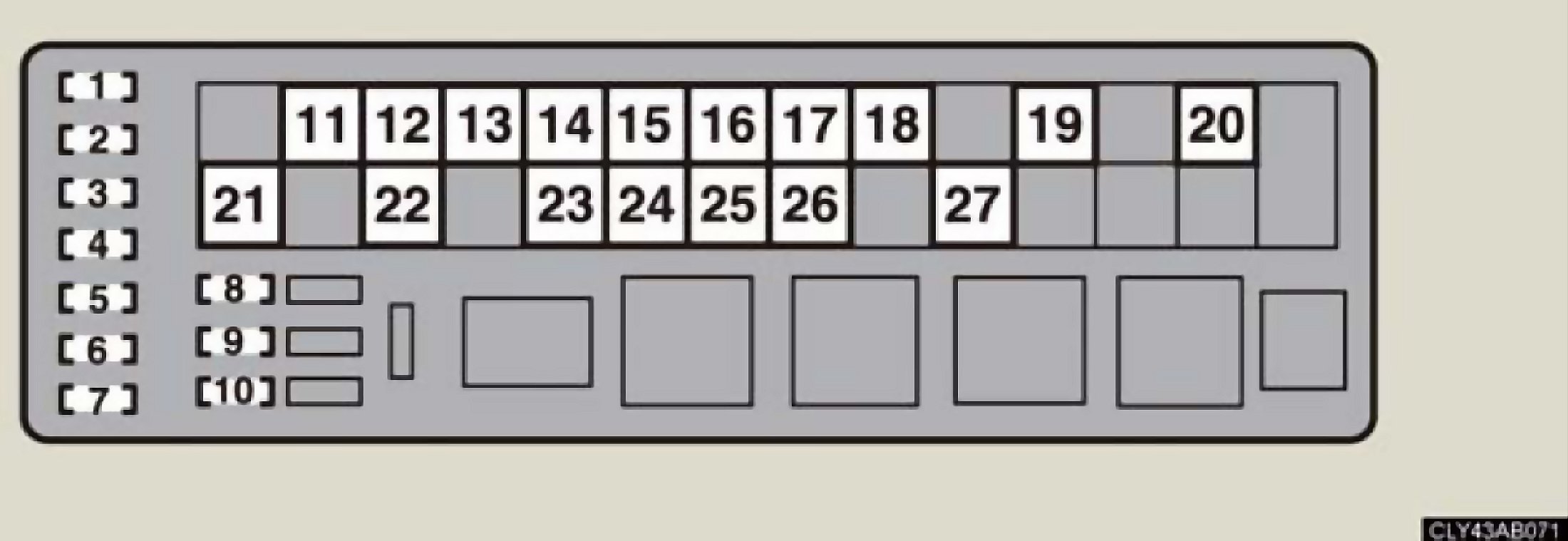

Fuse Location - Engine Compartment (Type B):

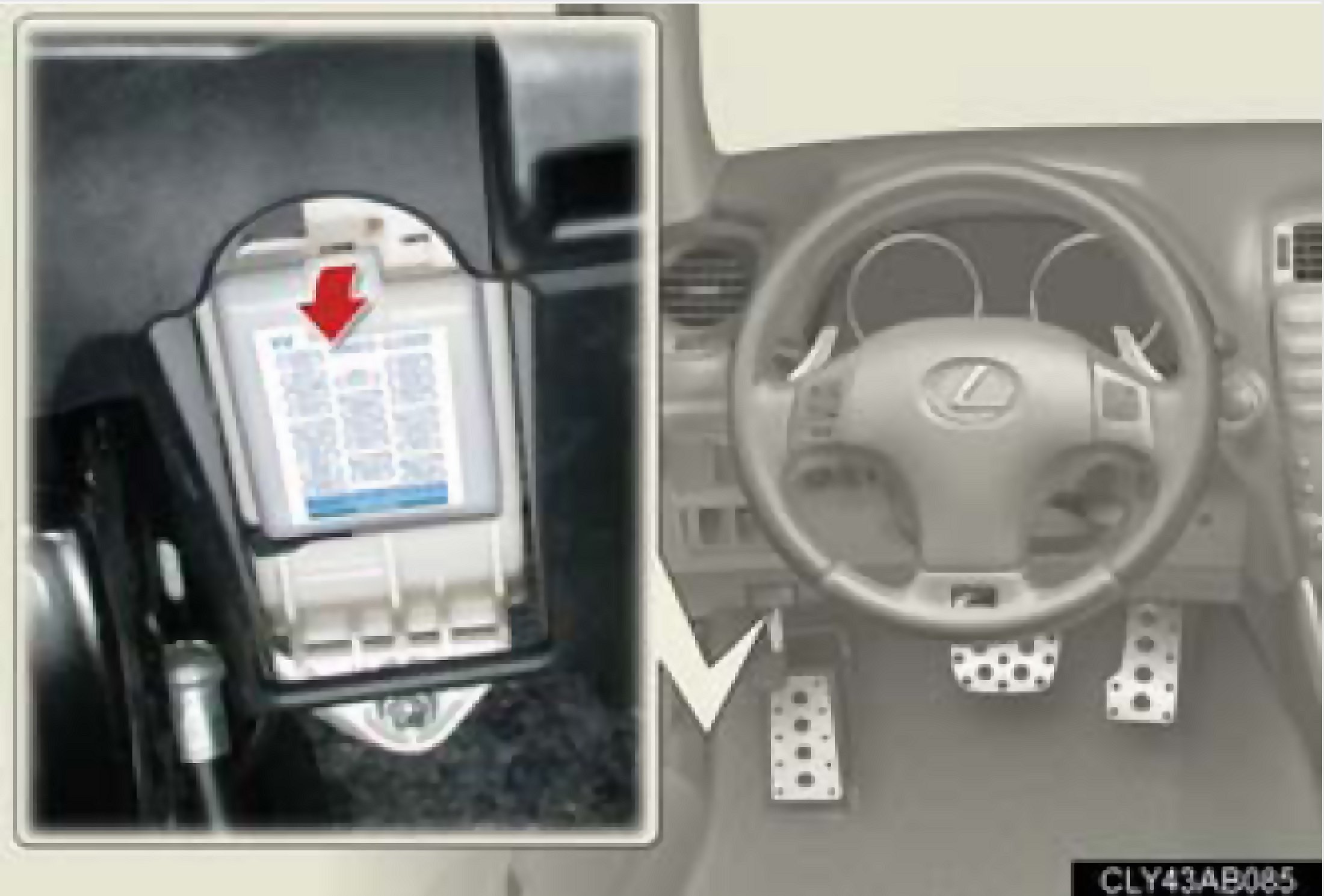

Fuse Block Location - Driver's Side Instrument Panel:

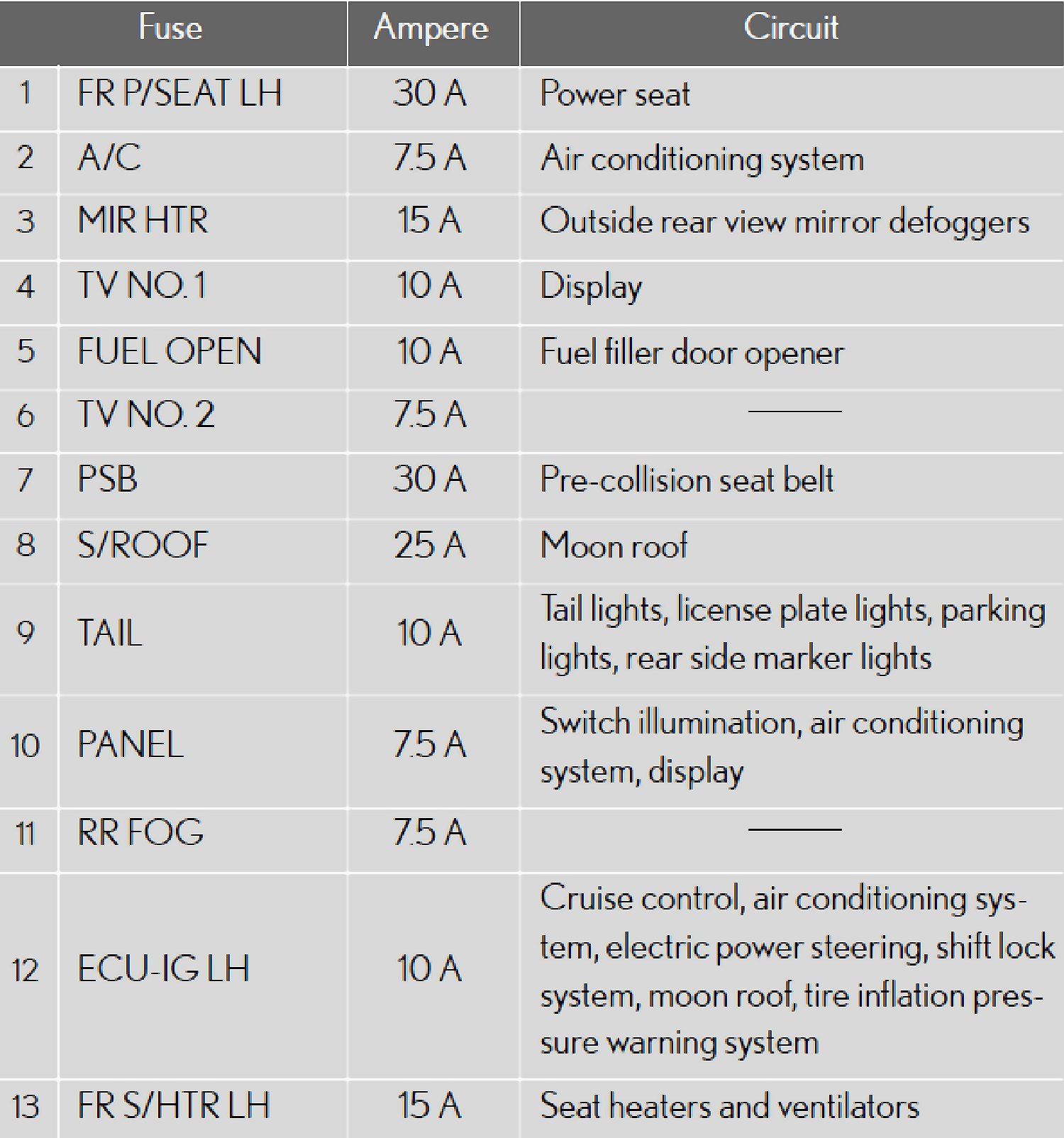

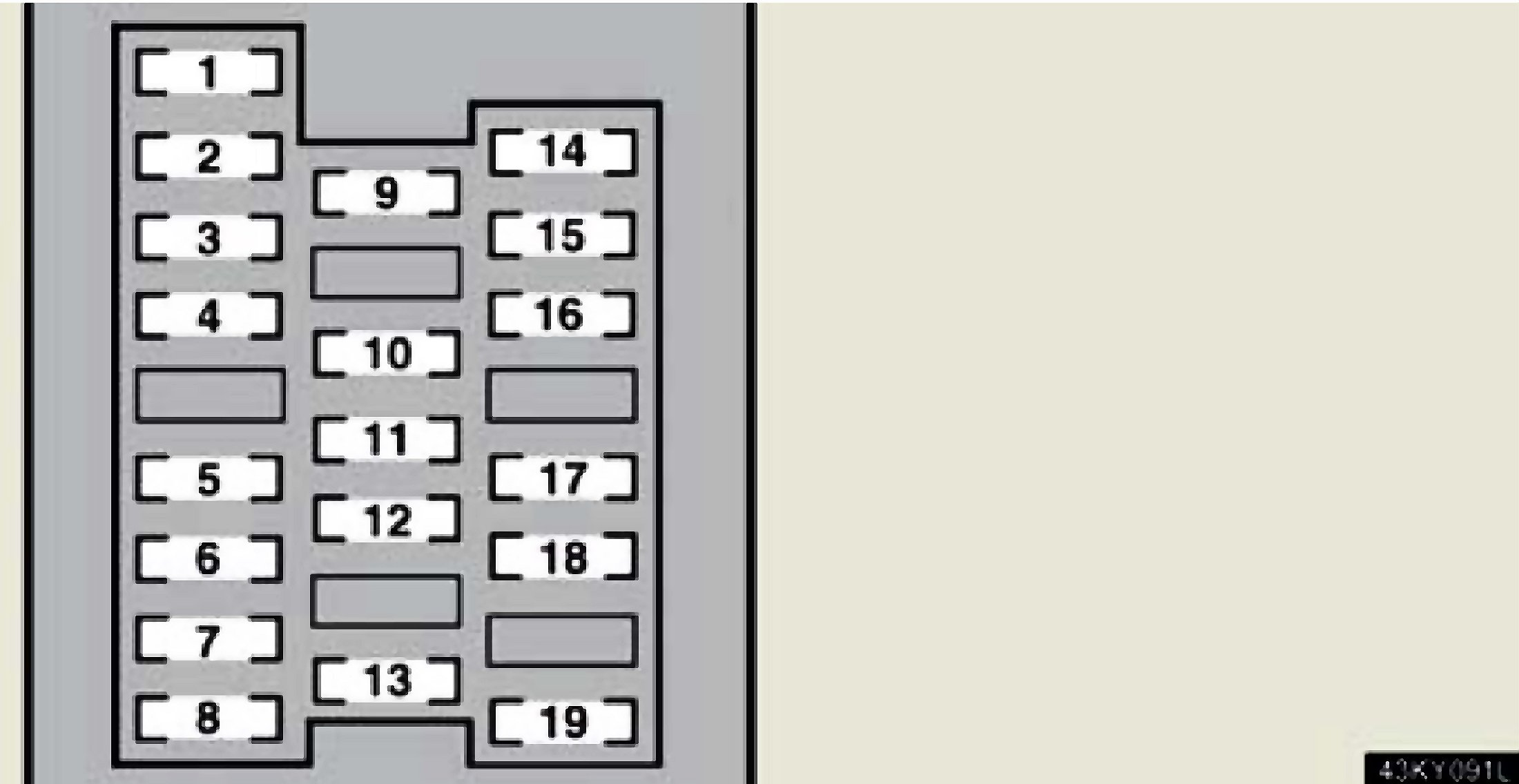

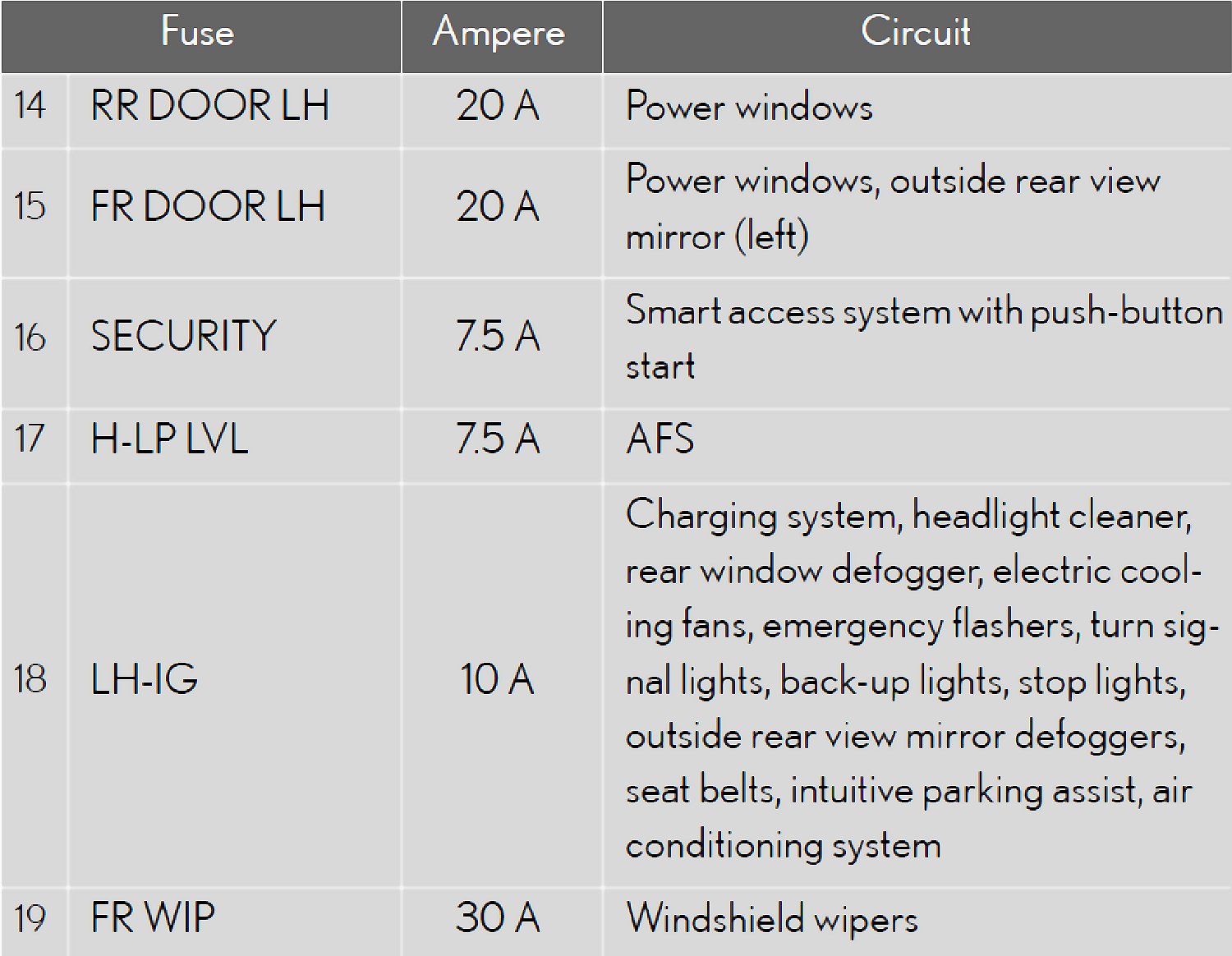

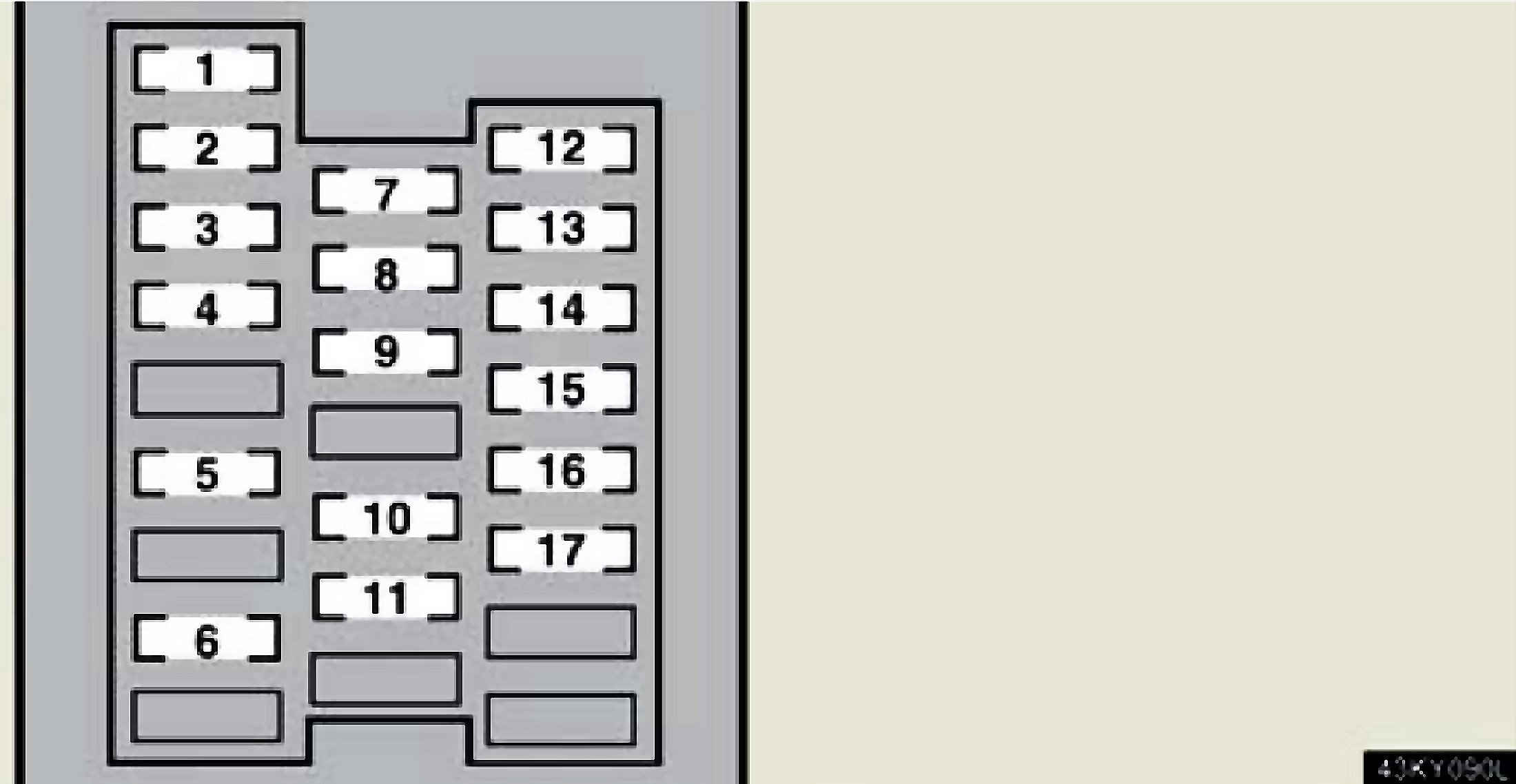

Fuse Location - Driver's Side Instrument Panel:

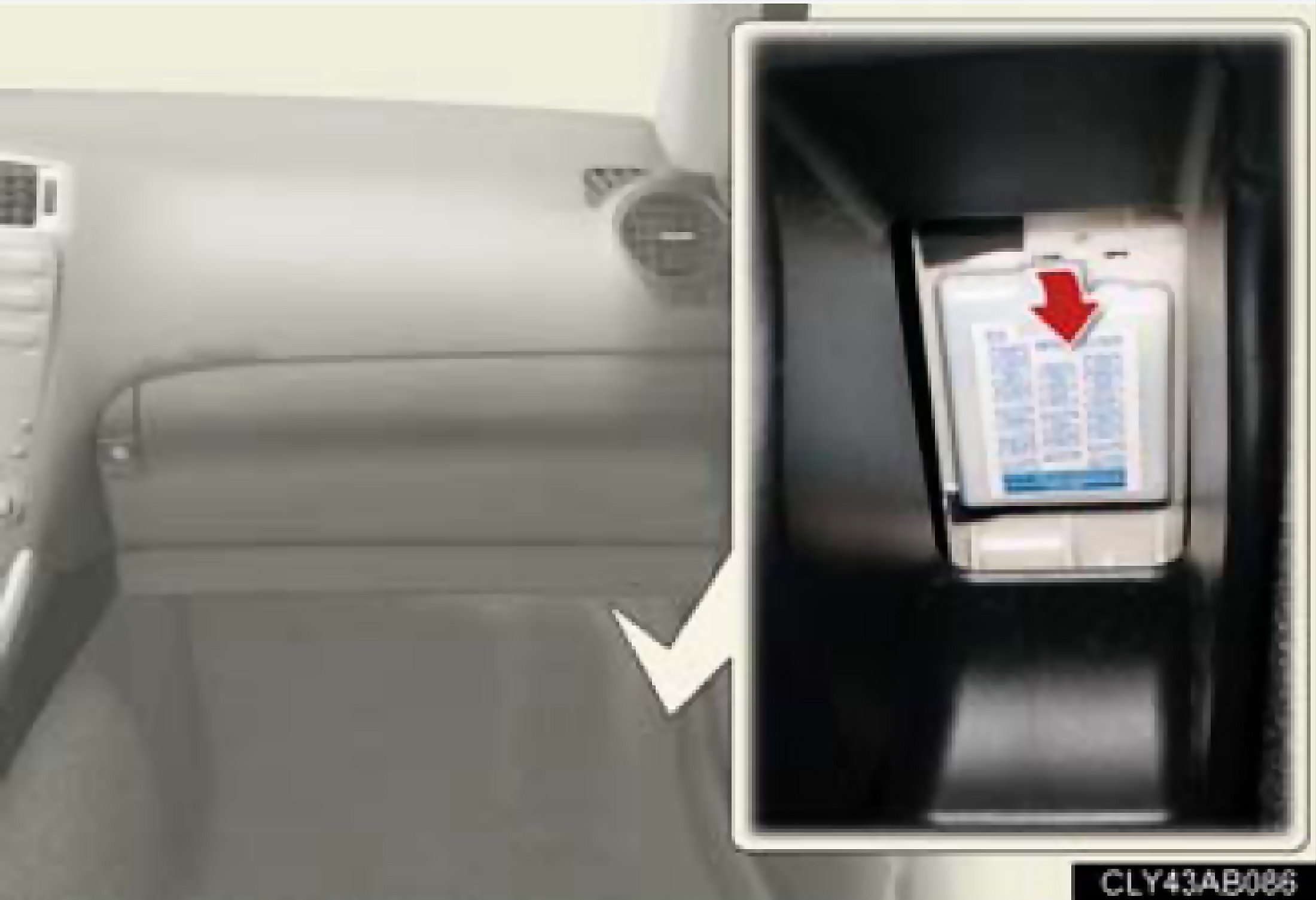

Fuse Block Location - Passenger's Side Instrument Panel:

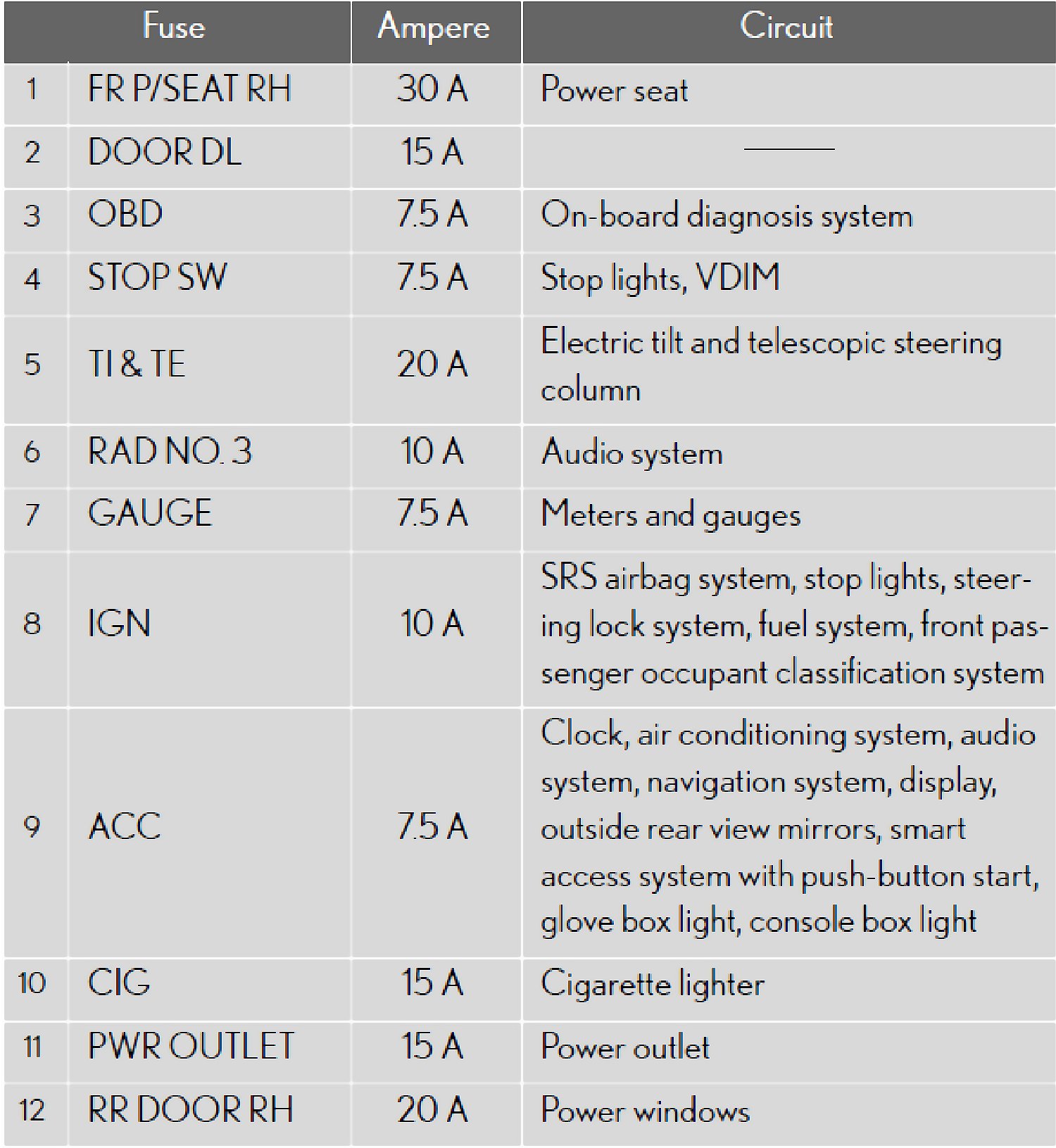

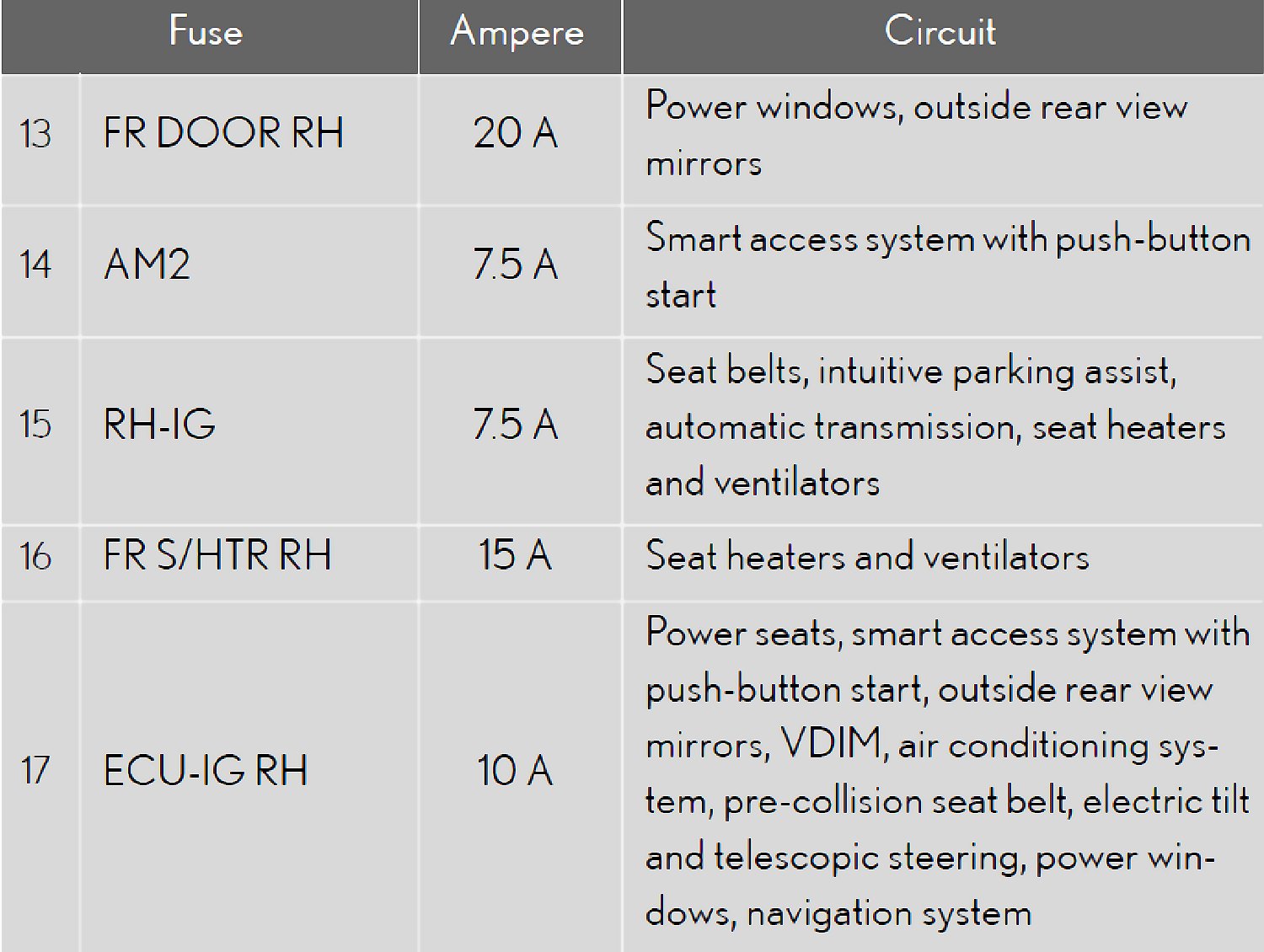

Fuse Location - Passenger's Side Instrument Panel:
