Standard Bolt - How To Determine Nut Strength

SPECIFICATIONS: STANDARD BOLT: HOW TO DETERMINE NUT STRENGTH

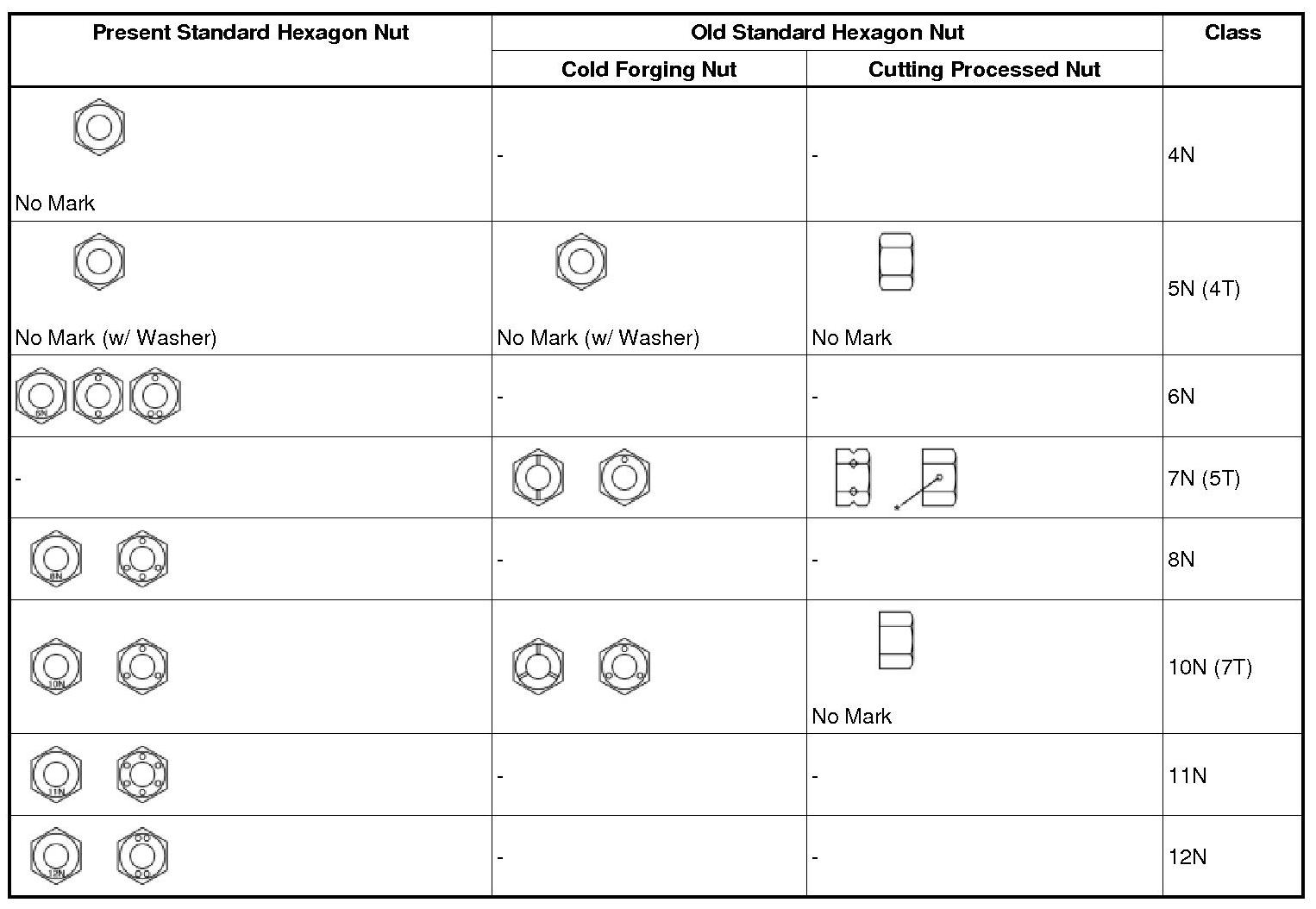

HOW TO DETERMINE NUT STRENGTH

Nut Type





HINT:
- *: Nut with 1 or more marks on one side surface of the nut.
- Use a nut with the same nut strength classification number (or more) as the bolt strength classification number when tightening parts with a bolt and nut.

Example:
- Bolt = 4T
- Nut = 4N or more
