Exhaust Manifold

Exhaust manifold sub-assembly x Cylinder block 21 Nm (214 kgf-cm, 15 ft lb)

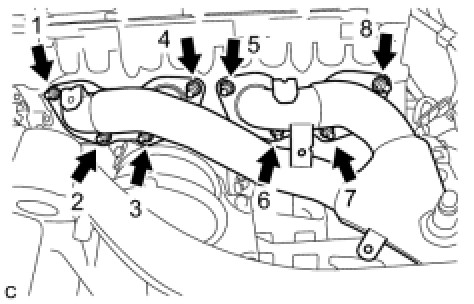

LH:

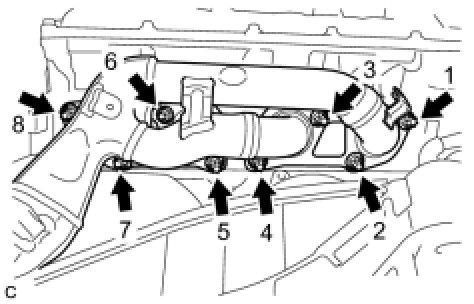

RH:
