Water Pump

WATER PUMP ASSEMBLY

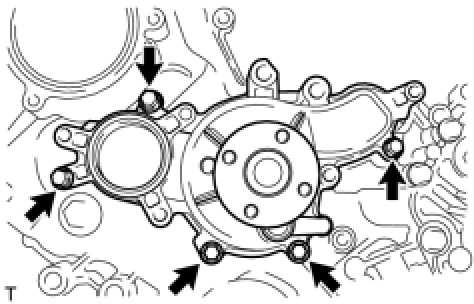

Install the water pump assembly and new water pump gasket with the 5
bolts.

Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
