Oil Pump, Engine

OIL PUMP COVER





Install the oil pump cover to the timing chain cover sub-assembly with the 13 bolts.

Torque: 10 Nm (102 kgf-cm, 7 ft-lbf)


SCAVENGING PUMP ASSEMBLY
Temporarily install the scavenging pump assembly and a new gasket with the 6 bolts.

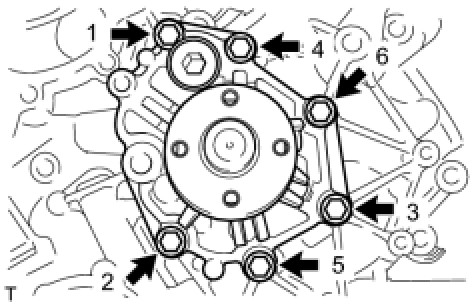

Using several steps, uniformly install and tighten the 6 bolts in the sequence shown in the illustration.

Torque: 23 Nm (235 kgf-cm, 17 ft-lbf)
