Water Pump

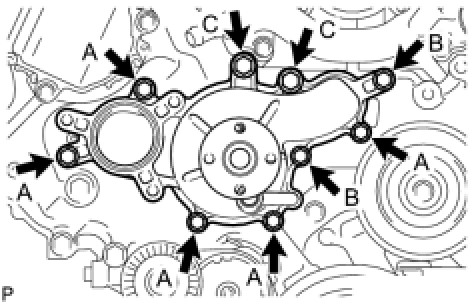

Install the water pump and a new gasket with the 9 bolts as shown in the illustration.
Bolt A Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
Bolt B Torque: 23 Nm (235 kgf-cm, 17 ft-lbf)
Bolt C Torque: 47 Nm (479 kgf-cm, 35 ft-lbf)
Install the water pump and a new gasket with the 9 bolts as shown in the illustration.
Bolt A Torque: 20 Nm (204 kgf-cm, 15 ft-lbf)
Bolt B Torque: 23 Nm (235 kgf-cm, 17 ft-lbf)
Bolt C Torque: 47 Nm (479 kgf-cm, 35 ft-lbf)
