Luggage Compartment Door Opener Main Switch








DOOR / HATCH: LUGGAGE COMPARTMENT DOOR OPENER MAIN SWITCH: INSPECTION

INSPECTION

1. INSPECT LUGGAGE COMPARTMENT DOOR OPENER MAIN SWITCH

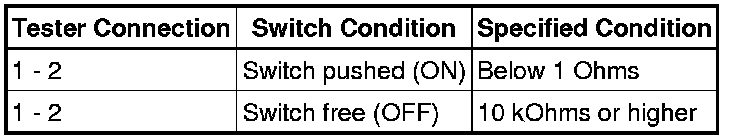

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the switch assembly.
