Removal

DOOR / HATCH: LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH: REMOVAL

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP
2. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE Removal
3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE Removal
4. REMOVE LUGGAGE COMPARTMENT DOOR COVER
5. REMOVE LUGGAGE COMPARTMENT DOOR REINFORCEMENT

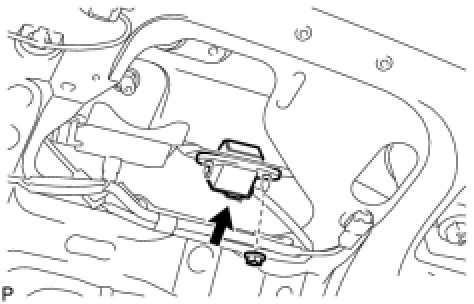

6. REMOVE LUGGAGE KEY ELECTRICAL SWITCH





(a) Disconnect the connector.
(b) Remove the nut and luggage key electrical switch.
