Power Door Lock Switch: Testing and Inspection

DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

INSPECTION

1. INSPECT DOOR CONTROL SWITCH ASSEMBLY

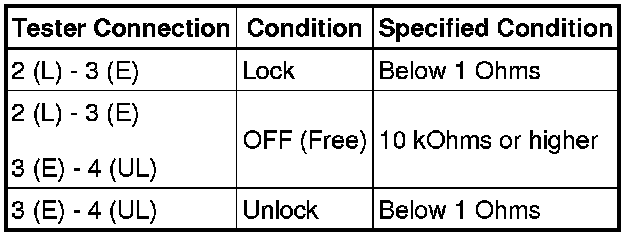

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the door control switch assembly.
