Pinout Values and Diagnostic Parameters

SUPPLEMENTAL RESTRAINT SYSTEMS: OCCUPANT CLASSIFICATION SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

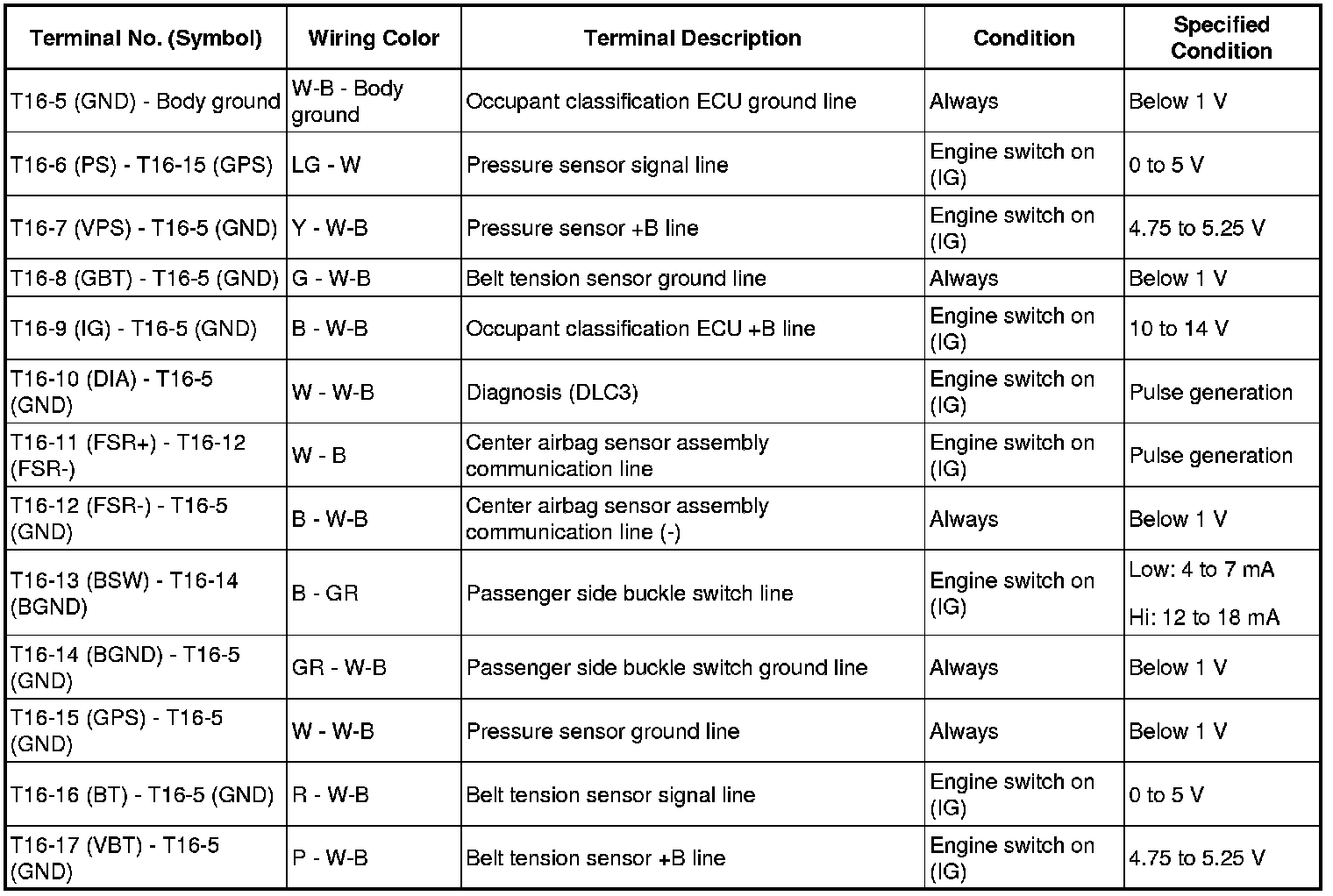

1. OCCUPANT CLASSIFICATION ECU
