Removal

SUPPLEMENTAL RESTRAINT SYSTEMS: SEAT POSITION SENSOR: REMOVAL

REMOVAL

1. PRECAUTION
CAUTION:
Be sure to read Precaution thoroughly before servicing Service Precautions.

2. REMOVE FRONT SEAT ASSEMBLY LH
(a) Remove the front seat assembly LH Removal.
3. REMOVE SEAT POSITION SENSOR





(a) Disconnect the connector.
NOTE:
When disconnecting the airbag connector, take care not to damage the airbag wire harness.

(b) Using a "TORX" socket wrench (T30), remove the "TORX" screw and seat position sensor with the seat position sensor protector.

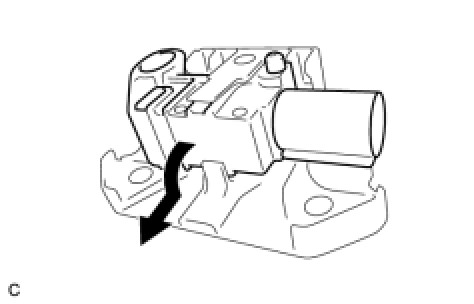

(c) Remove the seat position sensor from the seat position sensor protector as shown in the illustration.
