Front Seat Inner Belt Assembly








SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION

INSPECTION

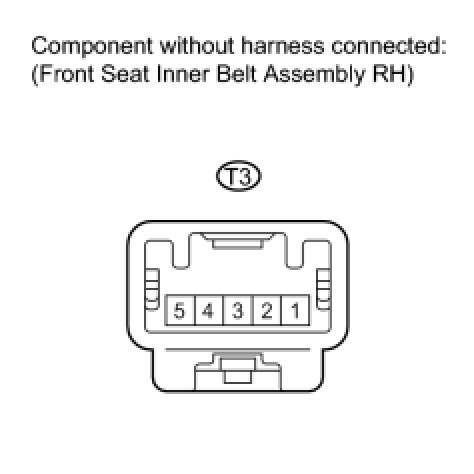

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY RH
(a) Measure the resistance between the terminals of the switch when the switch is operated.

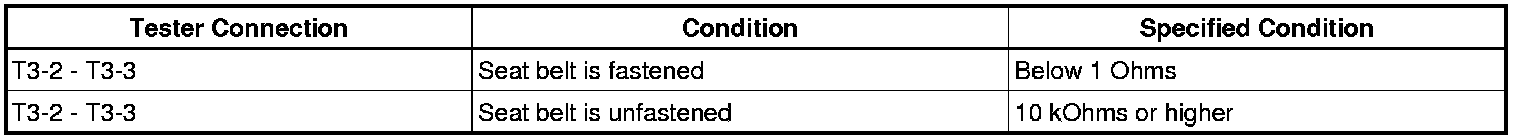

Standard Resistance:

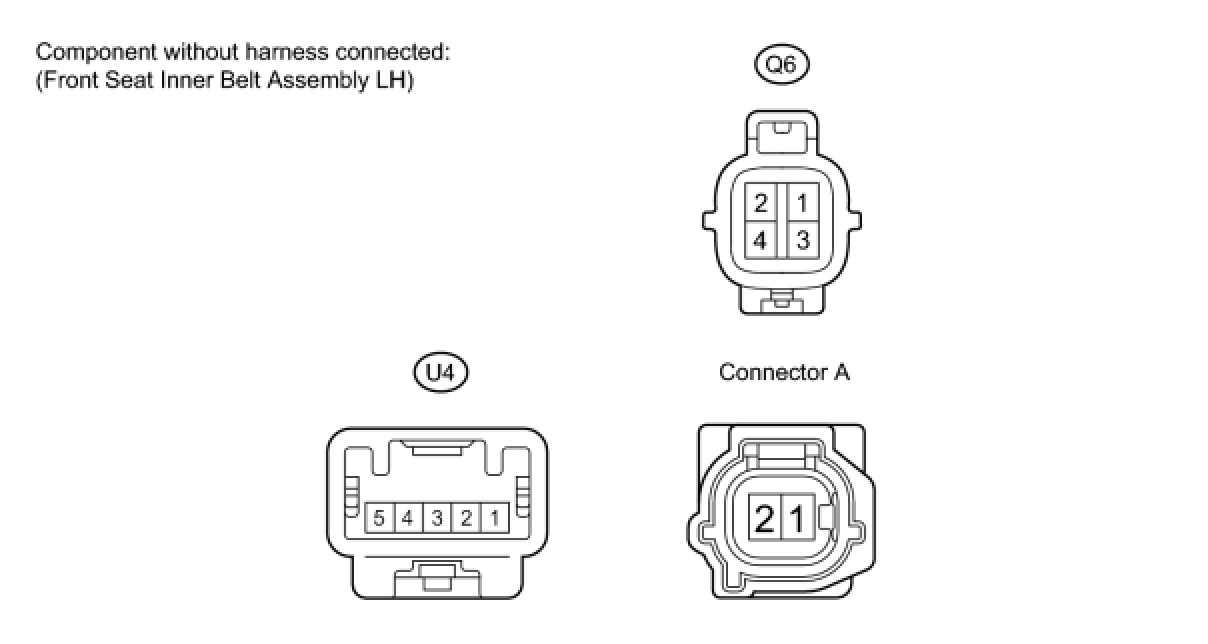

2. INSPECT FRONT SEAT INNER BELT ASSEMBLY LH
(a) Measure the resistance between the terminals of the switch when the switch is operated.

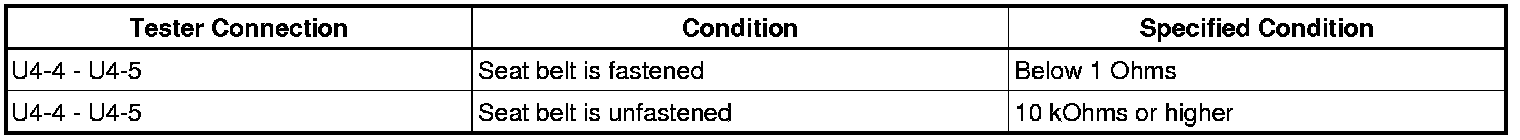

Standard Resistance:






(b) Measure the resistance between the terminals of the front seat inner belt assembly.

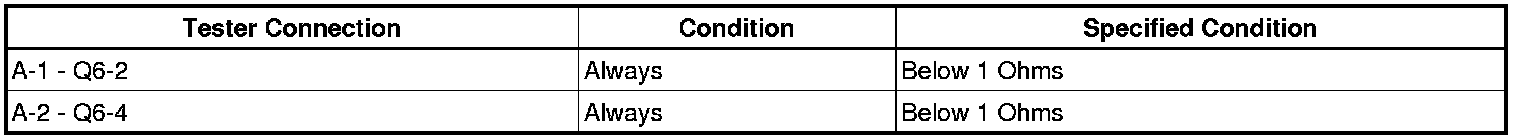

Standard Resistance:
