SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: INSTALLATION

INSTALLATION

1. INSTALL REAR SEAT INNER BELT ASSEMBLY

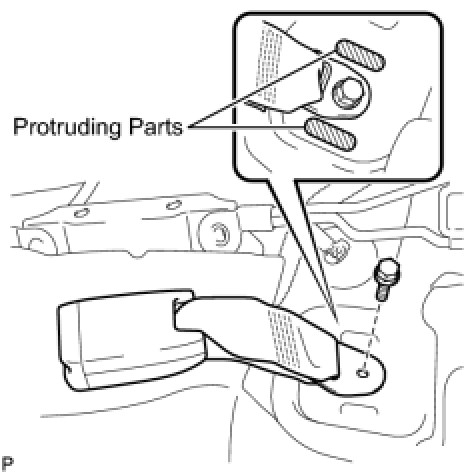

(a) Install the rear seat inner belt assembly with the bolt.
Torque: 42 Nm (428 kgf-cm, 31 ft-lbf)
NOTE:
Do not allow the anchor part of the rear seat inner belt assembly to overlap the protruding parts of the floor panel.

2. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
