Removal

SEAT BELT: CHILD RESTRAINT SEAT ANCHOR BRACKET: REMOVAL

REMOVAL

1. REMOVE REAR SEAT HEADREST ASSEMBLY LH
2. REMOVE REAR SEAT HEADREST ASSEMBLY RH
3. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
4. REMOVE REAR SEATBACK ASSEMBLY Removal
5. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

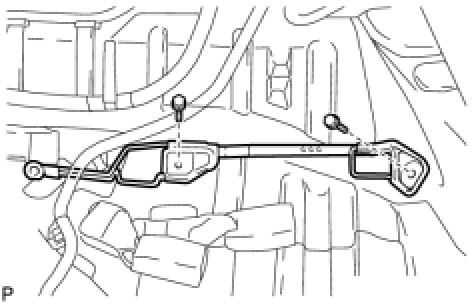

(a) Remove the 2 bolts and the child restraint seat anchor bracket sub-assembly.
