Inspection

SUPPLEMENTAL RESTRAINT SYSTEMS: FRONT SEAT CUSHION ASSEMBLY (w/ Occupant Classification ECU, Occupant Classification Sensor): INSPECTION

INSPECTION

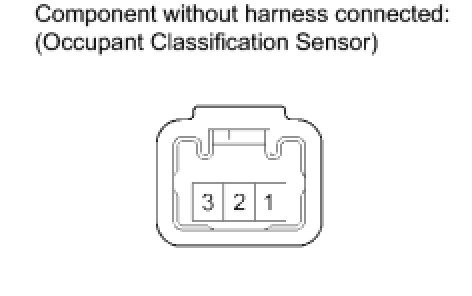

1. INSPECT OCCUPANT CLASSIFICATION SENSOR

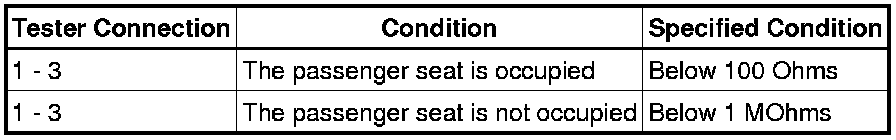

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:
