Removal

SUPPLEMENTAL RESTRAINT SYSTEMS: KNEE AIRBAG ASSEMBLY (for Front Passenger Side): REMOVAL

REMOVAL

1. PRECAUTION
CAUTION:
Be sure to read Precaution thoroughly before servicing Service Precautions.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

3. REMOVE FRONT DOOR SCUFF PLATE RH
HINT: Use the same procedure for the RH side and LH side Removal.

4. REMOVE FRONT DOOR OPENING TRIM COVER RH
HINT: Use the same procedure for the RH side and LH side Removal.

5. REMOVE SIDE INSTRUMENT PANEL RH Removal
6. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
7. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
(a) Check that the engine switch is off.
(b) Check that the cable is disconnected from the negative (-) battery terminal.
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

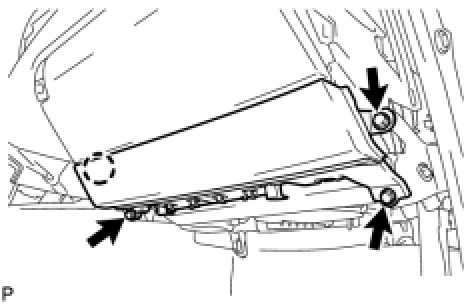

(c) Remove the 3 bolts.
(d) Disengage the claw and separate the front passenger side knee airbag assembly.
(e) Disconnect the connector and remove the front passenger side knee airbag assembly.
NOTE:
When disconnecting the airbag connector, take care not to damage the airbag wire harness.
