DOOR LOCK: DOOR CONTROL RECEIVER (for Rear Side): INSTALLATION

INSTALLATION

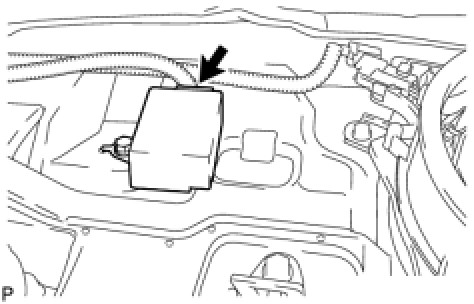

1. INSTALL DOOR CONTROL RECEIVER
(a) Install the door control receiver with the bolt.





(b) Connect the connector.
2. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY Installation
3. INSTALL CENTER STOP LIGHT SET Installation
4. INSTALL ROOF SIDE INNER GARNISH LH Installation
5. INSTALL ROOF SIDE INNER GARNISH RH Installation
6. INSTALL REAR SEAT SIDE GARNISH LH Installation
7. INSTALL REAR SEAT SIDE GARNISH RH Installation
8. INSTALL REAR DOOR SCUFF PLATE LH Installation
9. INSTALL REAR DOOR SCUFF PLATE RH Installation
10. INSTALL REAR SEATBACK ASSEMBLY Installation
11. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
12. INSTALL REAR SEAT HEADREST ASSEMBLY LH
13. INSTALL REAR SEAT HEADREST ASSEMBLY RH
