Ignition System: Description and Operation

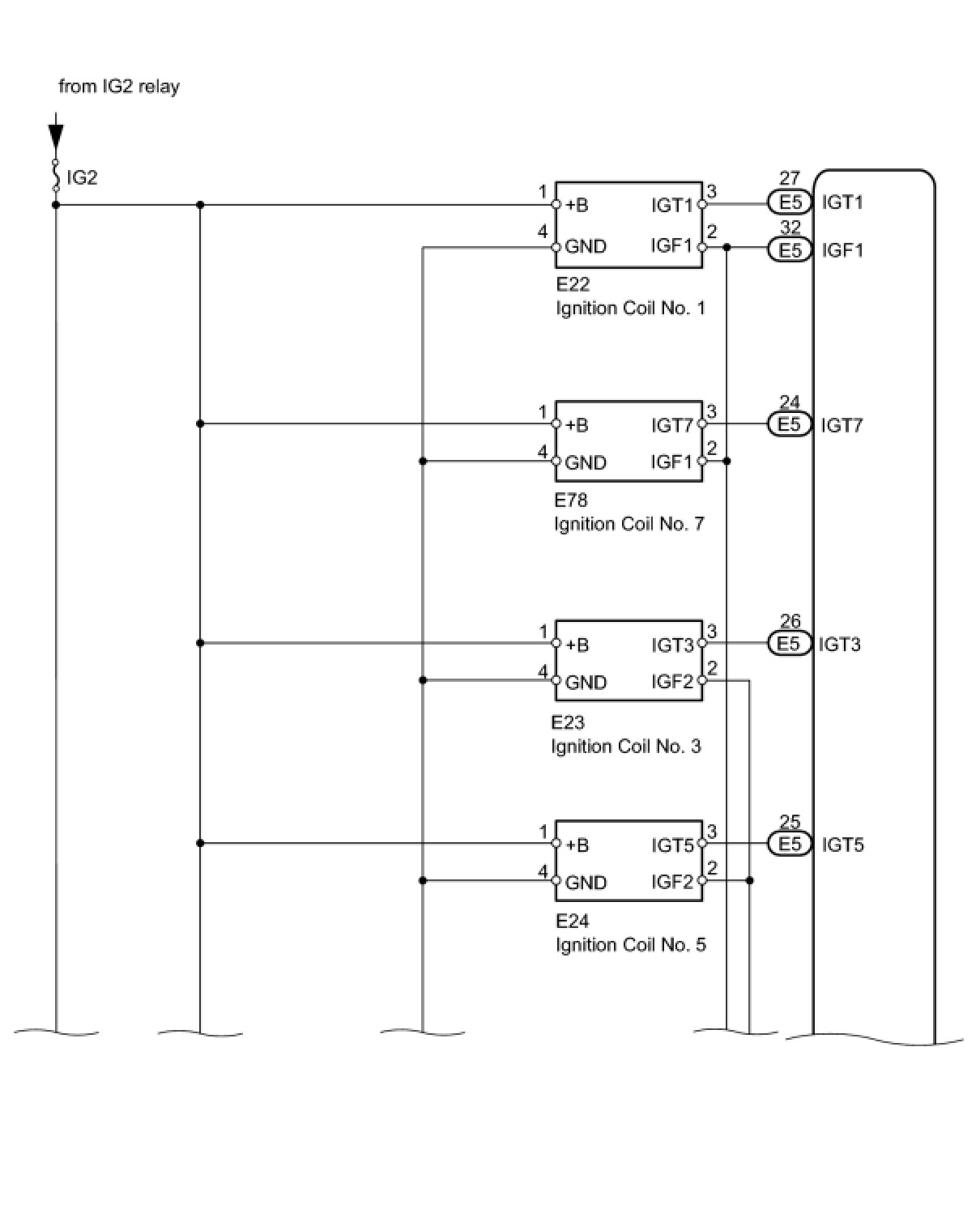

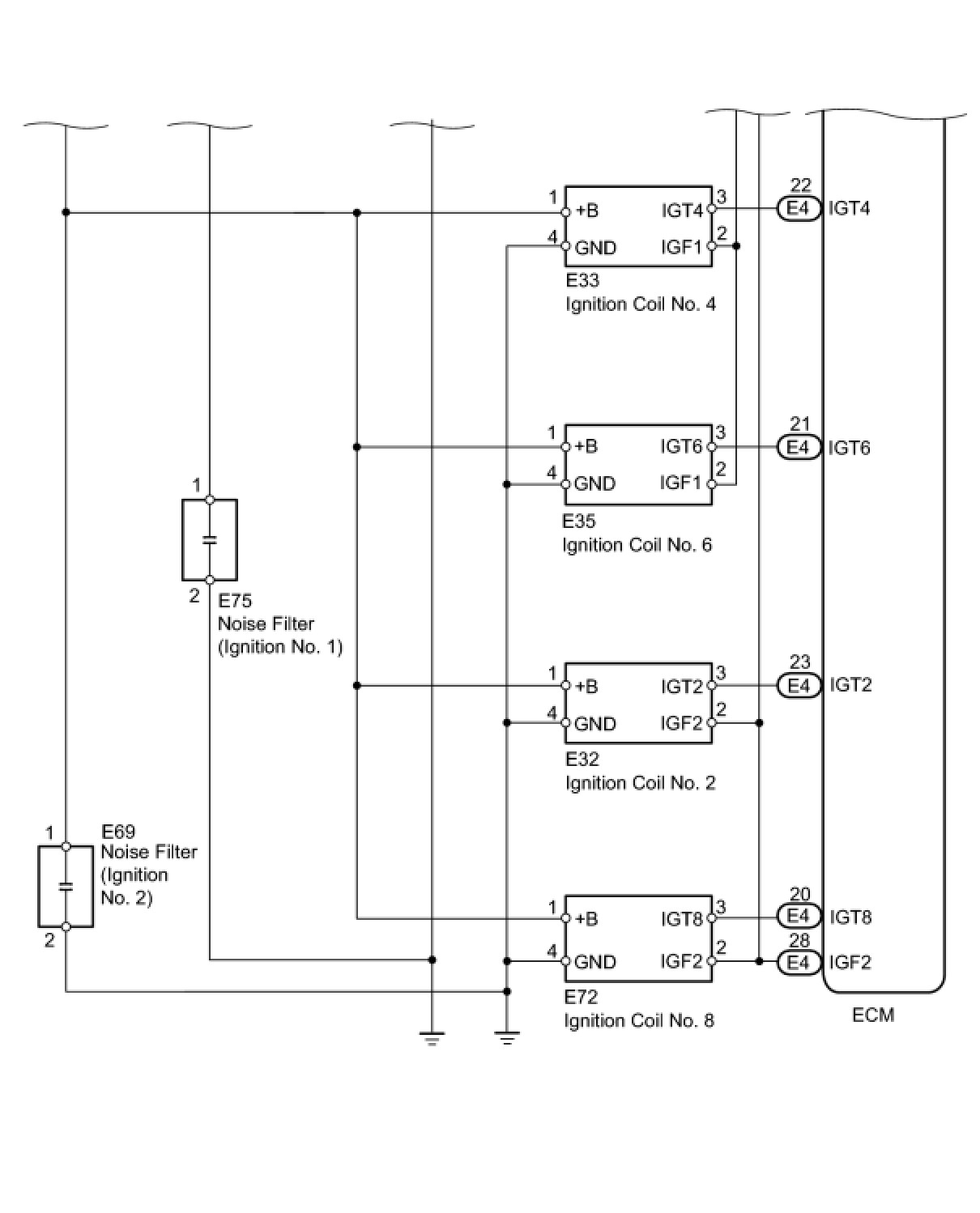

2UR-GSE ENGINE CONTROL: IGNITION SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM
