Inspection

2UR-GSE ENGINE CONTROL: THROTTLE BODY: INSPECTION

INSPECTION

1. INSPECT THROTTLE BODY ASSEMBLY
(a) Check that the throttle valve opens and closes smoothly.
(b) Check that there is no carbon accumulated around the throttle plate.

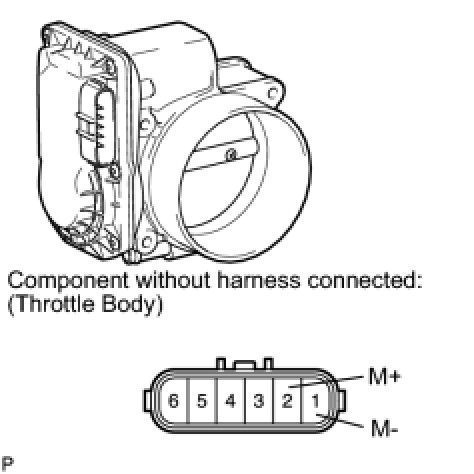

(c) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the throttle body.
