Removal

2UR-GSE FUEL: FUEL PUMP RESISTOR: REMOVAL

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal
2. REMOVE ENGINE ROOM SIDE COVER RH Removal
3. REMOVE FUEL PUMP RESISTOR

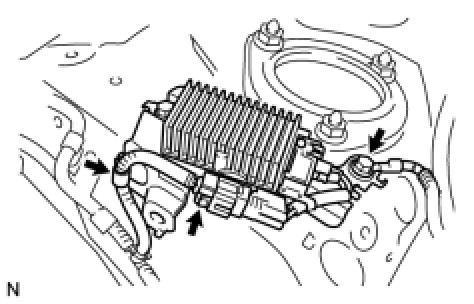

(a) Disconnect the connector and clamp from the fuel pump resistor.
(b) Remove the bolt and disconnect the engine wire.

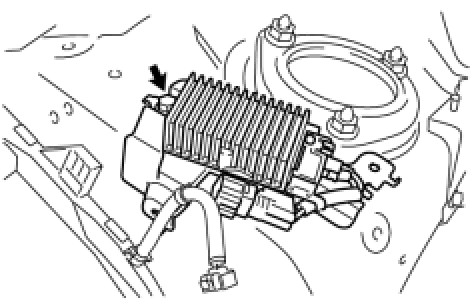

(c) Remove the bolt and fuel pump resistor.
