2UR-GSE FUEL: FUEL PUMP RESISTOR: INSTALLATION

INSTALLATION

1. INSTALL FUEL PUMP RESISTOR

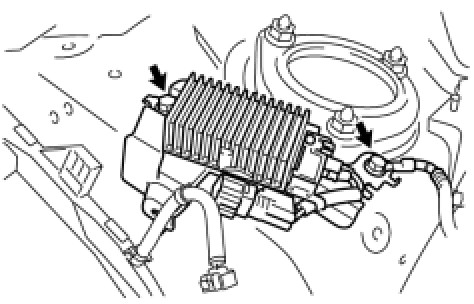

(a) Install the fuel pump resistor and engine wire with the 2 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)

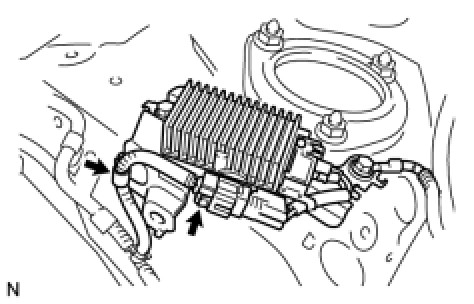

(b) Connect the fuel pump resistor connector and clamp.
2. INSTALL ENGINE ROOM SIDE COVER RH Installation
3. INSTALL COOL AIR INTAKE DUCT SEAL Installation
