Fuel Injector (for Direct Injection)

2UR-GSE FUEL: FUEL INJECTOR (for Direct Injection): INSPECTION

INSPECTION

1. INSPECT FUEL INJECTOR ASSEMBLY
NOTE:
This inspection aims at inspecting the fuel injector assemblies for opens or shorts, because the fuel injector assemblies of this vehicle are a high pressure type and cannot be inspected for fuel injection volume.

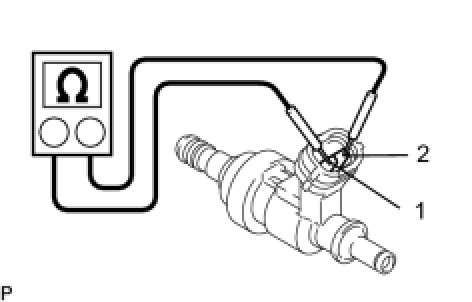

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, replace the fuel injector assembly.
