Fuel Delivery and Air Induction: Description and Operation

2UR-GSE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

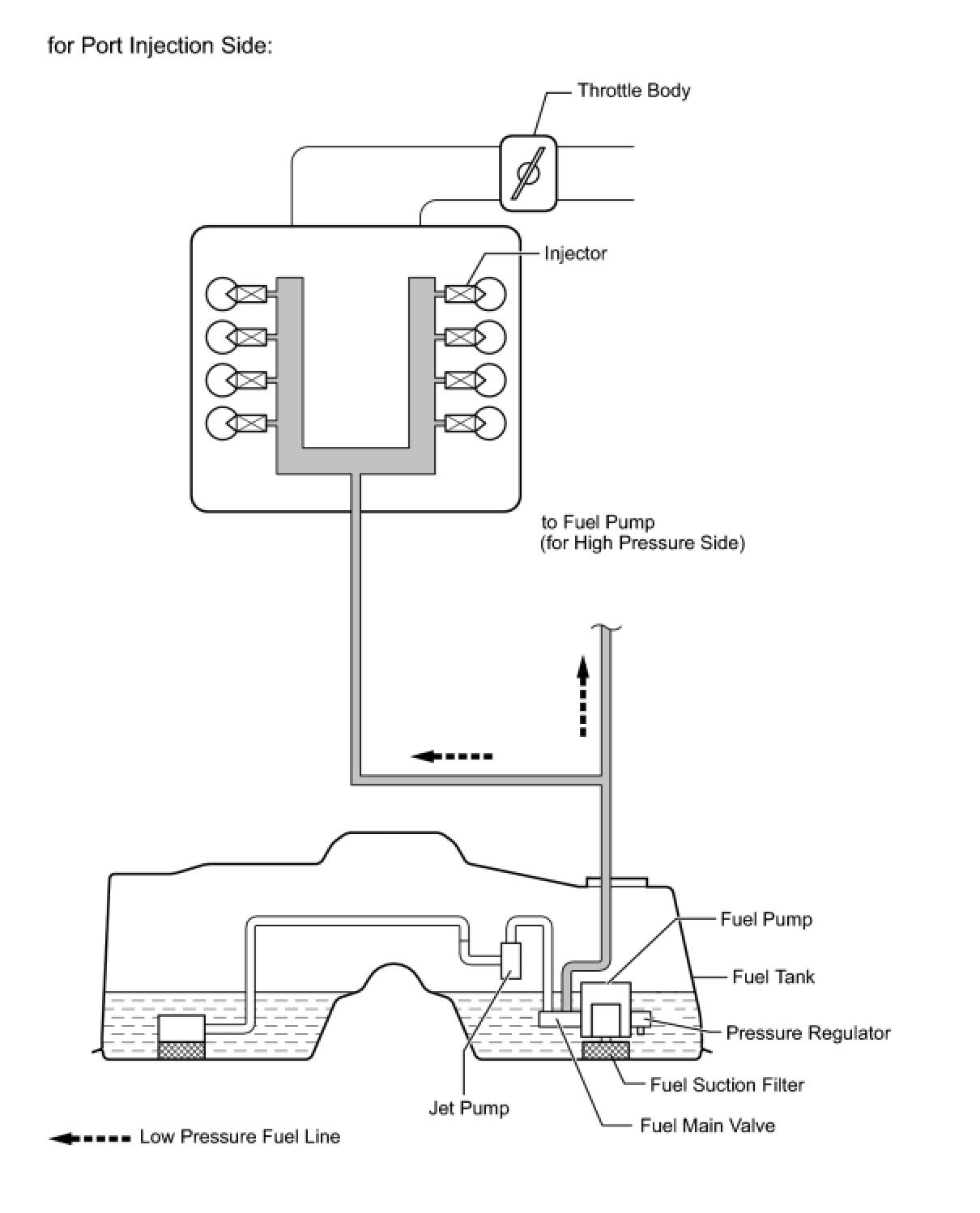

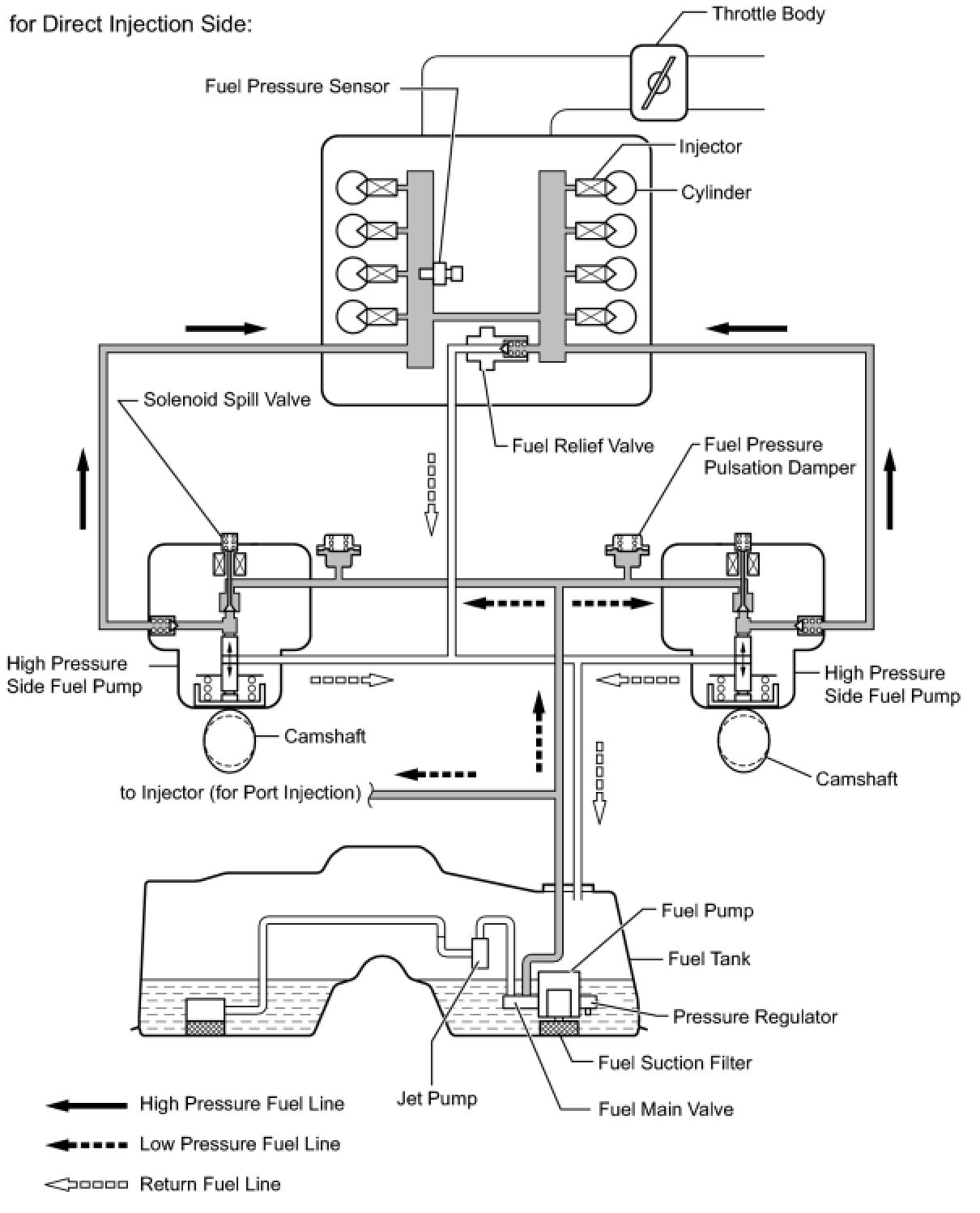

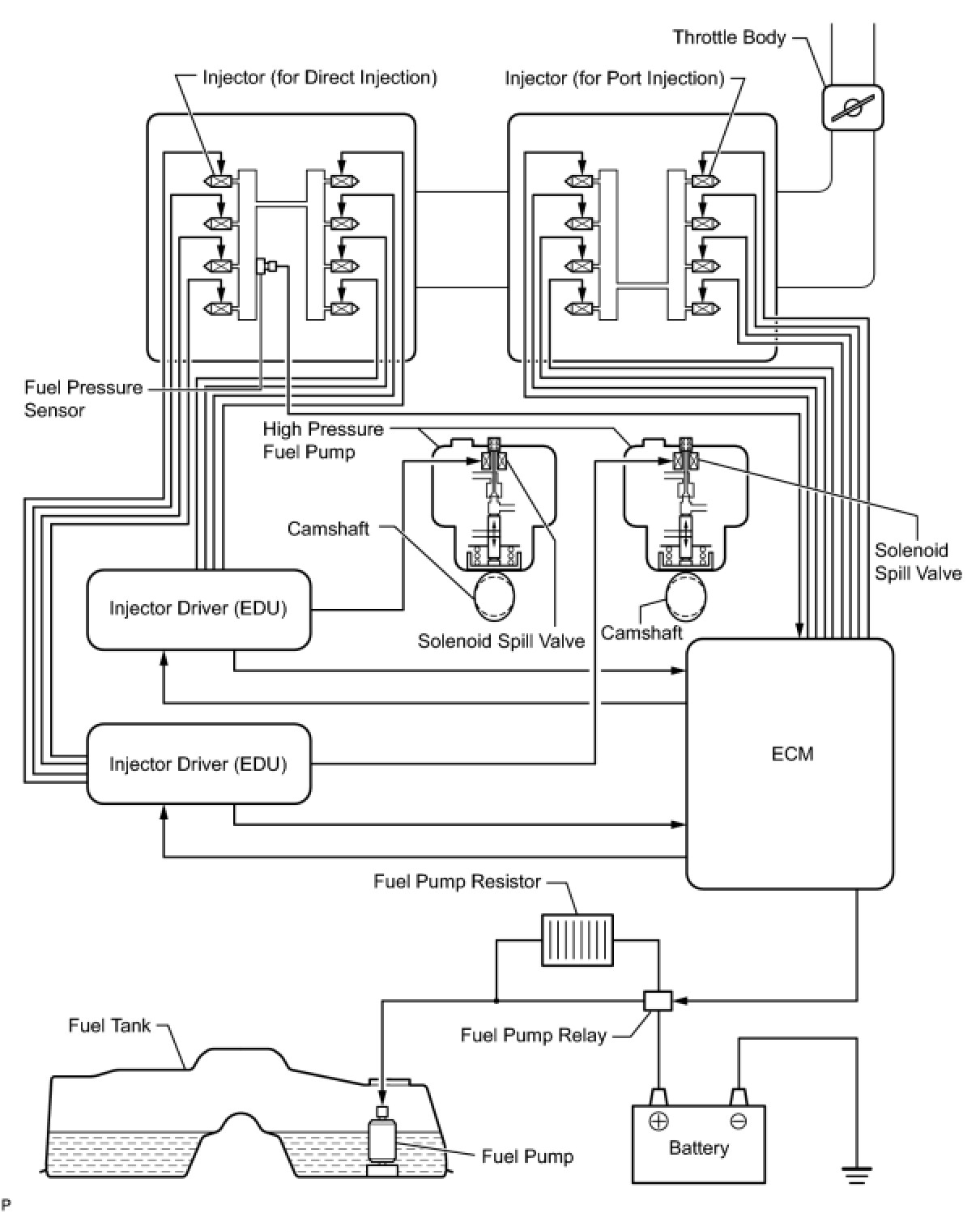

1. FUEL FLOW DIAGRAM









2. ELECTRICAL CONTROL DIAGRAM

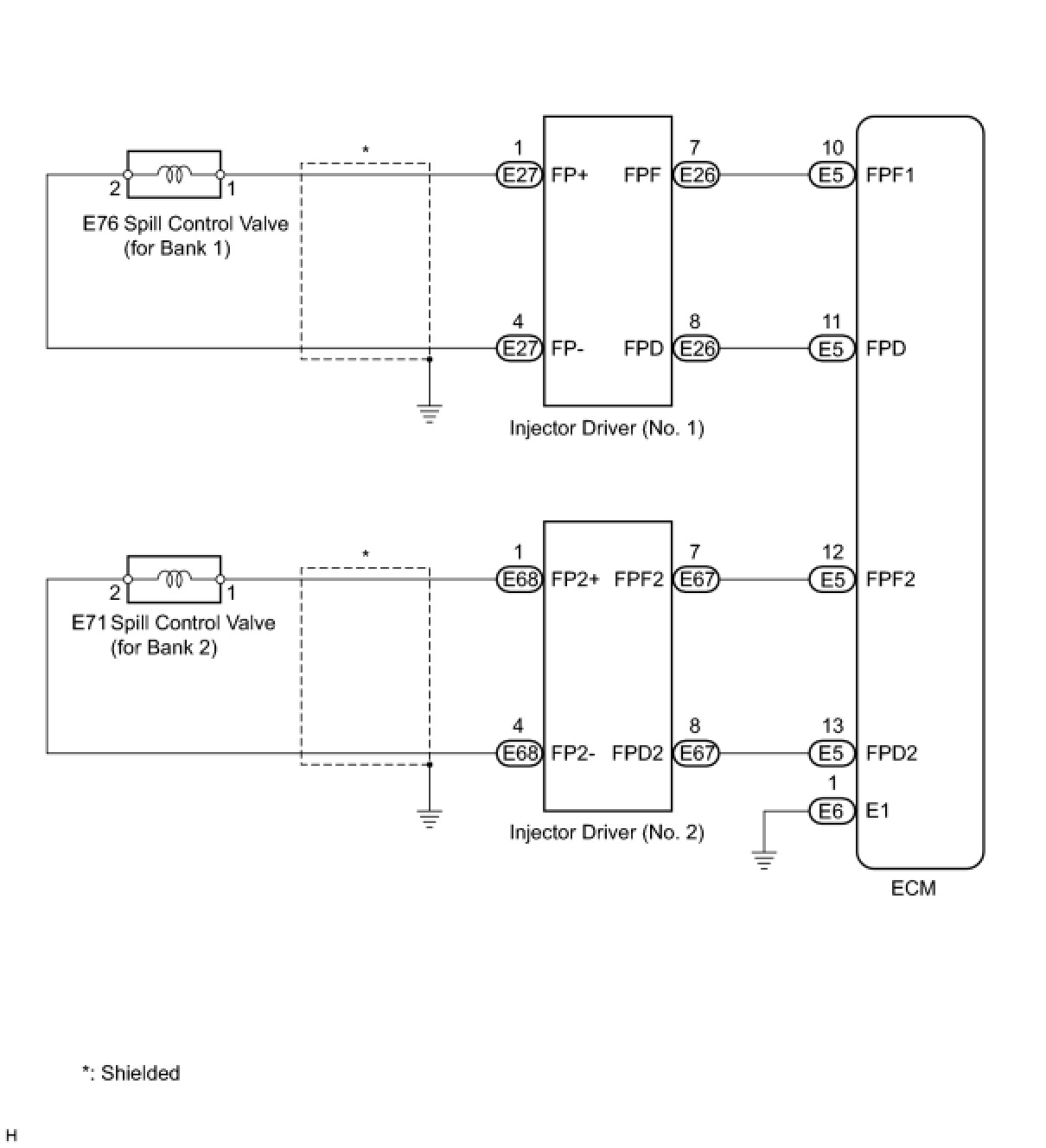

3. HIGH PRESSURE SIDE (DIRECT INJECTION SIDE) FUEL SYSTEM WIRING DIAGRAM

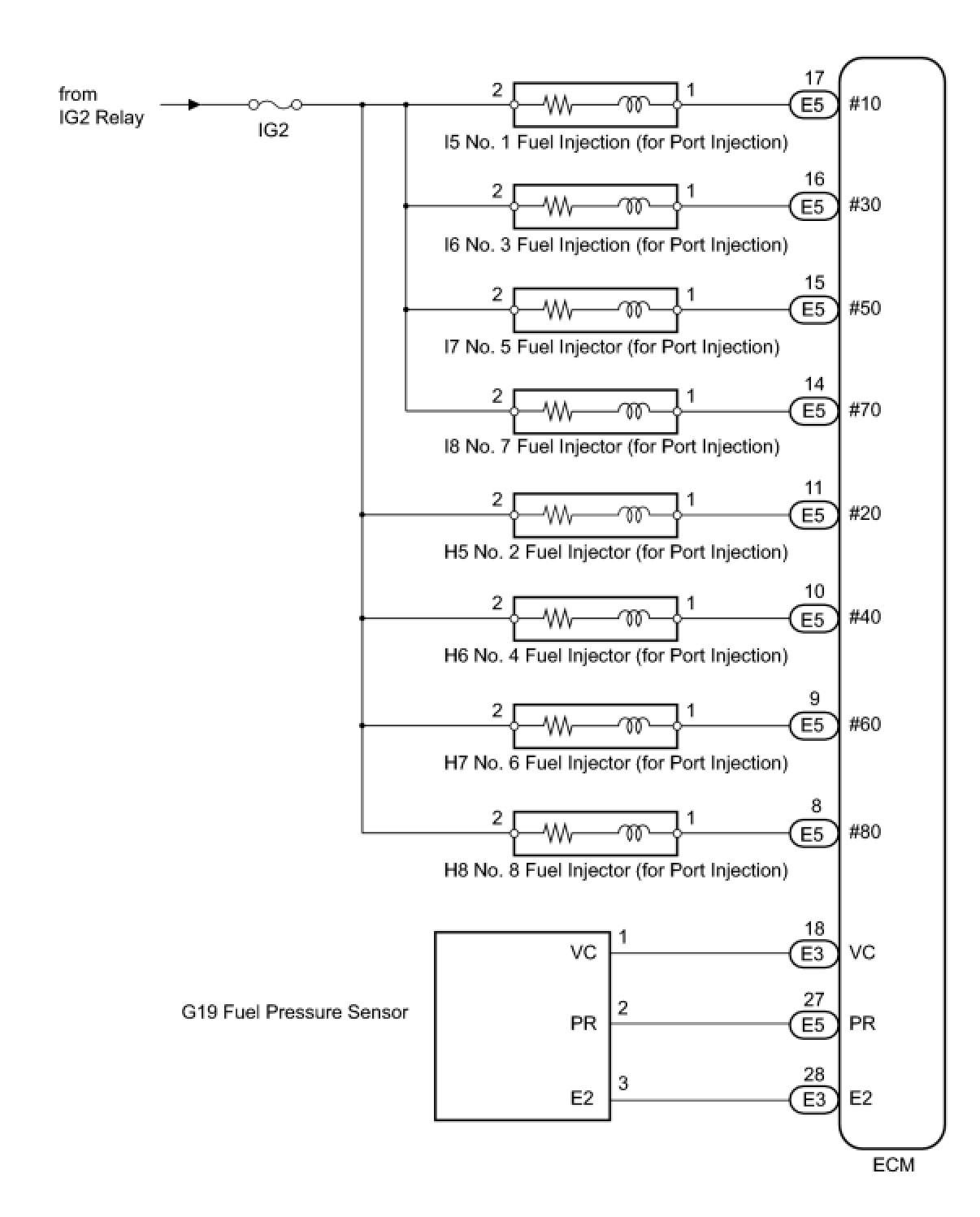

4. FUEL PRESSURE SENSOR AND PORT INJECTION SIDE FUEL SYSTEM WIRING DIAGRAM

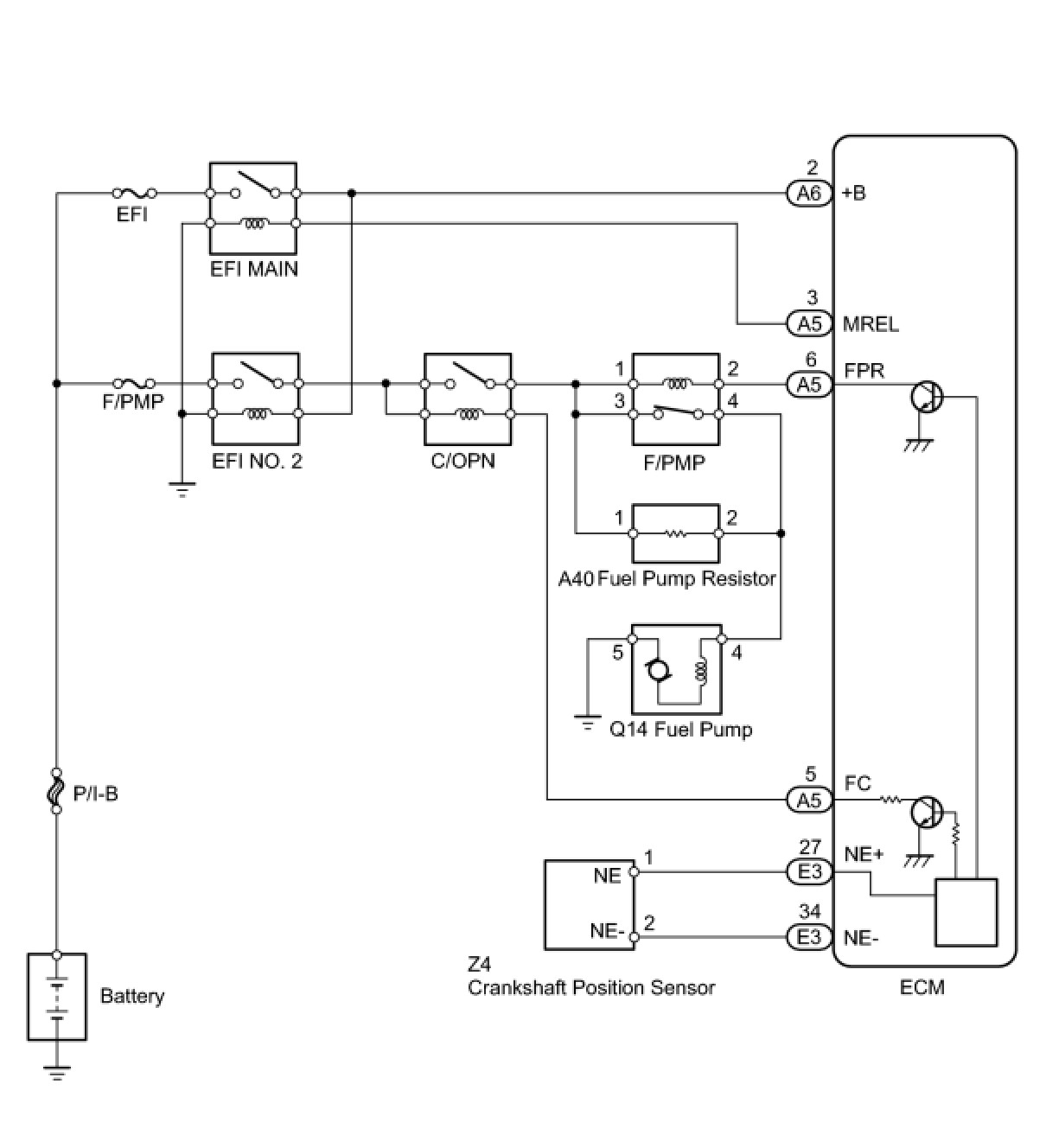

5. LOW PRESSURE SIDE FUEL SYSTEM WIRING DIAGRAM

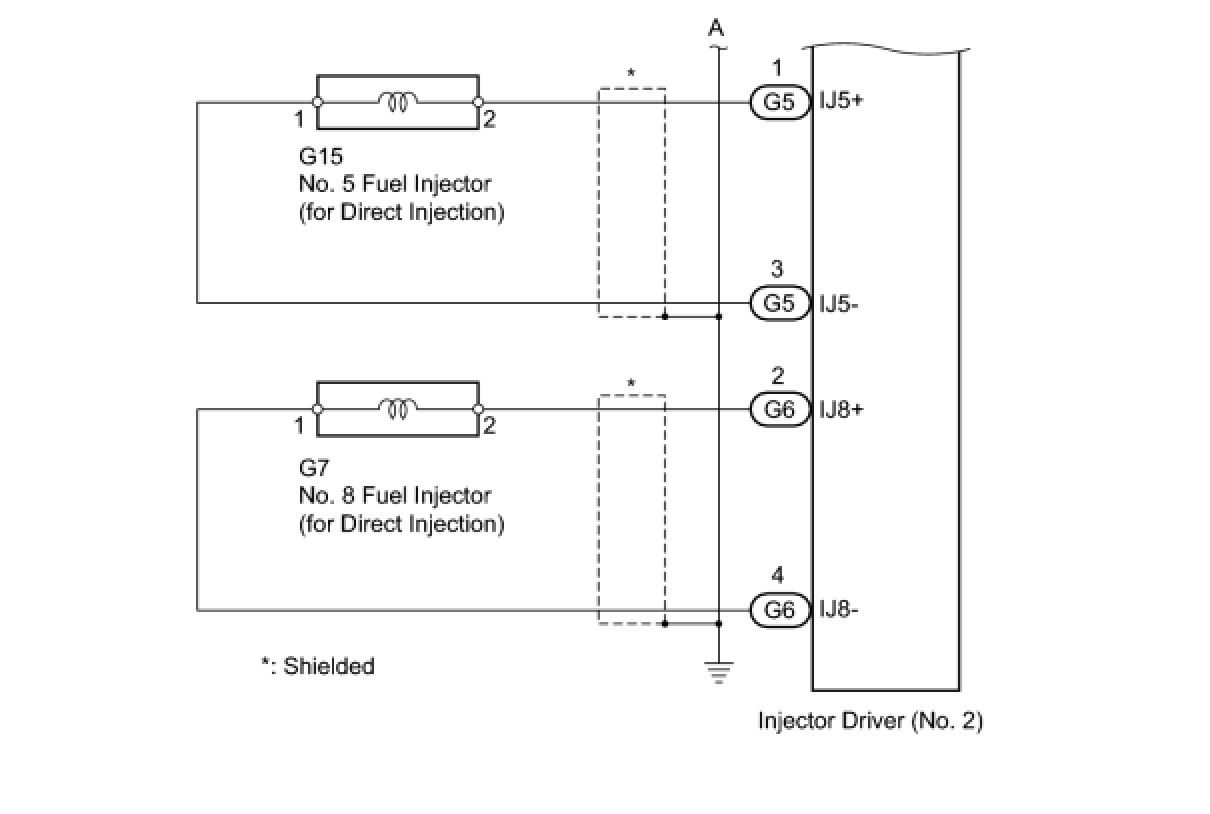

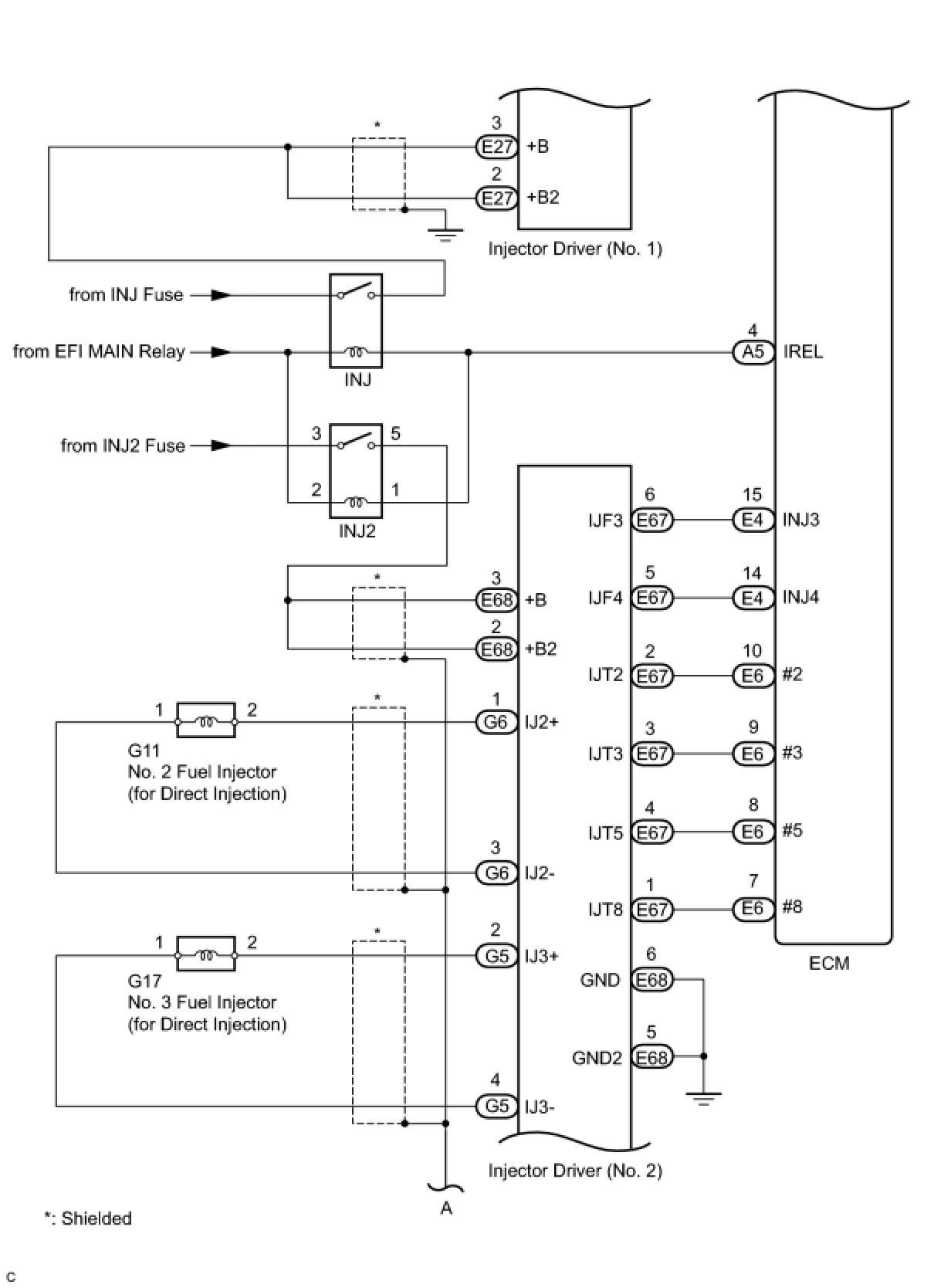

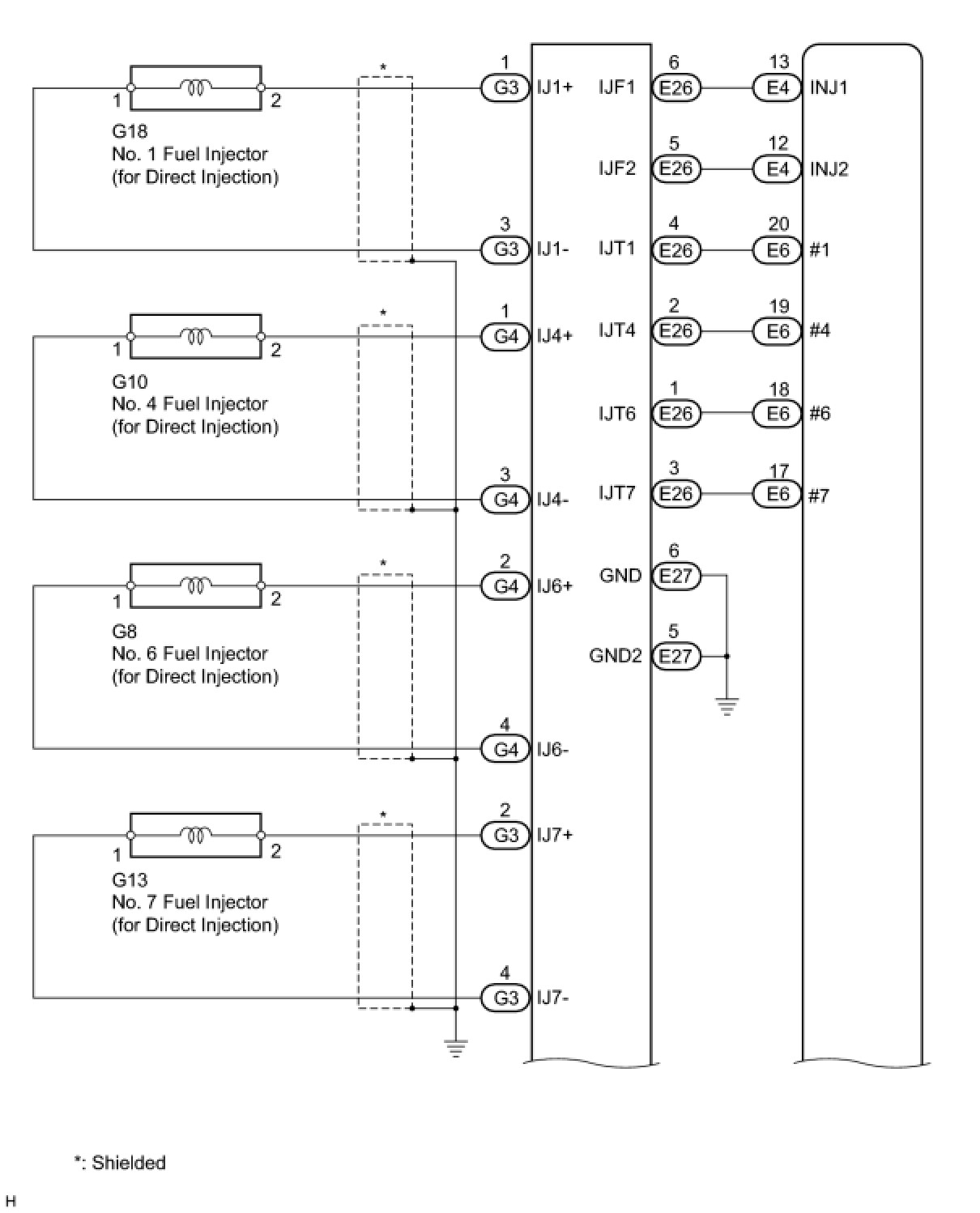

6. INJECTOR DRIVER WIRING DIAGRAM
