Accelerator Pedal: Testing and Inspection

2UR-GSE ENGINE CONTROL: ACCELERATOR PEDAL: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT ACCELERATOR PEDAL
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream ON.
(d) Enter the following menus: Powertrain / Engine / Data List / Accelerator Position No. 1 and accelerator Position No. 2.
(e) Read the value displayed on the Techstream.

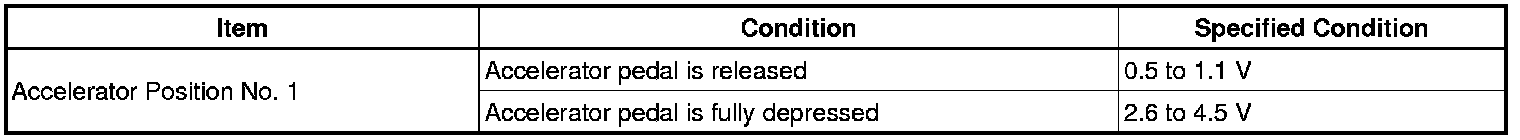

Standard Voltage:






Standard Voltage:





If the result is not as specified, check the accelerator pedal, wire harness or ECM.
