2UR-GSE EMISSION CONTROL: PCV VALVE: REMOVAL

REMOVAL

1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY
Removal
2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY Removal
3. REMOVE VENTILATION HOSE
HINT: The ventilation valve sub-assembly is the PCV valve.

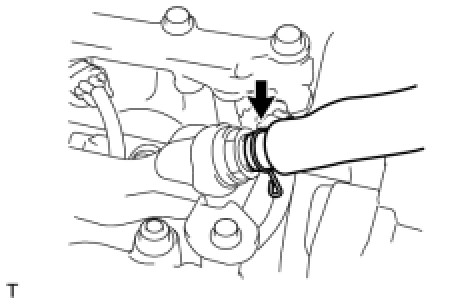

(a) Remove the ventilation hose from the ventilation valve sub-assembly.
4. REMOVE VENTILATION VALVE SUB-ASSEMBLY

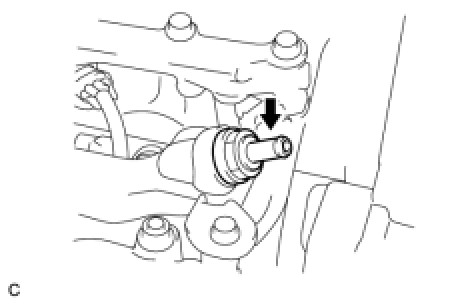

(a) Remove the ventilation valve sub-assembly.
