Removal

2UR-GSE EMISSION CONTROL: CANISTER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE NO. 1 FLOOR UNDER COVER

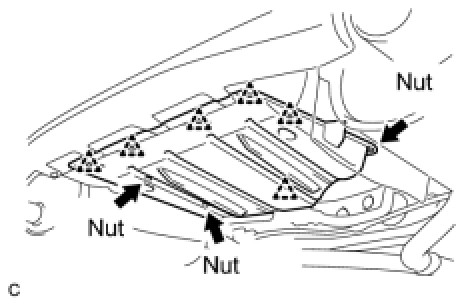

(a) Remove the 3 nuts, 6 clips and No. 1 floor under cover.
3. REMOVE CHARCOAL CANISTER ASSEMBLY





(a) Disconnect the wire harness from the 2 clamps.

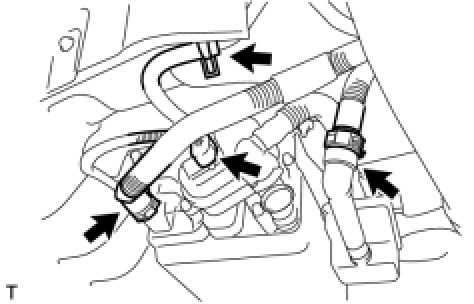

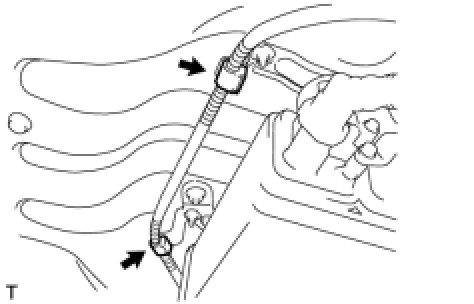

(b) Disconnect the 2 quick connectors, hose and connector.

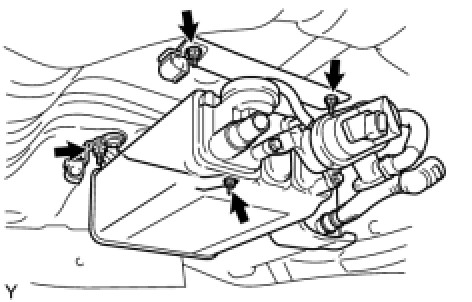

(c) Remove the 4 nuts and charcoal canister assembly.
