Emission Control Systems: Description and Operation

2UR-GSE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM

SYSTEM DIAGRAM

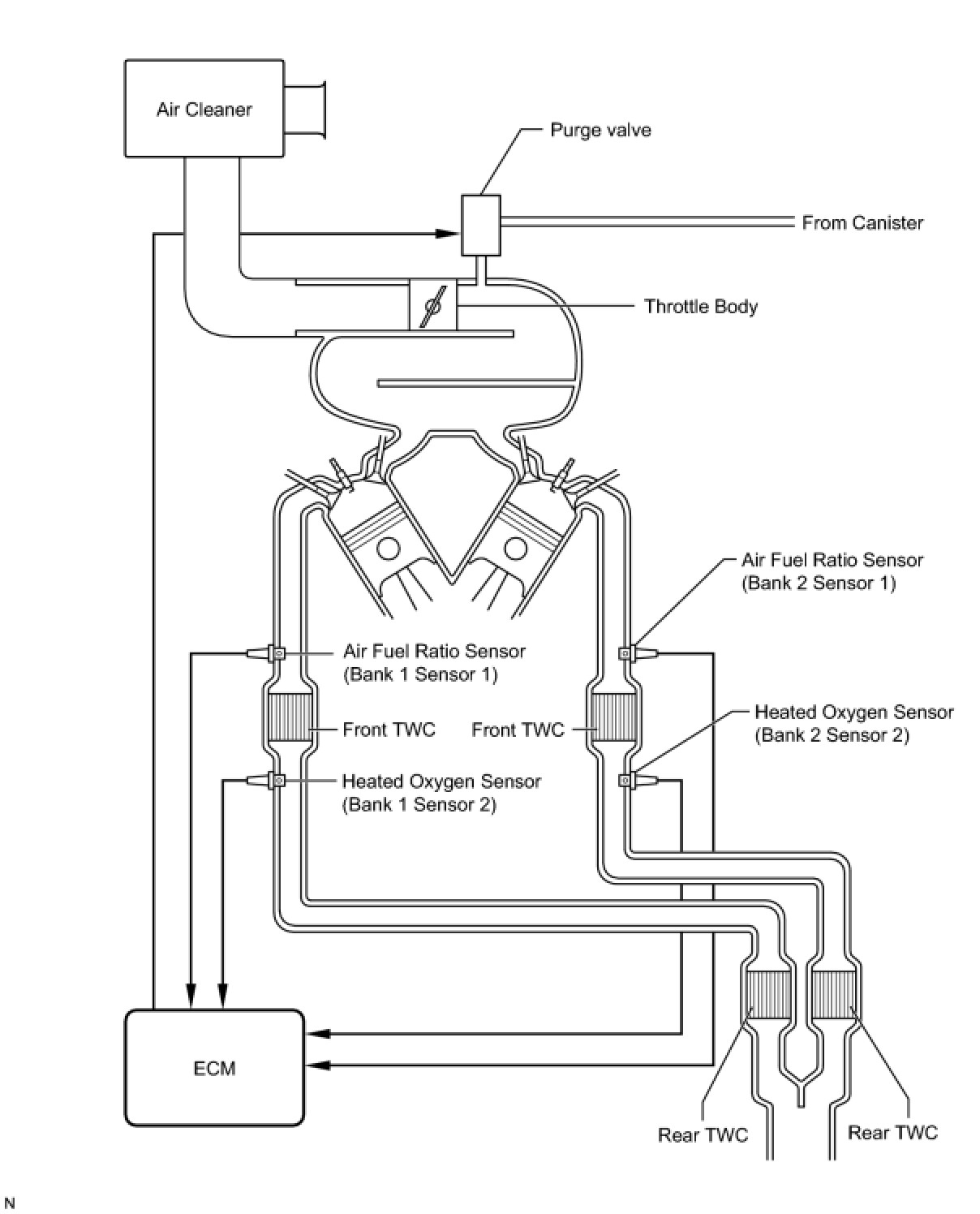

1. EMISSION CONTROL SYSTEM DIAGRAM

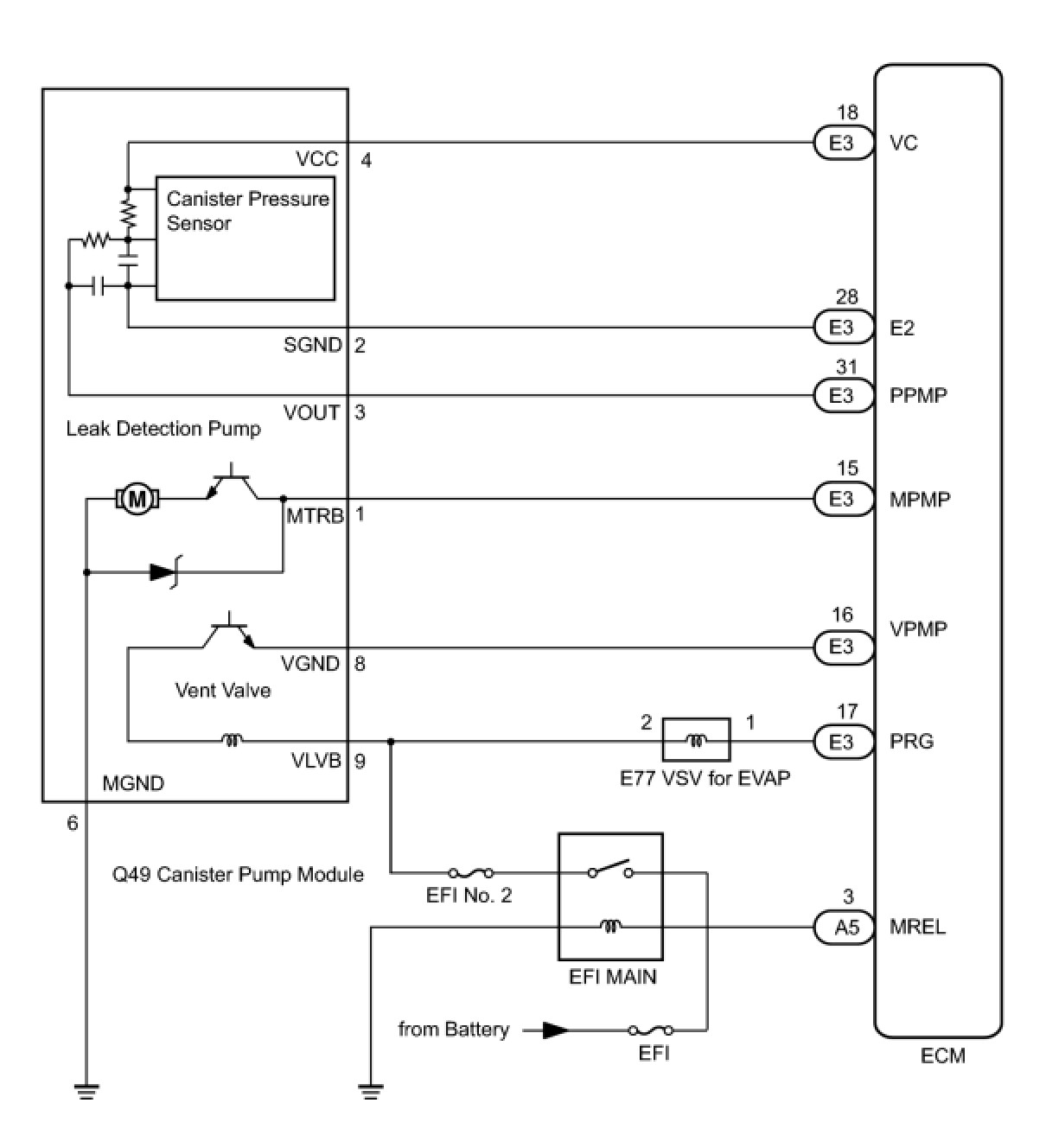

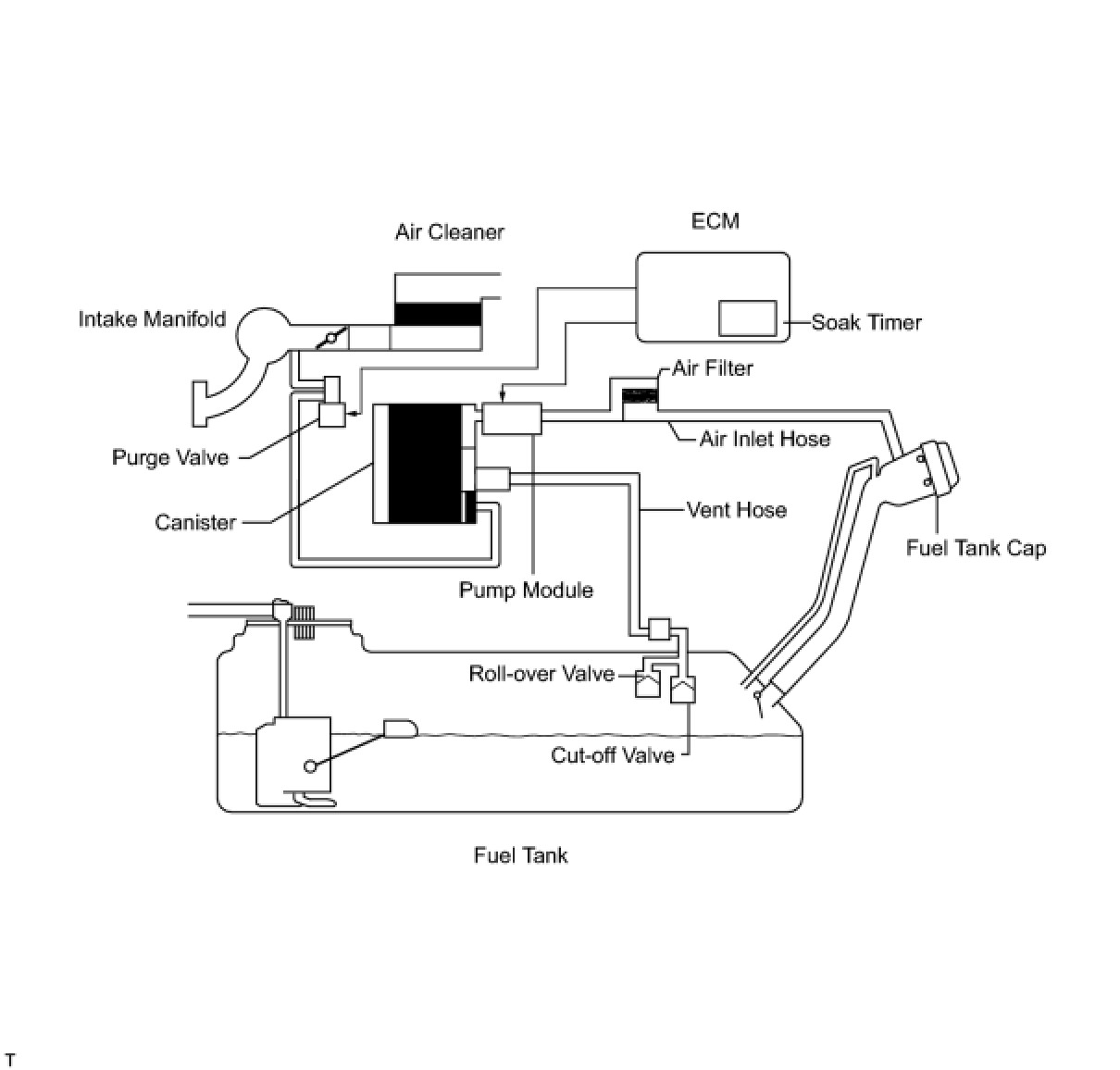

2. EVAP CONTROL SYSTEM DIAGRAM
