Removal

2UR-GSE ENGINE CONTROL: CAMSHAFT OIL CONTROL VALVE: REMOVAL

REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY Removal
2. REMOVE AIR CLEANER CAP SUB-ASSEMBLY Removal
3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY RH

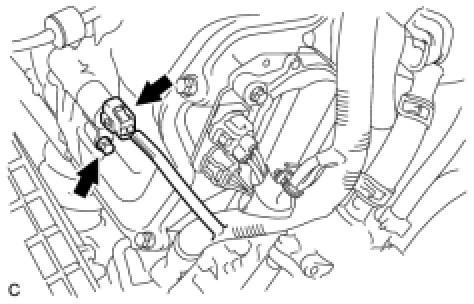

(a) Disconnect the camshaft timing oil control valve connector.
(b) Remove the bolt and the camshaft timing oil control valve assembly.

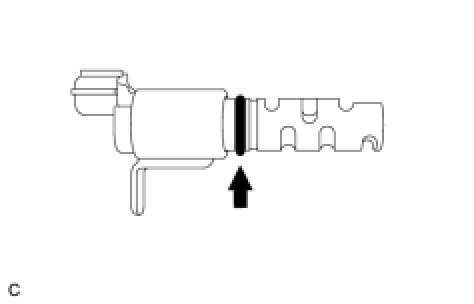

(c) Remove the O-ring from the camshaft timing oil control valve assembly.
4. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY LH

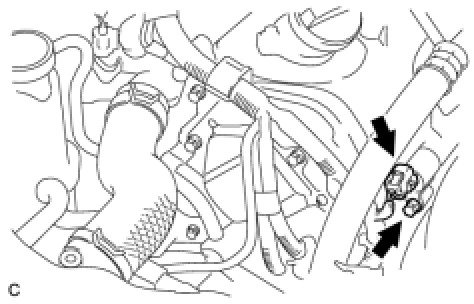

(a) Disconnect the camshaft timing oil control valve connector.
(b) Remove the bolt and the camshaft timing oil control valve assembly.





(c) Remove the O-ring from the camshaft timing oil control valve assembly.
