Removal

2UR-GSE ENGINE CONTROL: AIR FUEL RATIO SENSOR: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL Removal
2. REMOVE ENGINE AND TRANSMISSION
(a) Remove the engine and transmission Removal.

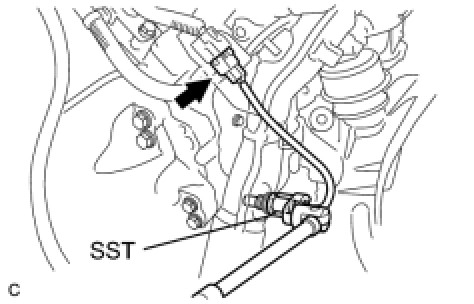

3. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)





(a) Disconnect the air fuel ratio sensor connector.
(b) Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
SST: 09224-00010

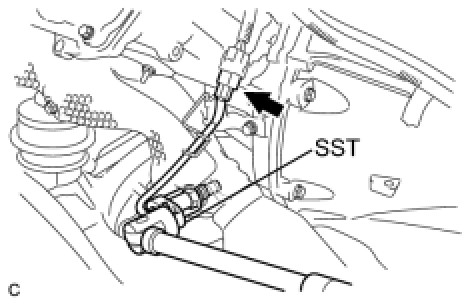

4. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)





(a) Disconnect the air fuel ratio sensor connector.
(b) Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
SST: 09224-00010
