Computers and Control Systems: Description and Operation








2UR-GSE ENGINE CONTROL: SFI SYSTEM: SYSTEM DIAGRAM

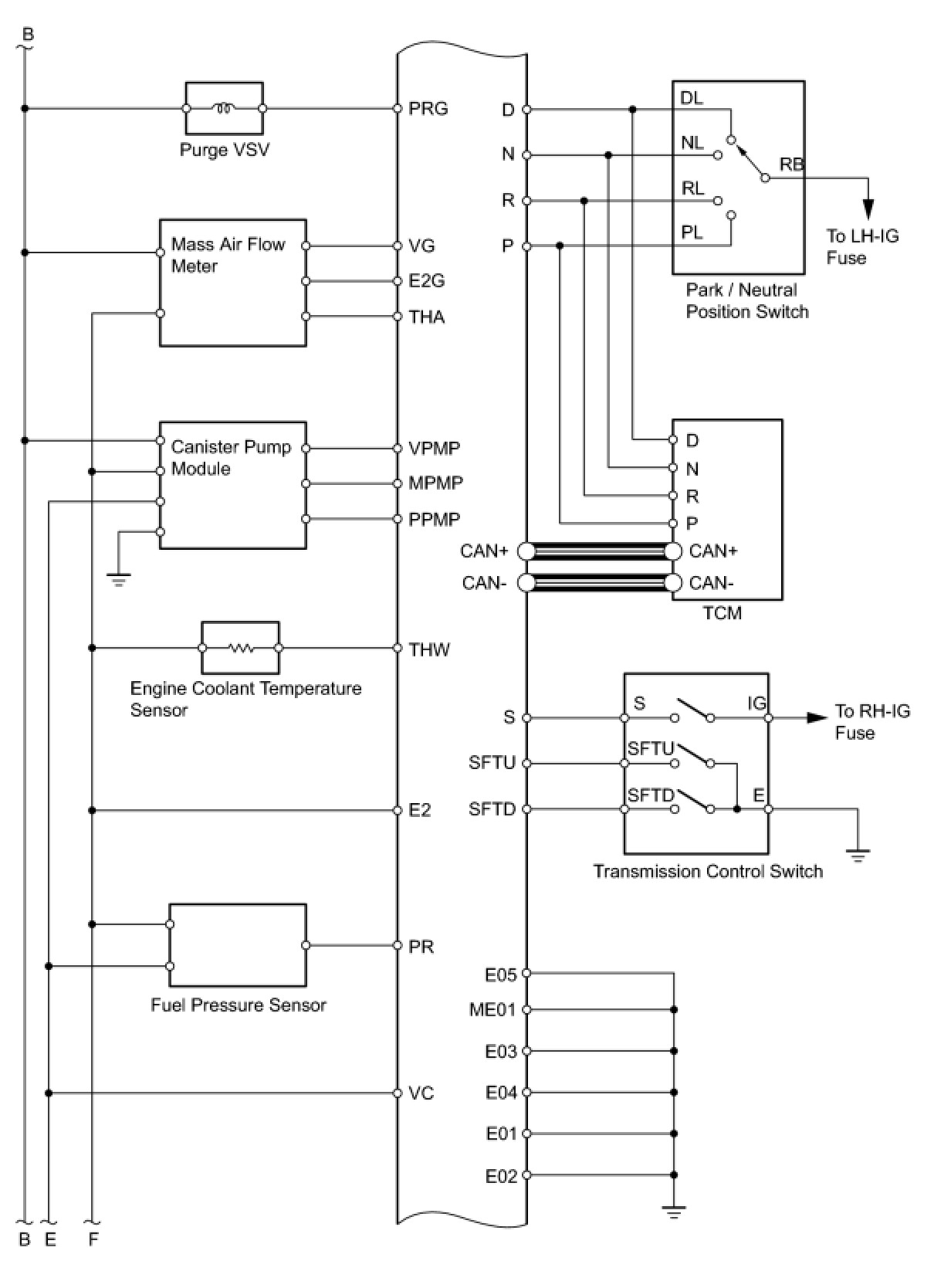

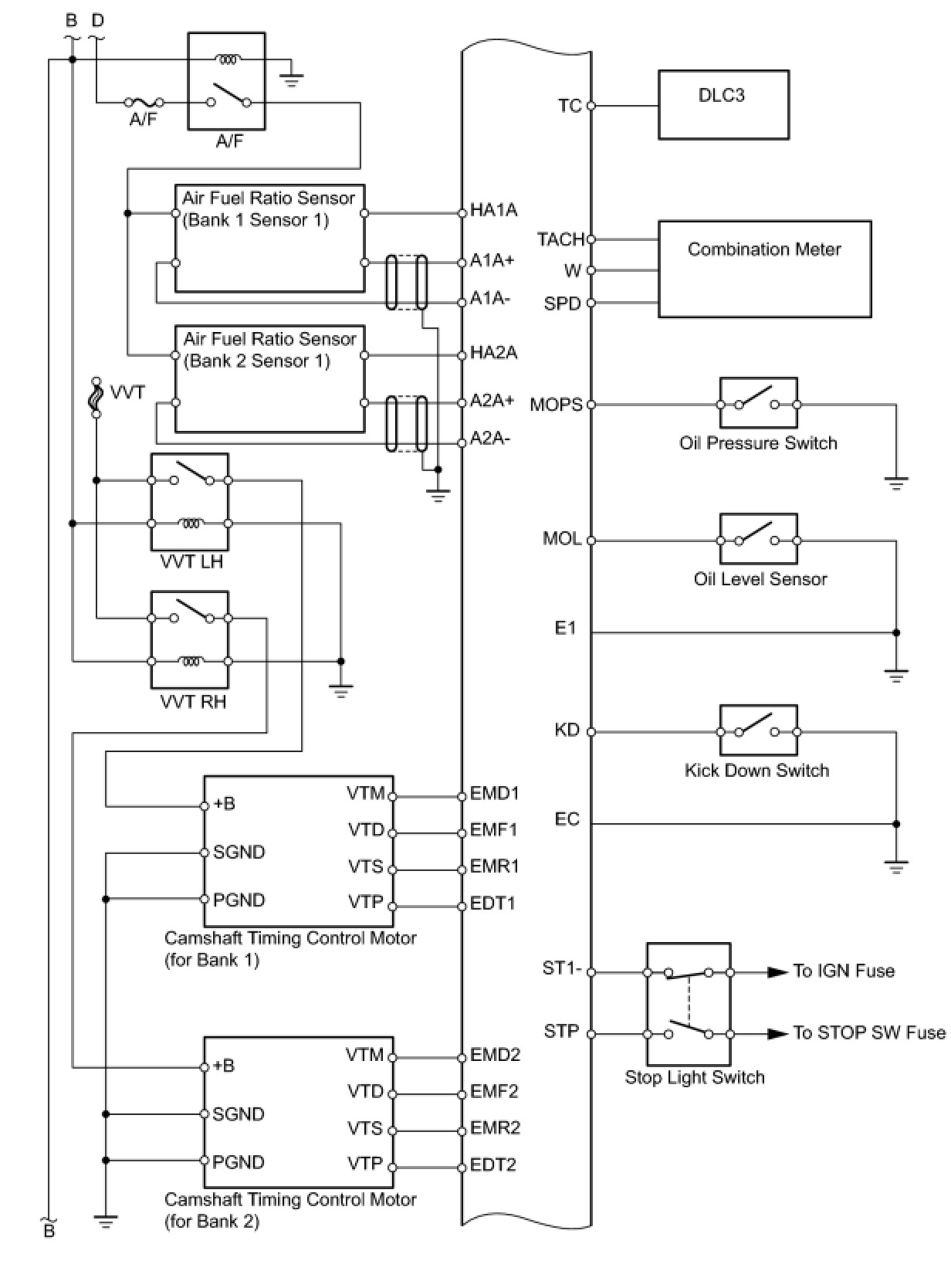

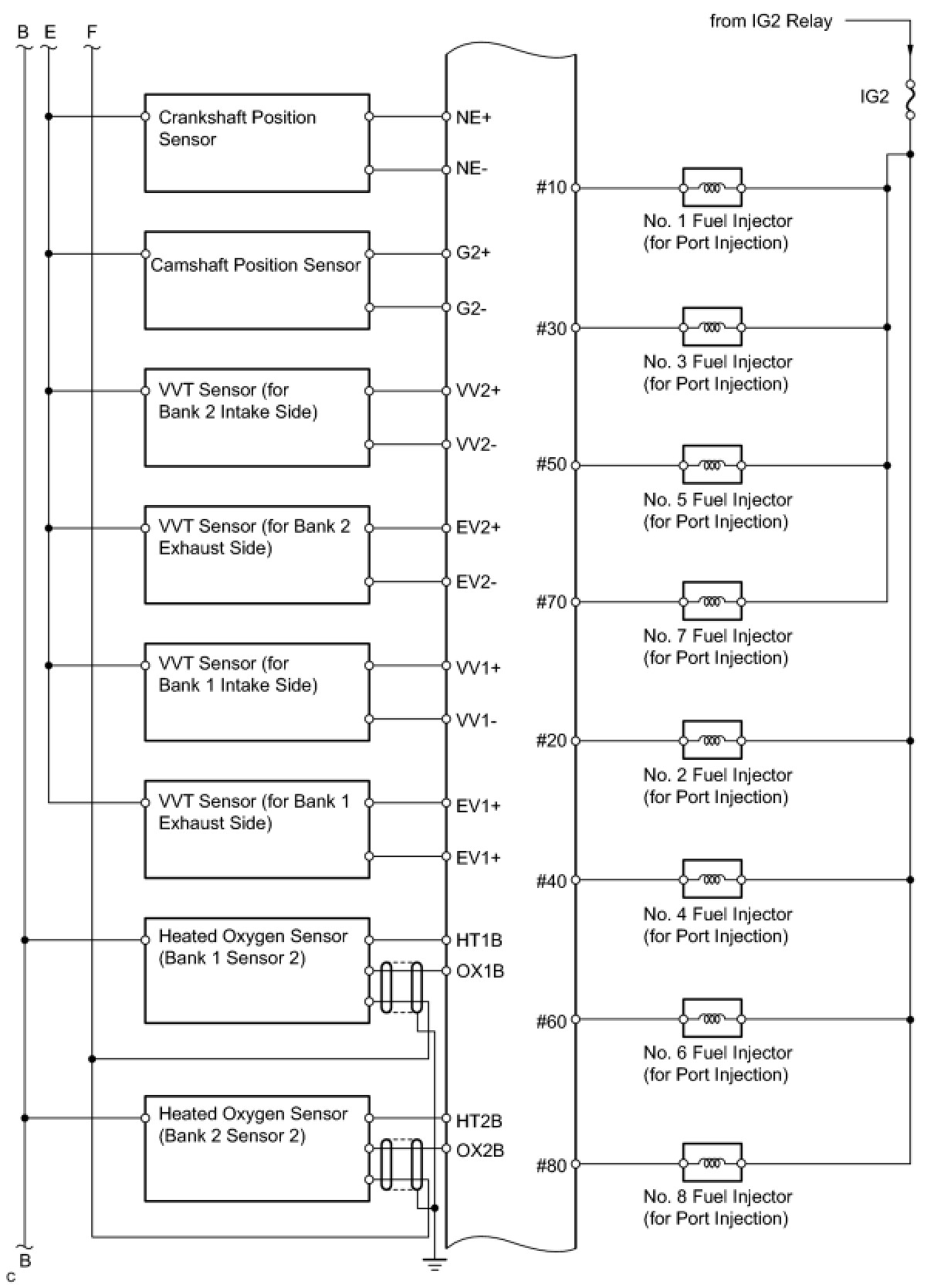

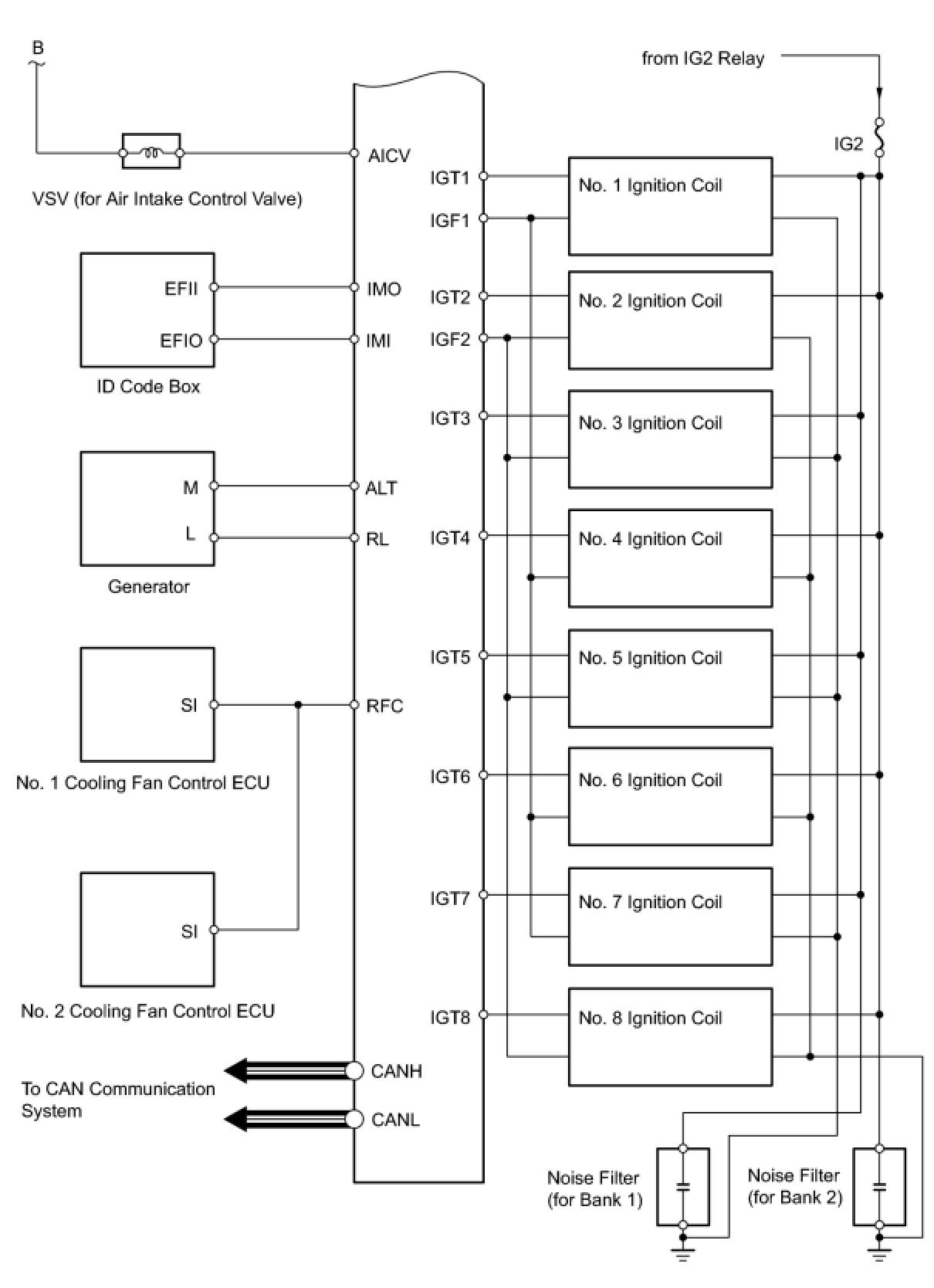

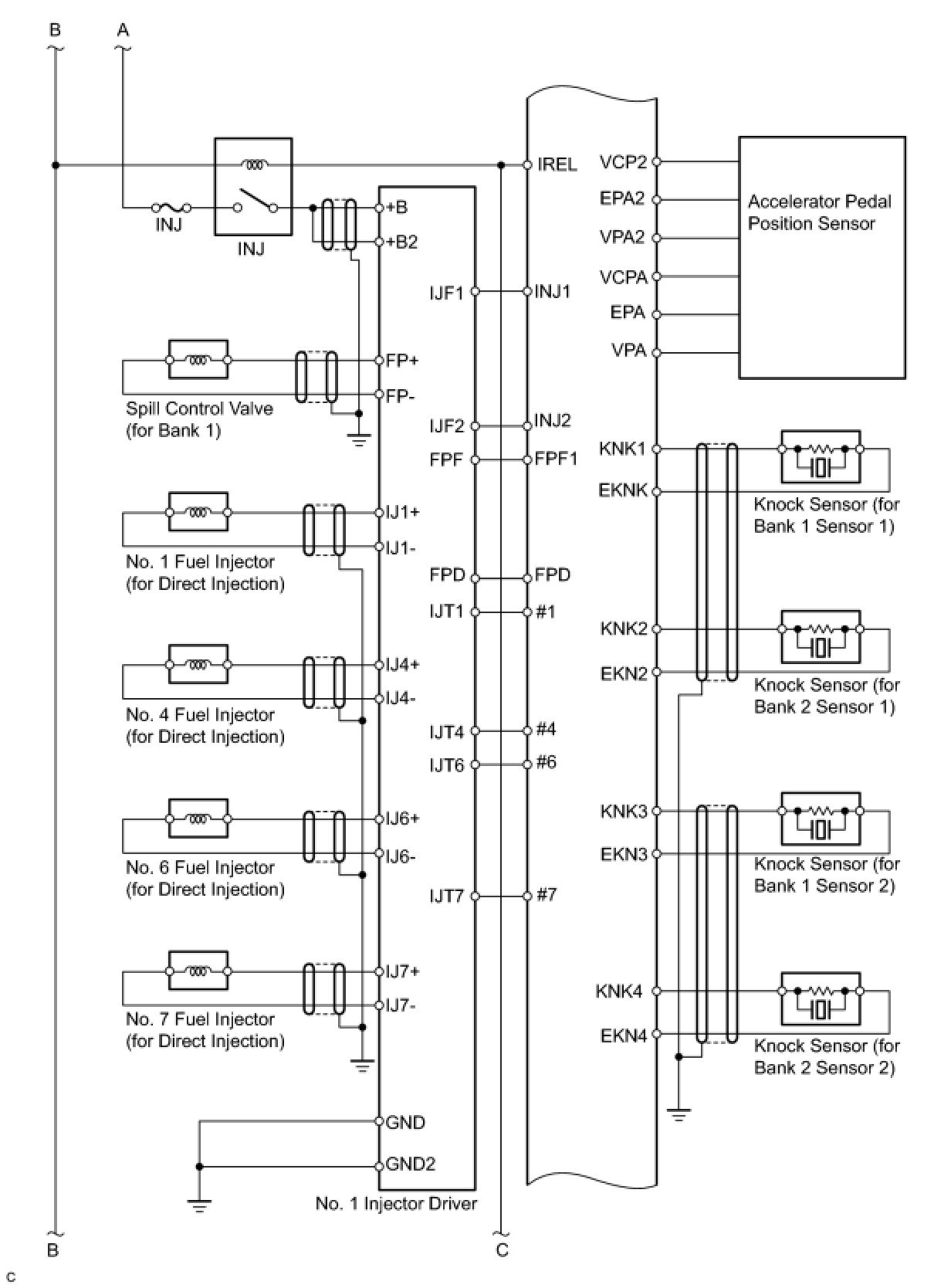

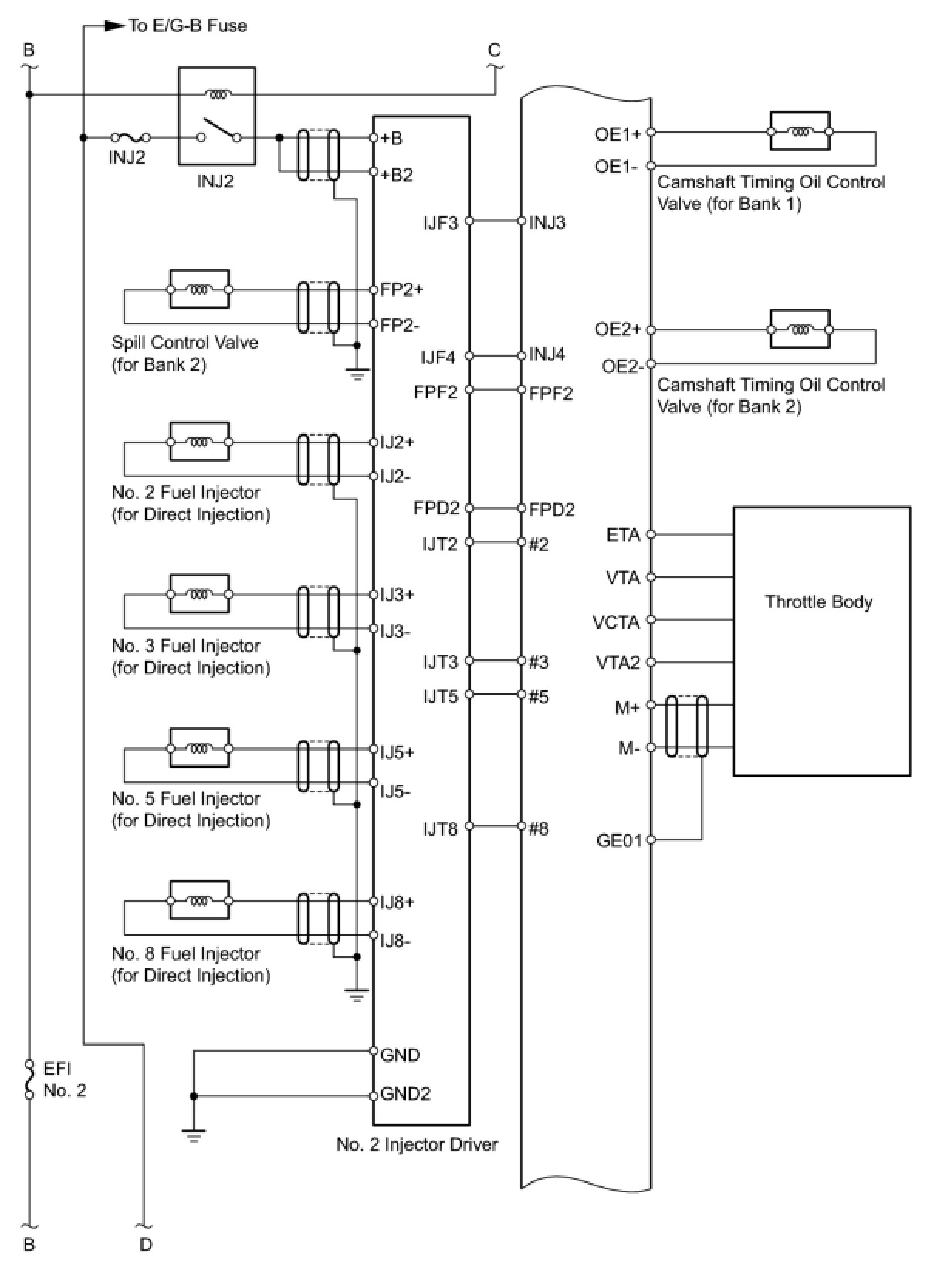

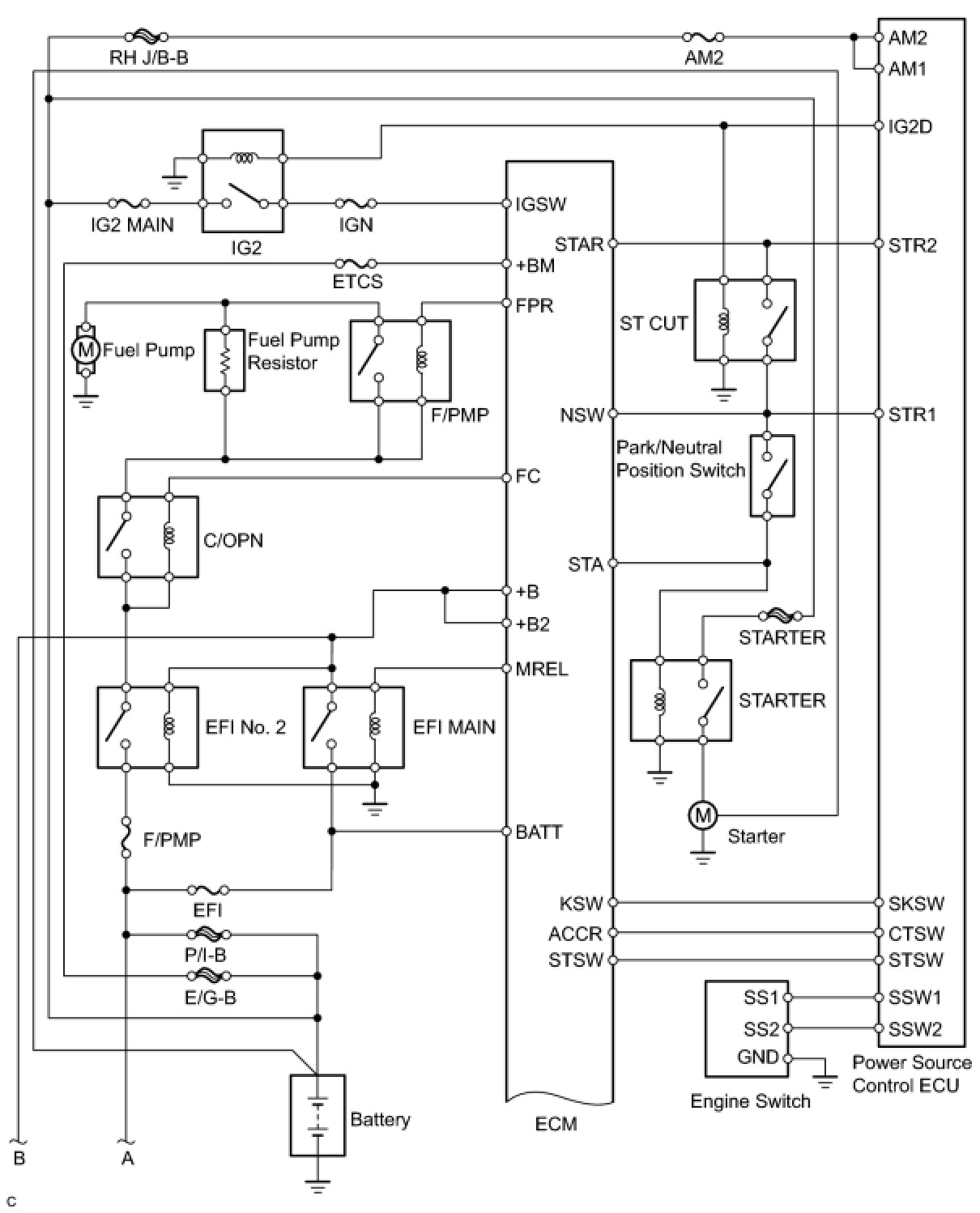

SYSTEM DIAGRAM
