Tire Pressure Warning Reset Switch

TIRE PRESSURE MONITORING: TIRE PRESSURE WARNING RESET SWITCH: INSPECTION

INSPECTION

1. INSPECT SATELLITE SWITCH

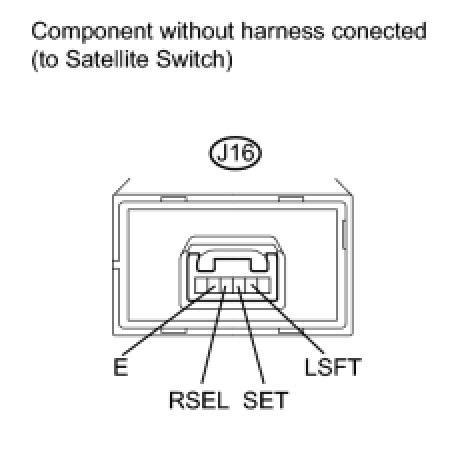

(a) Disconnect the connector from the satellite switch.

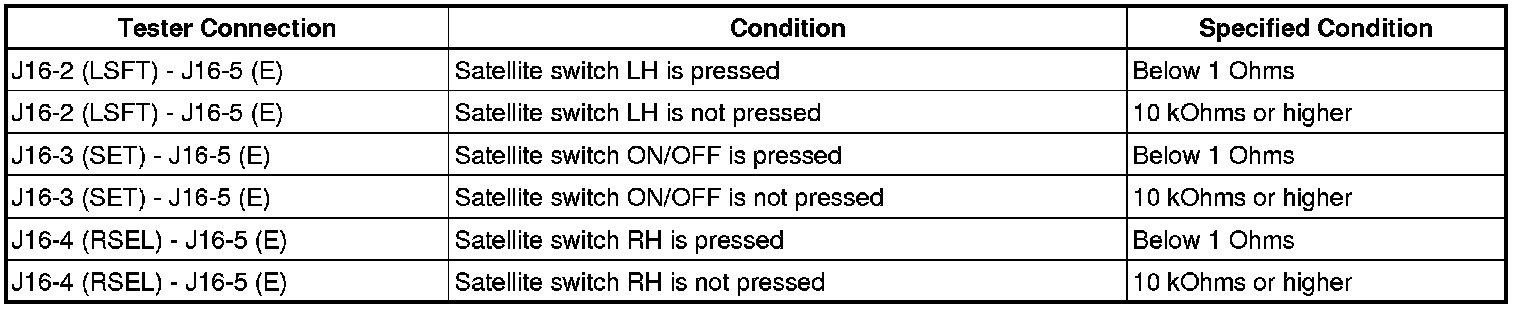

(b) Measure the resistance between the terminals according to the value(s) in the table below.
Standard resistance:





HINT: If the value is not as specified, replace the satellite switch.
