Removal

LIGHTING (INT): VANITY LIGHT: REMOVAL

REMOVAL

1. REMOVE ROOF HEADLINING ASSEMBLY
Removal
HINT: Refer to the "Remove Roof Headlining Assembly" for a detailed procedure.

2. REMOVE VANITY LIGHT ASSEMBLY

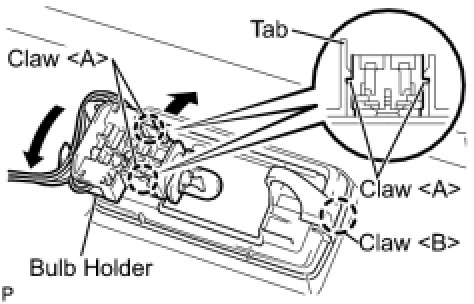

(a) Tilt the tab to disengage the 2 claws [A] and separate the bulb holder from the vanity light, as shown in the illustration.
(b) Disengage the claw [B] and remove the vanity light assembly.
