Exterior Lighting System

LIGHTING (EXT): LIGHTING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

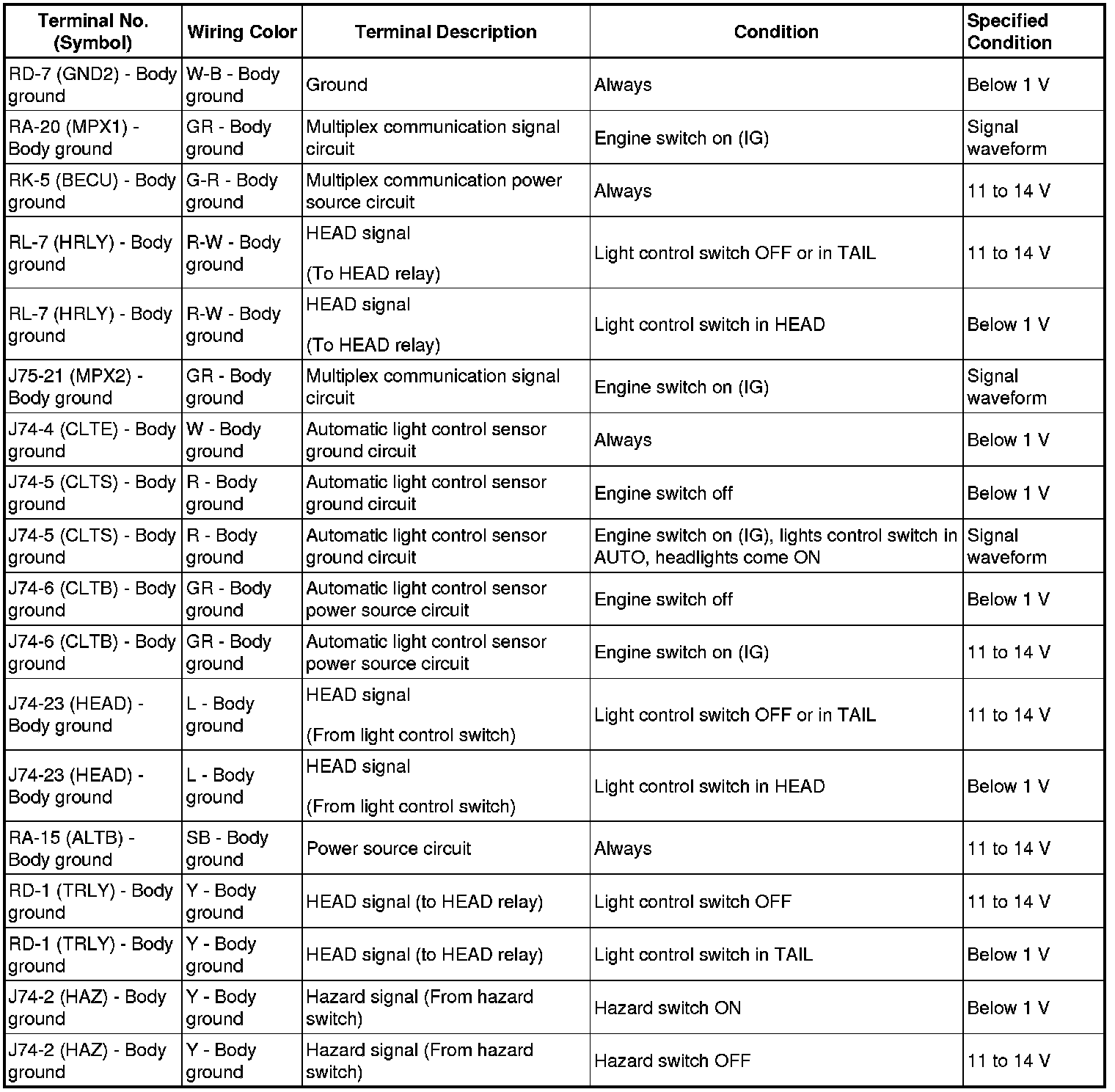

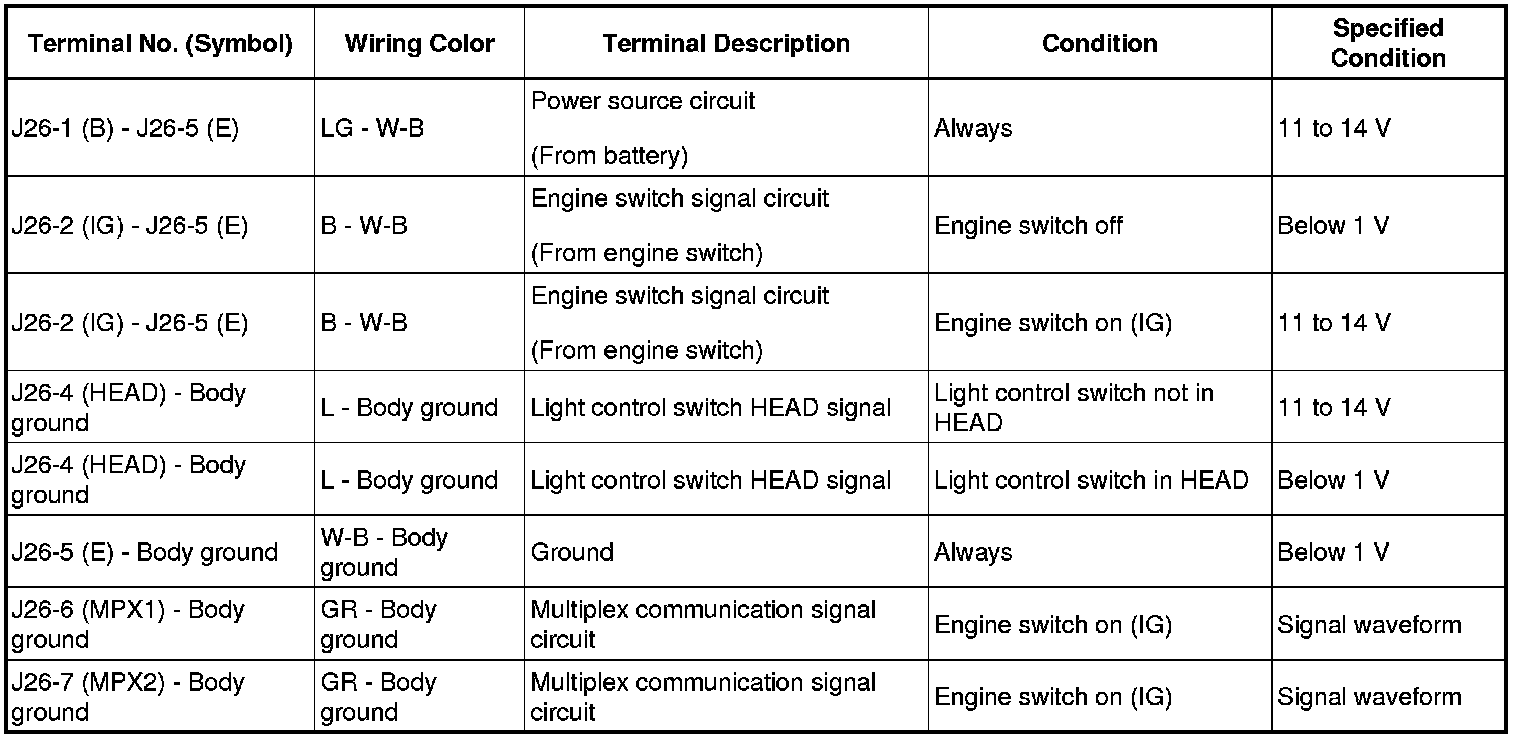

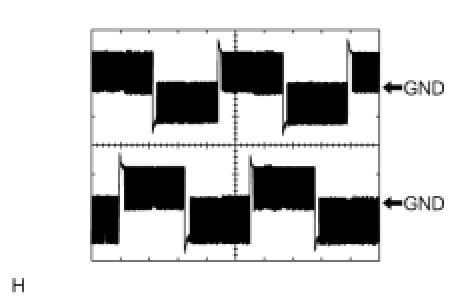

1. CHECK FRONT CONTROLLER (MULTIPLEX NETWORK BODY ECU)

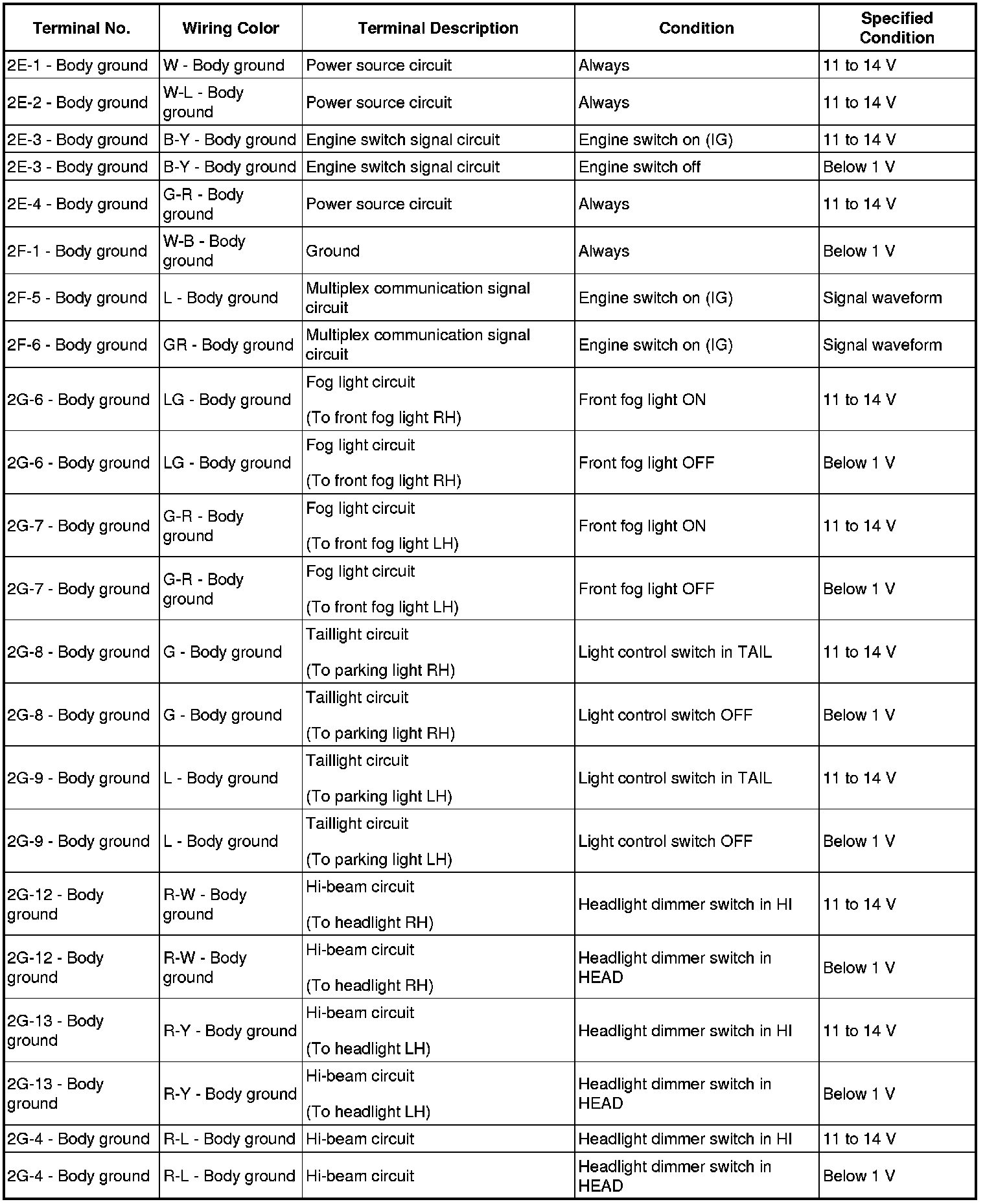

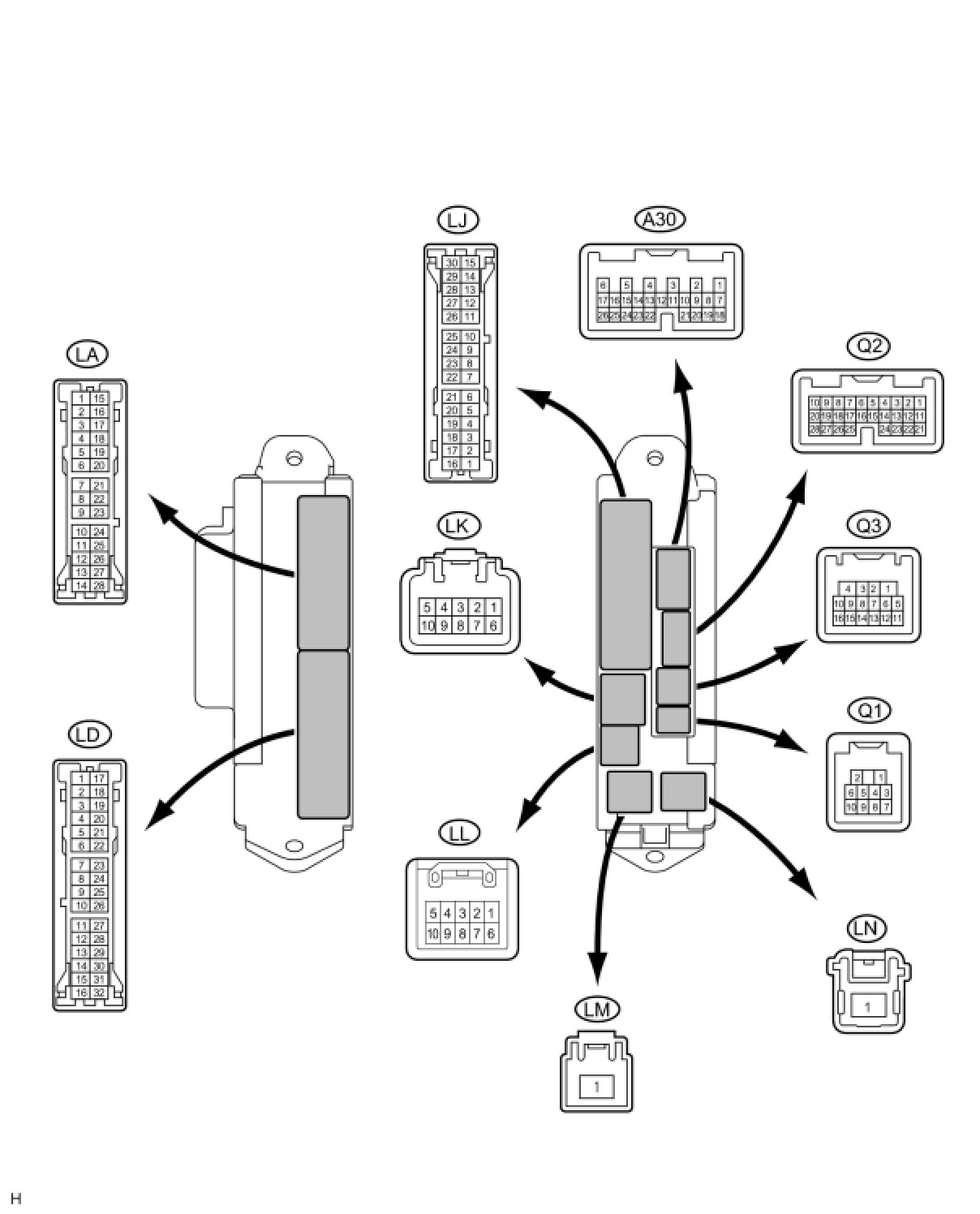

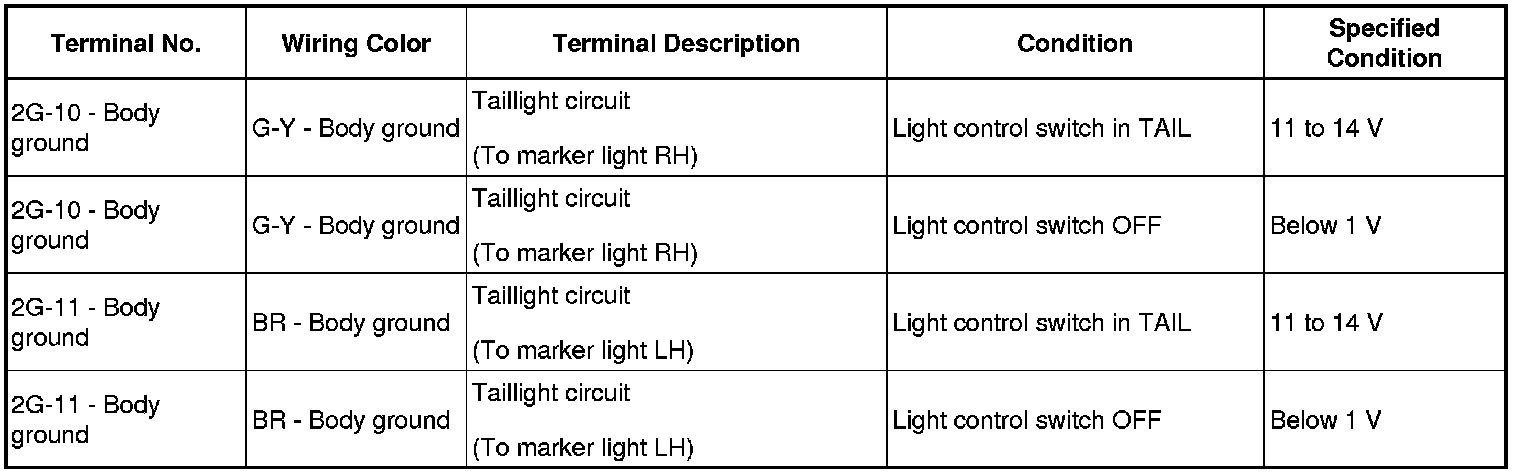

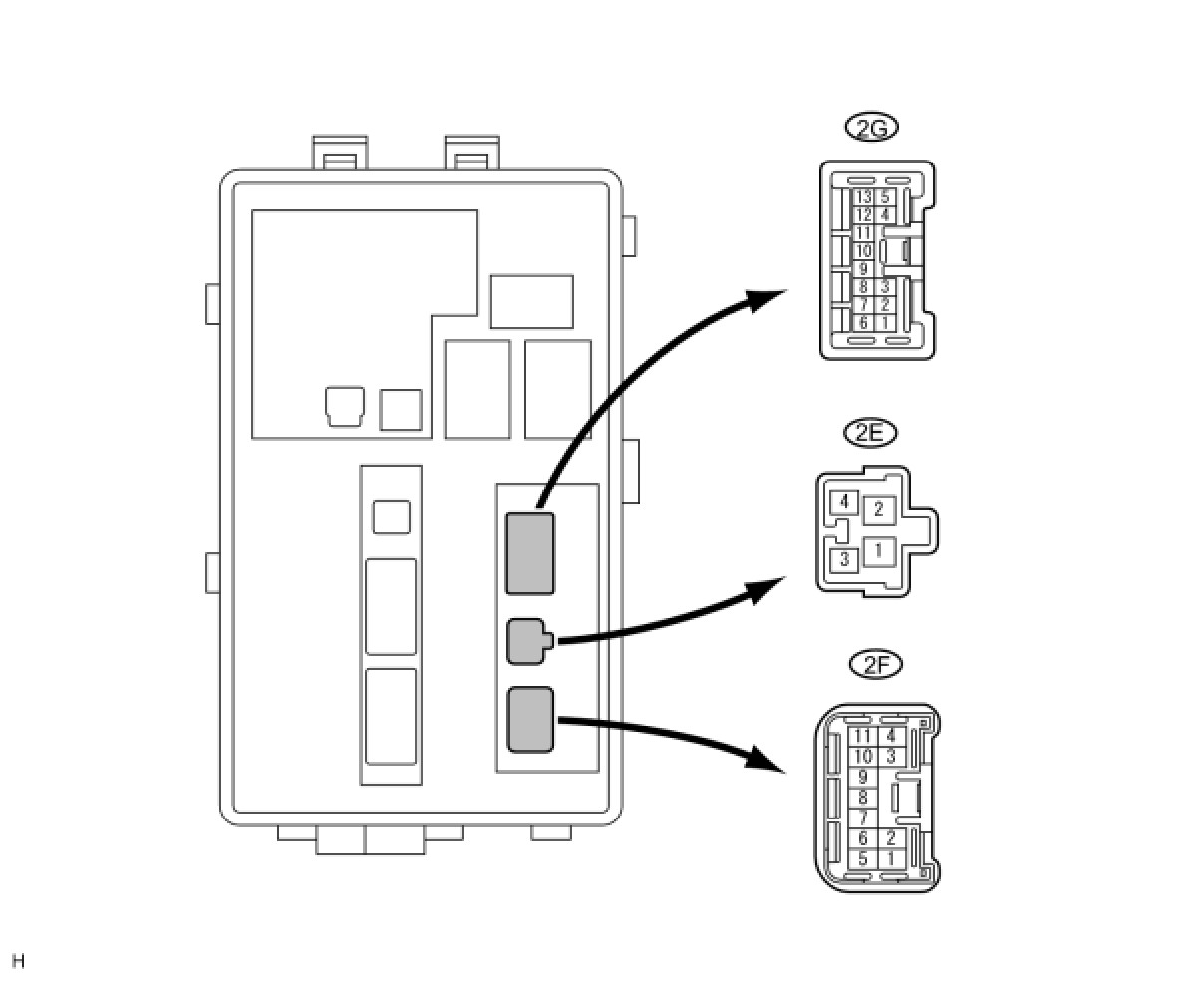

2. CHECK MAIN BODY ECU RH (COWL SIDE JUNCTION BLOCK RH)

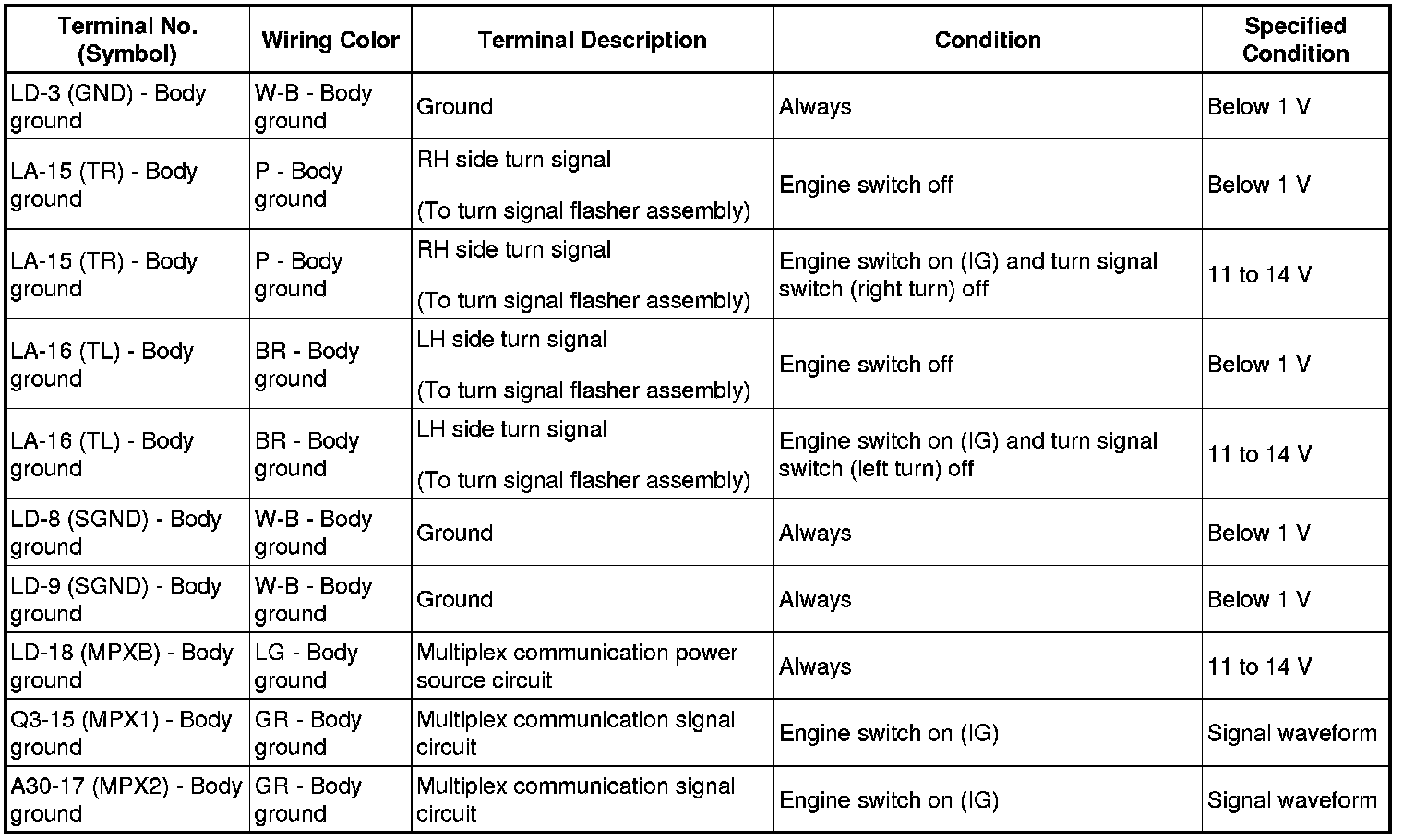

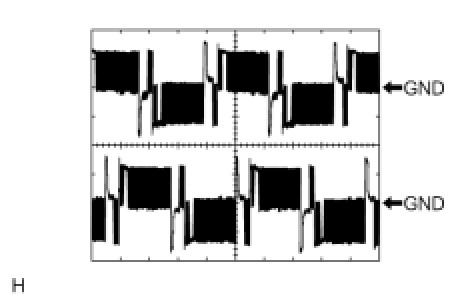

3. CHECK MAIN BODY ECU LH (COWL SIDE JUNCTION BLOCK LH)

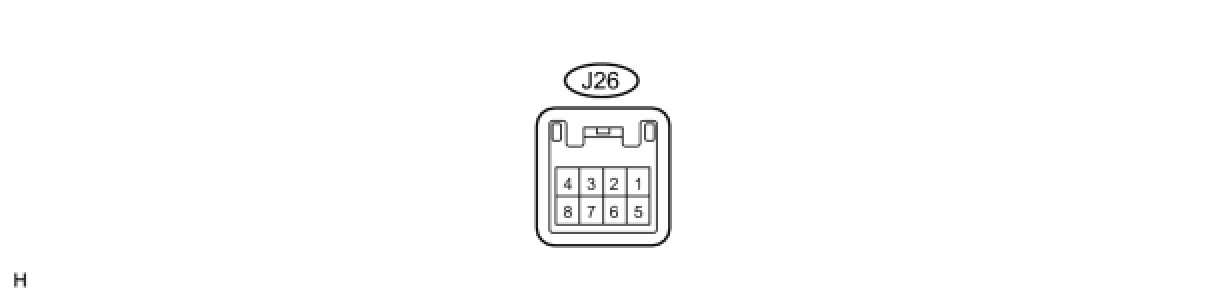

4. CHECK WINDSHIELD WIPER SWITCH ASSEMBLY

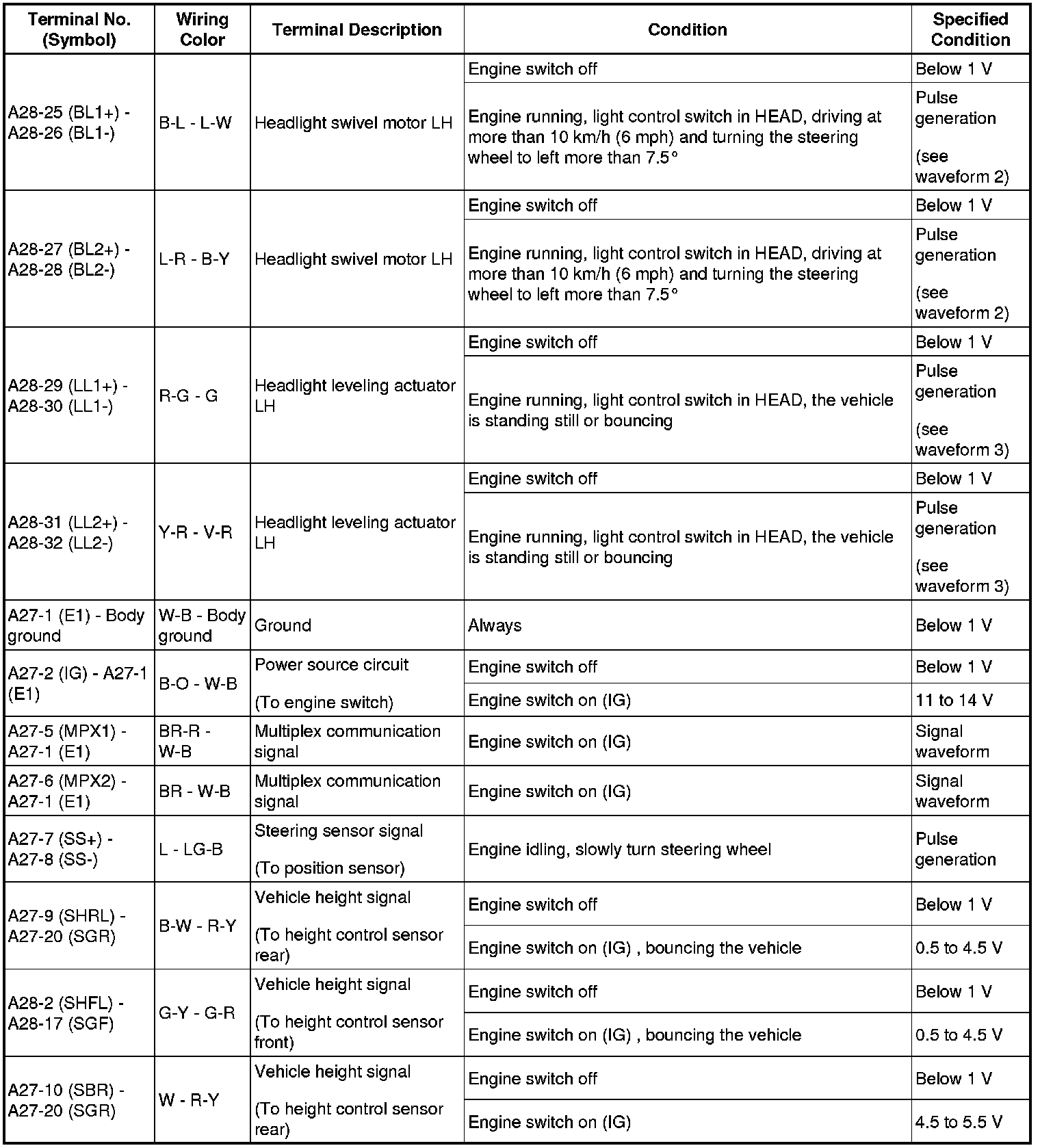

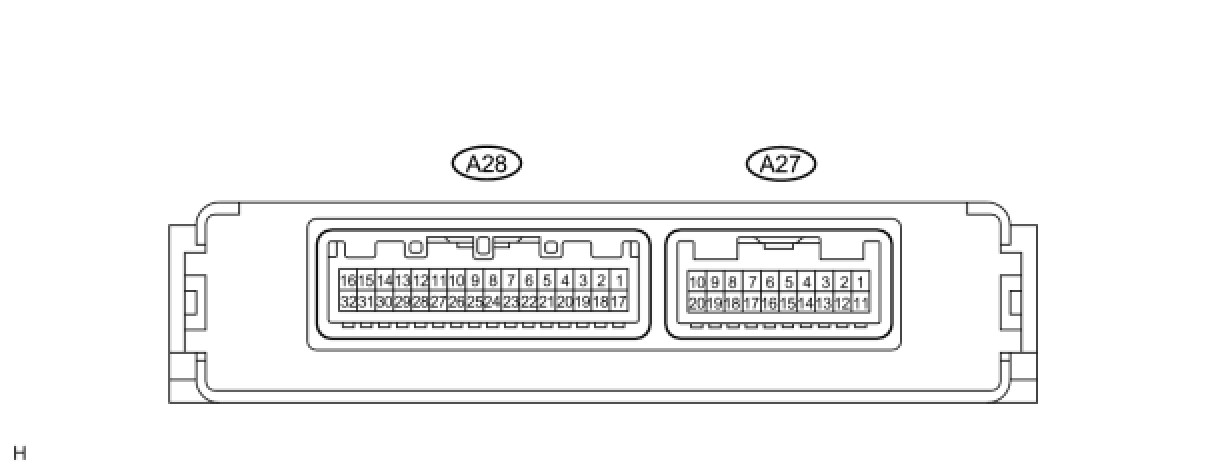

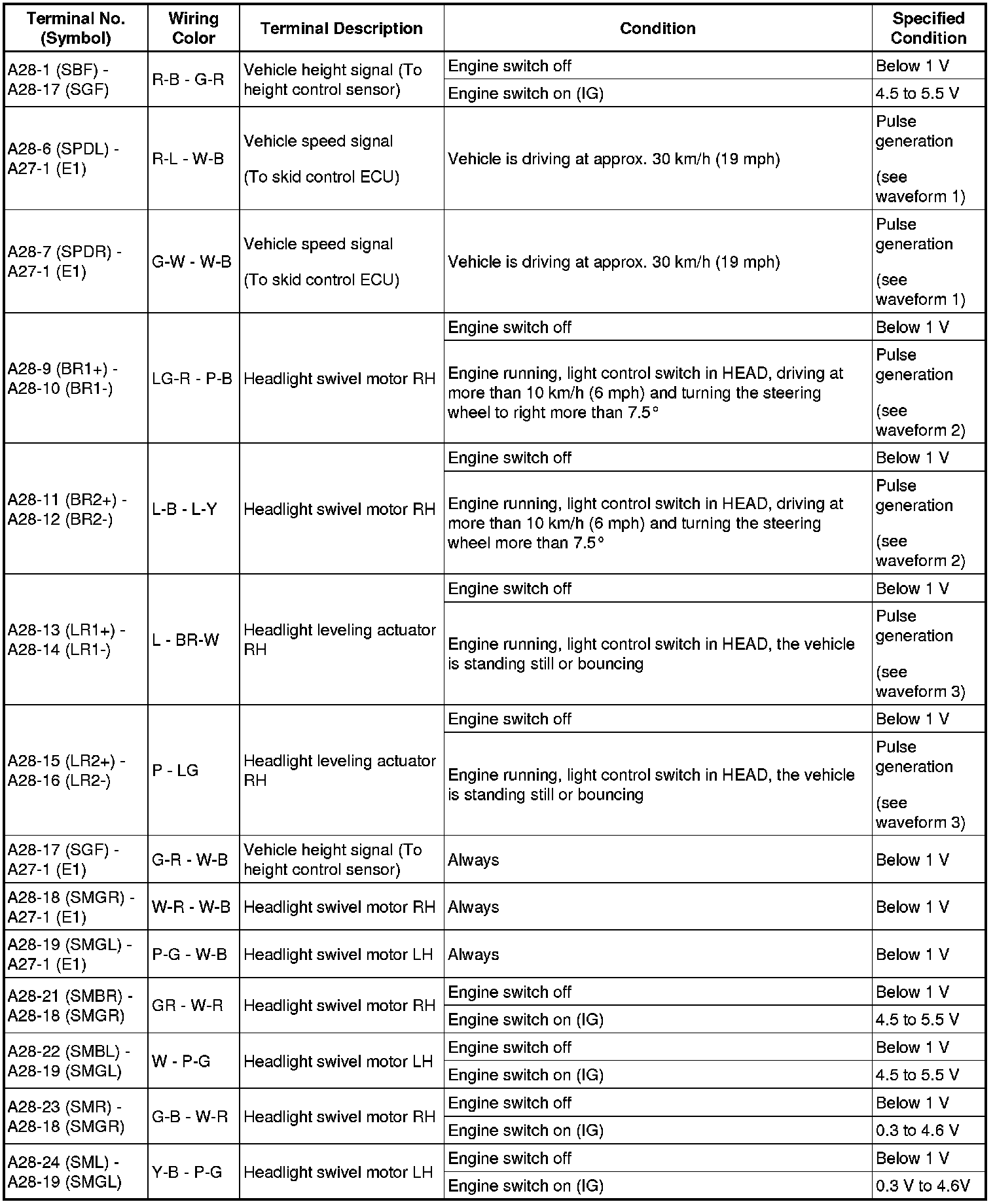

5. CHECK AFS ECU

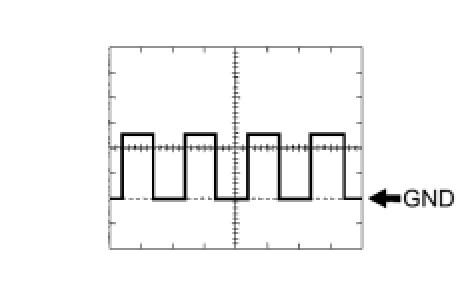

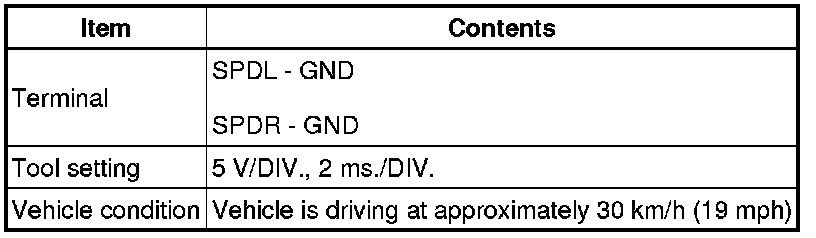

(a) Waveform 1

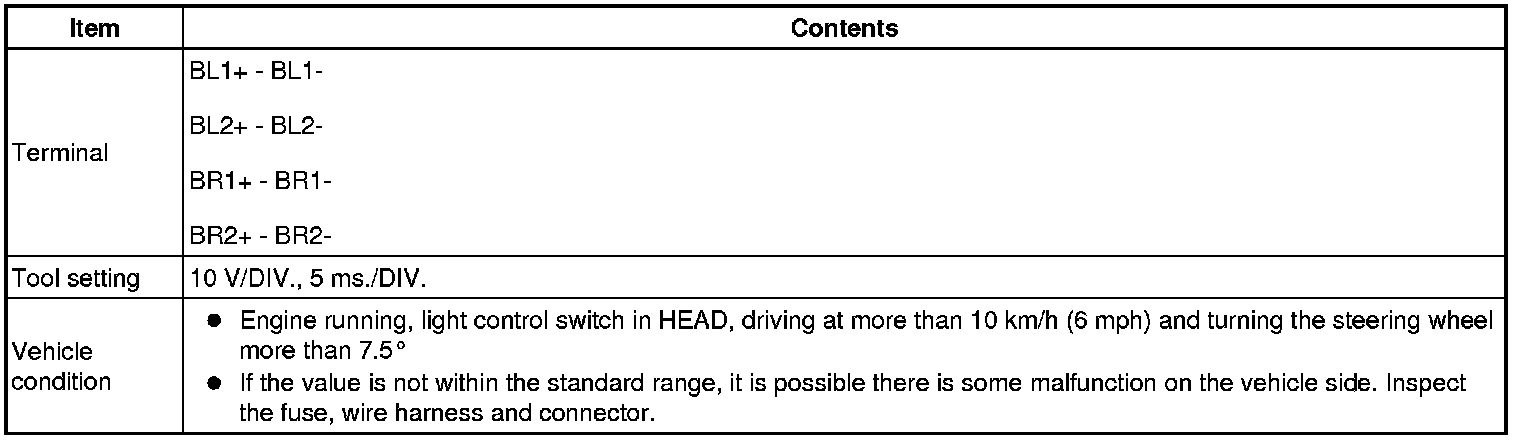

(b) Waveform 2

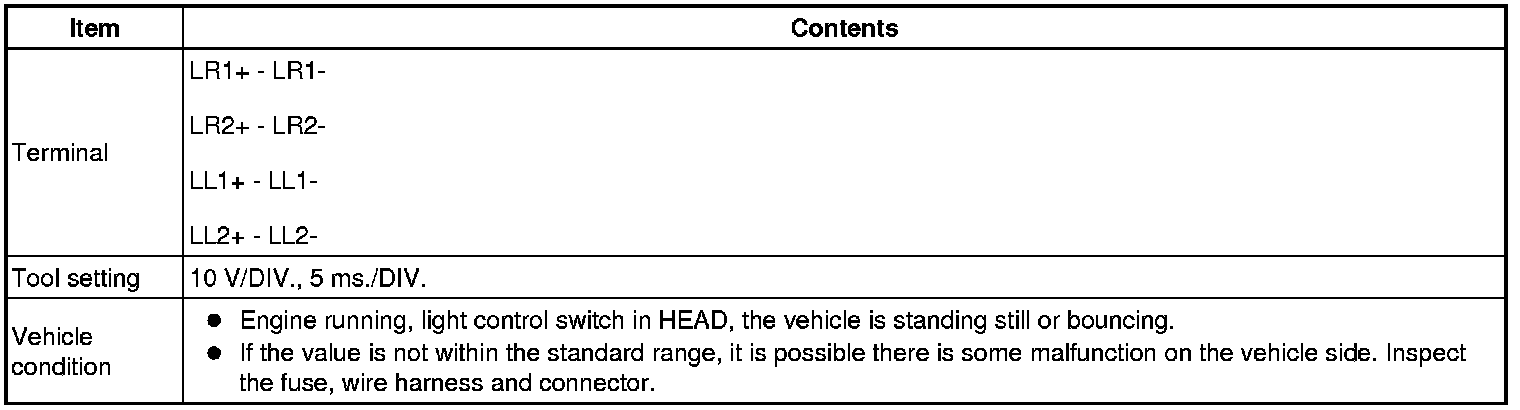

(c) Waveform 3
