Fail-Safe Chart

LIGHTING (EXT): LIGHTING SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

1. FAIL-SAFE
(a) Light control ECU

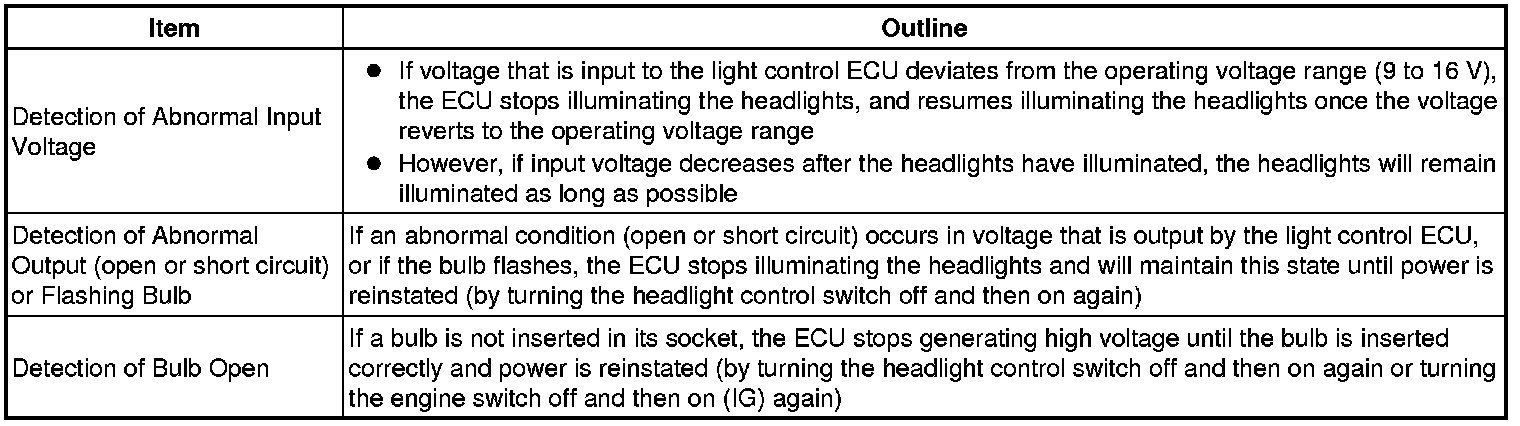

The light control ECU executes the fail-safe actions listed below in accordance with the item that has been detected.






(b) AFS ECU

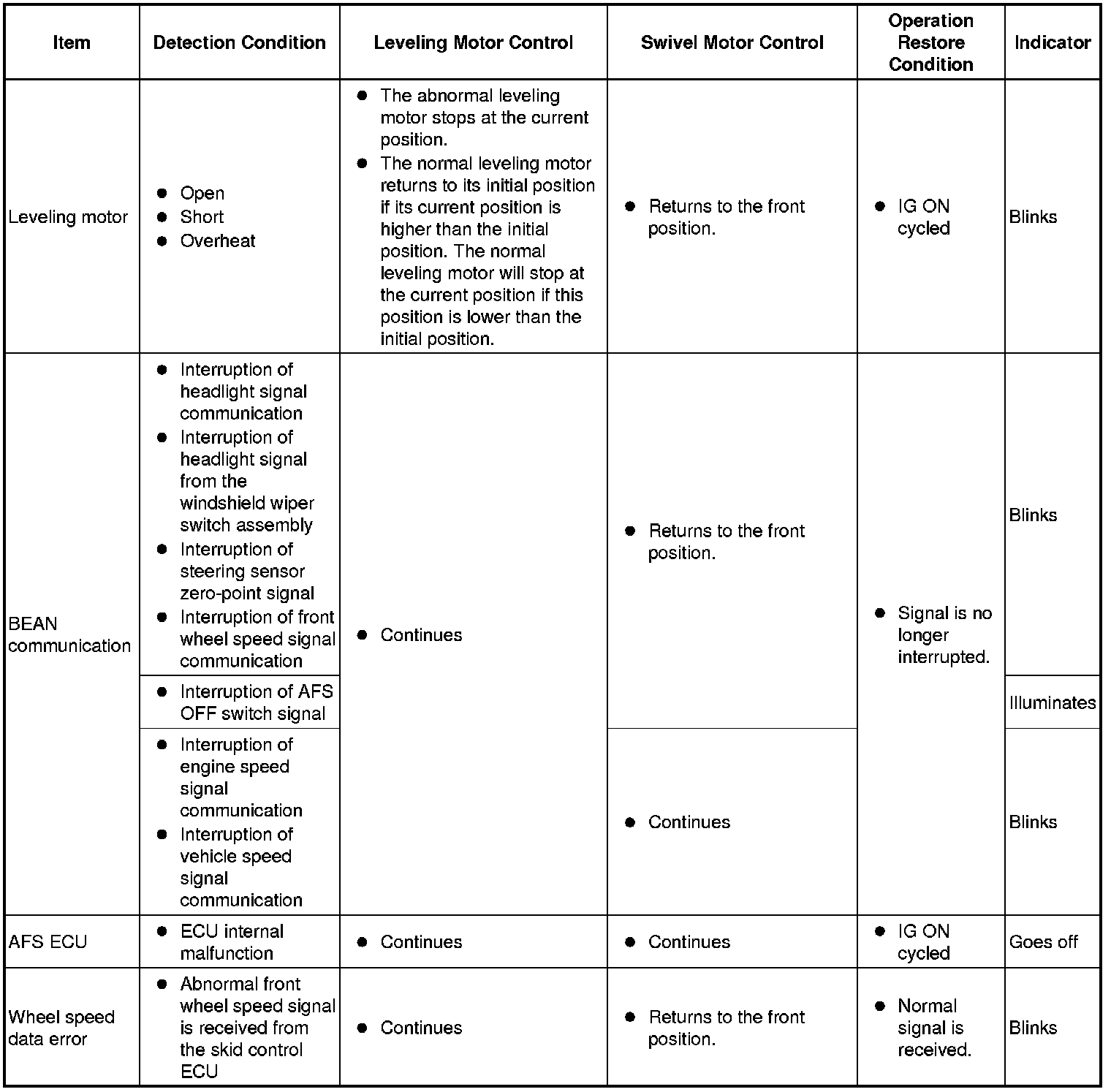

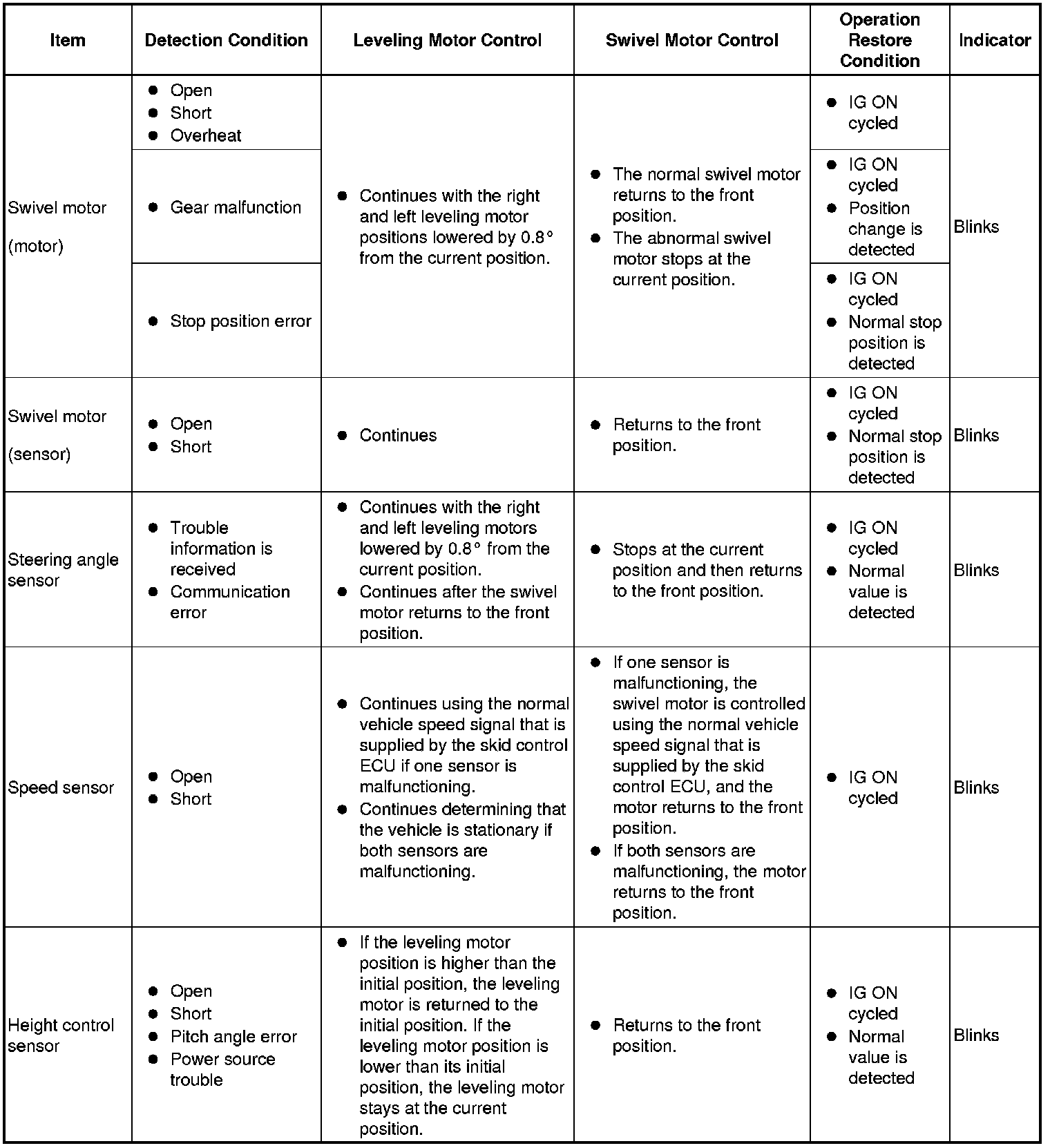

HINT: If a malfunction is detected, the headlight swivel ECU assembly (AFS ECU) performs fail-safe operation. Depending on the malfunction, the ECU flashes at 1 Hz intervals or illuminates the AFS OFF indicator in the combination meter assembly. Warning massages are also shown on the multi-information display.
