Reassembly

LIGHTING (EXT): REAR LIGHT ASSEMBLY: REASSEMBLY

REASSEMBLY

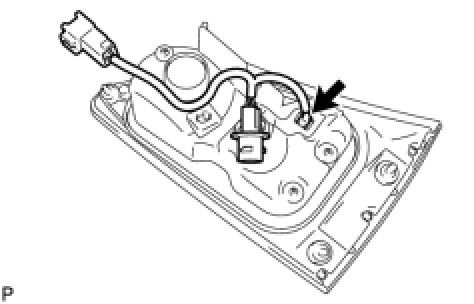

1. INSTALL REAR LIGHT SOCKET AND WIRE





(a) Connect the connector and install the rear light socket and wire.
2. INSTALL BACK UP LIGHT BULB
(a) Install the back up light bulb to the rear light socket and wire.

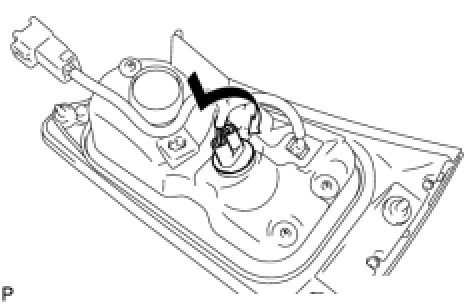

(b) Turn the back up light bulb and rear light socket and wire in the direction indicated by the arrow in the illustration and install them as a unit.

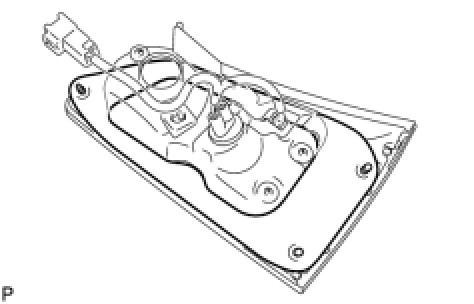

3. INSTALL REAR LIGHT GASKET





(a) Install a new rear light gasket.
