LIGHTING (EXT): AFS ECU: REMOVAL

REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal
2. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal
3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal
4. REMOVE AFS ECU

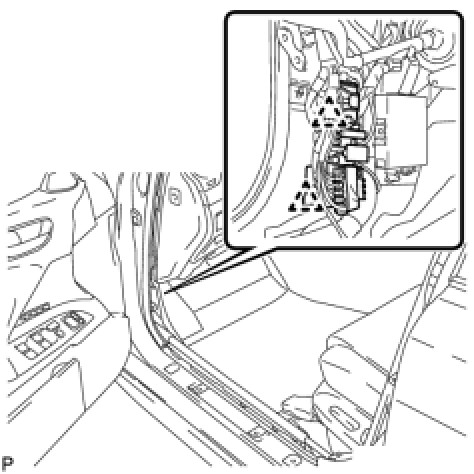

(a) Disengage the 2 clips and disconnect the connector holder.

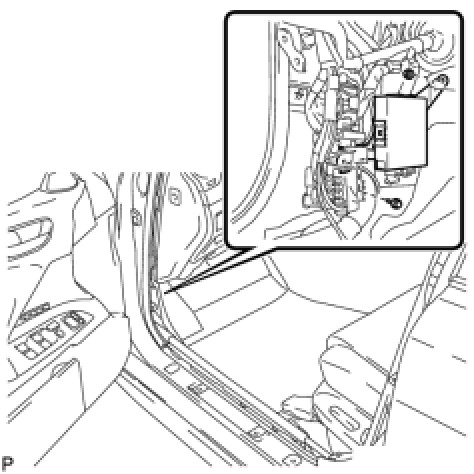

(b) Remove the bolt and nut.

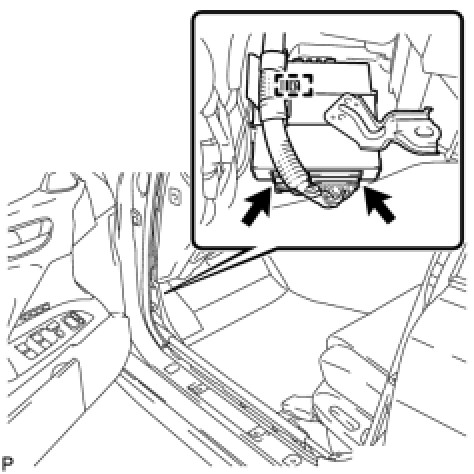

(c) Disconnect the connectors.
(d) Disengage the clamp and remove the AFS ECU.
