Removal








HORN: HIGH PITCHED HORN: REMOVAL

REMOVAL

1. REMOVE COOL AIR INTAKE DUCT SEAL Removal

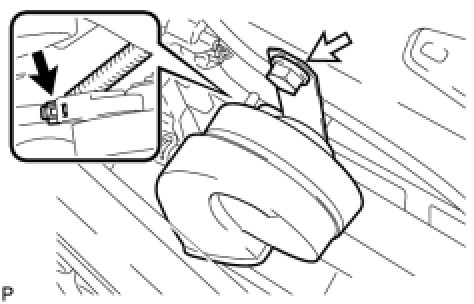

2. REMOVE HIGH PITCHED HORN ASSEMBLY





(a) Disconnect the connector.
(b) Remove the bolt and high pitched horn assembly.
