Reassembly








LIGHTING (EXT): FOG LIGHT ASSEMBLY: REASSEMBLY

REASSEMBLY

1. INSTALL FOG LIGHT BULB

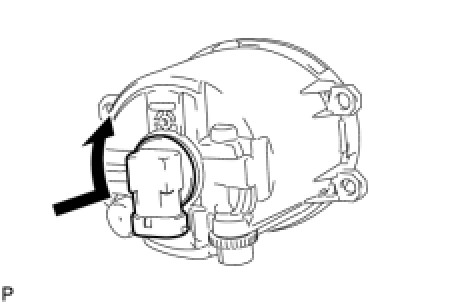

(a) Install the fog light bulb as shown in the illustration.
