Installation

LIGHTING (INT): REGISTER LIGHT: INSTALLATION

INSTALLATION

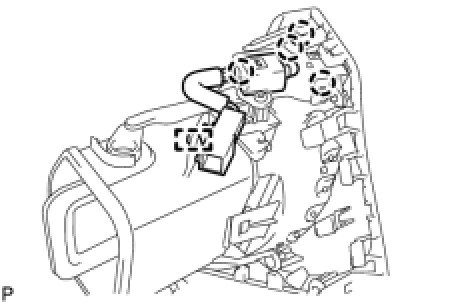

1. INSTALL INTERIOR ILLUMINATION LIGHT ASSEMBLY





(a) Engage the clamp and install the interior illumination light assembly.
(b) Engage the 4 claws.
2. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (for LH Side) Installation
3. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY (for RH Side) Installation
4. INSTALL SIDE INSTRUMENT PANEL Installation
5. INSTALL FRONT DOOR OPENING TRIM COVER Installation
6. INSTALL FRONT DOOR SCUFF PLATE Installation
7. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (for Center) Installation
