LIGHTING (INT): FOOTWELL LIGHT: INSTALLATION

INSTALLATION

1. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH

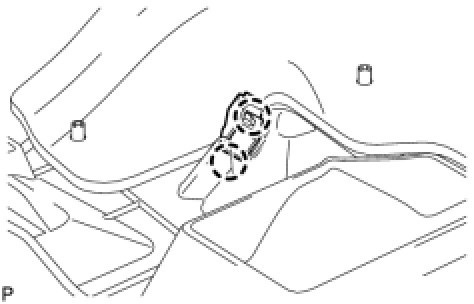

(a) Engage the 2 claws and install the No. 1 interior illumination light assembly RH.
2. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
3. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH

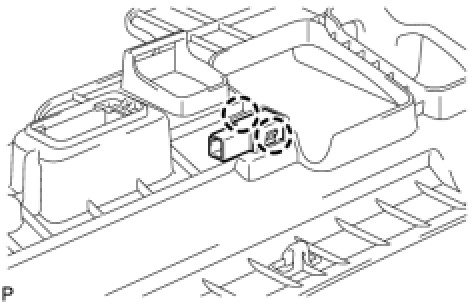

(a) Engage the 2 claws and install the No. 1 interior illumination light assembly LH.
4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
