Installation








LIGHTING (INT): DOOR COURTESY LIGHT: INSTALLATION

INSTALLATION

1. INSTALL COURTESY LIGHT ASSEMBLY
(a) Connect the connector.

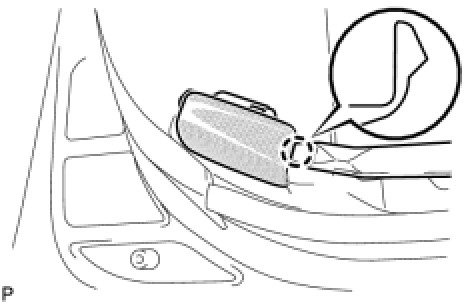

(b) Engage the claw and install the courtesy light assembly.
