LIGHTING (INT): GLOVE BOX LIGHT: INSTALLATION

INSTALLATION

1. INSTALL GLOVE BOX LIGHT ASSEMBLY

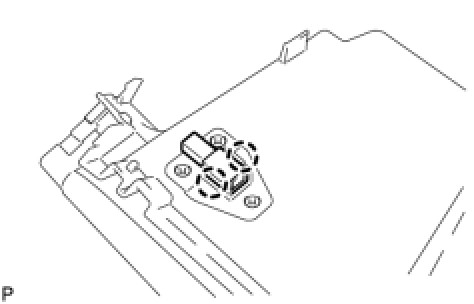

(a) Engage the 2 claws and install the glove box light assembly.
2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation
3. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation
4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
5. INSTALL SIDE INSTRUMENT PANEL RH Installation
6. INSTALL FRONT DOOR OPENING TRIM COVER RH Installation
7. INSTALL FRONT DOOR SCUFF PLATE RH
HINT: Use the same procedure for the RH side and the LH side Installation.

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
Some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSPECT SRS WARNING LIGHT
(a) Inspect the SRS warning light Diagnosis System.
