Center Mounted Brake Lamp: Testing and Inspection

LIGHTING (EXT): HIGH MOUNTED STOP LIGHT ASSEMBLY: INSPECTION

INSPECTION

1. INSPECT CENTER STOP LIGHT SET

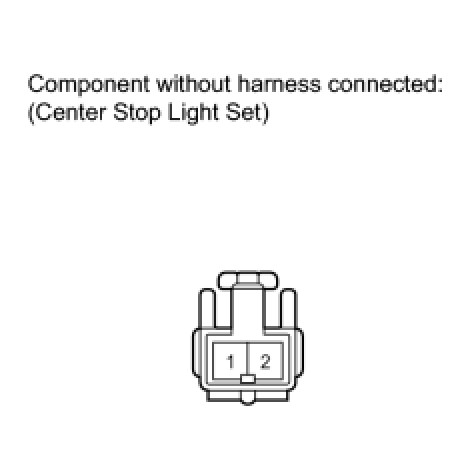

(a) Connect a positive (+) lead from the battery to terminal 2 and a negative (-) lead to terminal 1.
(b) Check that the light comes on.
OK:
The light comes on.
If the result is not as specified, replace the center stop light set.
